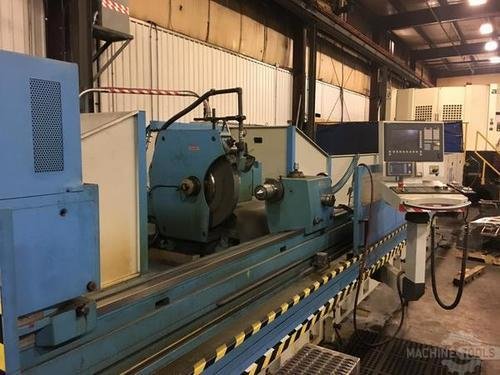

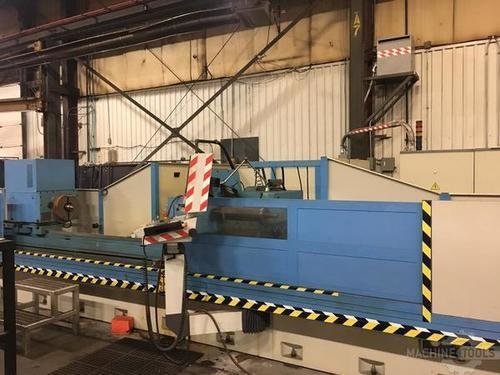

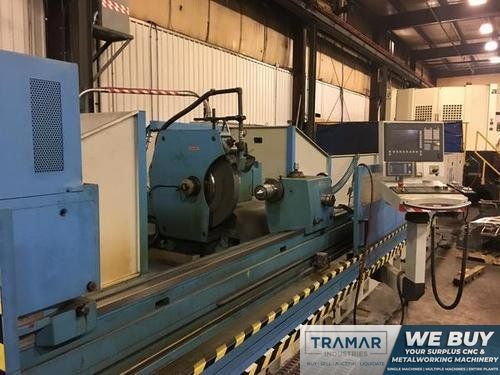

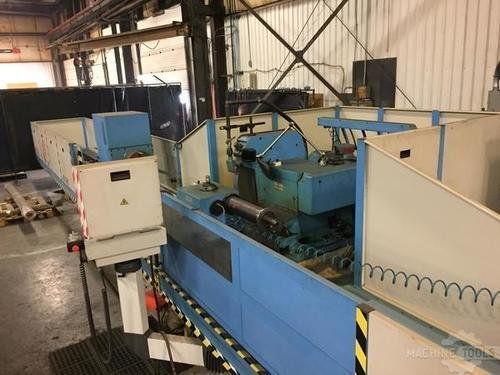

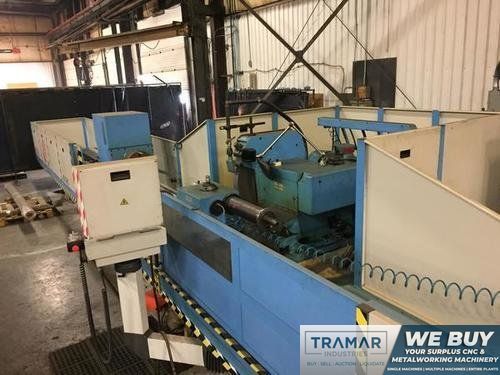

Designed for Traverse and Plunge Cut Grinding on Rotating Cylindrical and Conical Surfaces as well as Face Grinding
Year 2010

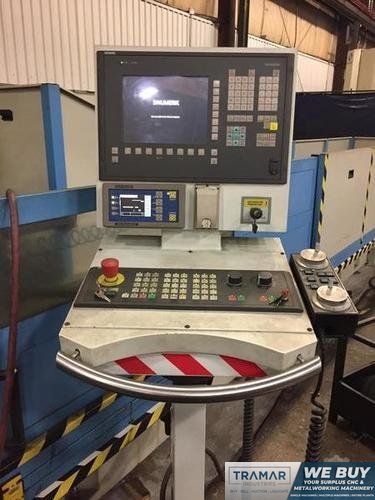

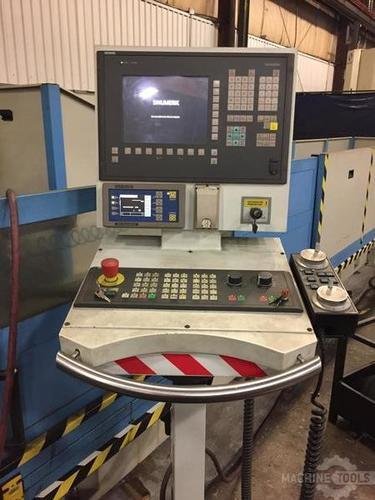

Control Siemens Sinumerik 840D
Wheelhead (Angle/Straight/Universal) Universal
Wheel Size (Dia/Bore/Width) 29.5" x 12" x 3.9"
Swing 24.8"
Center Distance 197"
Minimum Programmable Infeed 0.0001/mm
Minimum Programmable Table Feeds (x) axis 0.0001mm
(z) axis 0.005mm
Wheelhead Swivel +10°/-30°
Workhead Swivel 9°
Workhead Speed 8-156 RPM
Tailstock Taper MT6
Spindle Motor 28 Horsepower (Wheelhead)
10 Horsepower (Workhead)
Max Load Between Centers 5,511 Lbs

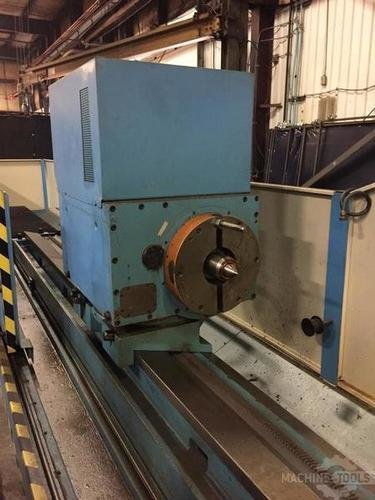

Workhead Mount A2-6
Machine Dimensions 560"l x 150"w
Machine Weight 40,700 Lbs
Equipped With:
(6) Steady Rests
Wheel Balancer
Grinding Wheel Dresser (on Tailstock)
Manual Pulse Generated Handwheel
Miscellaneous Wheels, Arbors & Centers

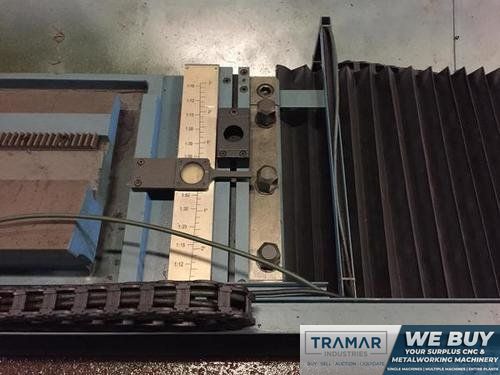

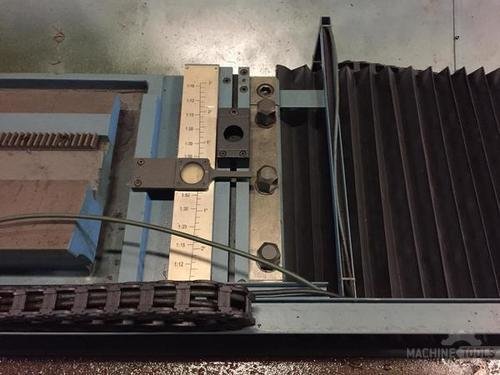

Indication of Table Swivelling

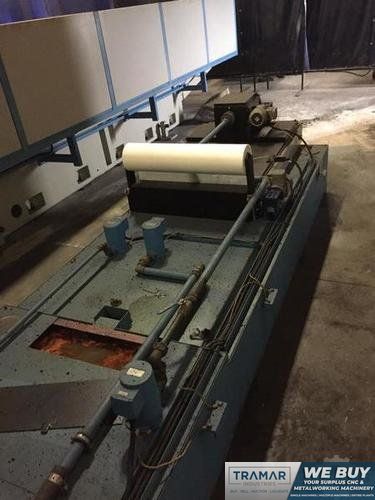

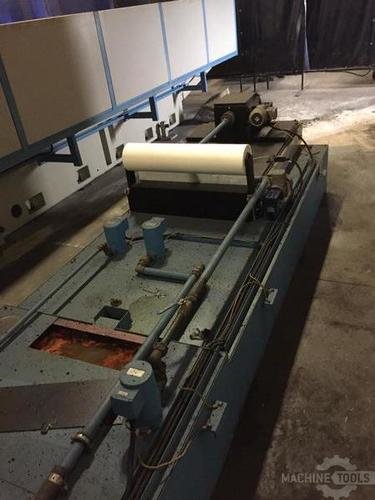

Coolant Tank w/Paper Filtration and Magnetic Belt
Foot Pedal
Manuals
