Tornos Deco 20A - Lathes, CNC, Automatic, Swiss Type

Solicitar presupuesto
Compartir Máquina
Especificaciones Imprimir especificaciones
Modelo: Deco 20A
Año: 2008
Número de Inventario: 14476
Características Destacadas:
Thread whirler

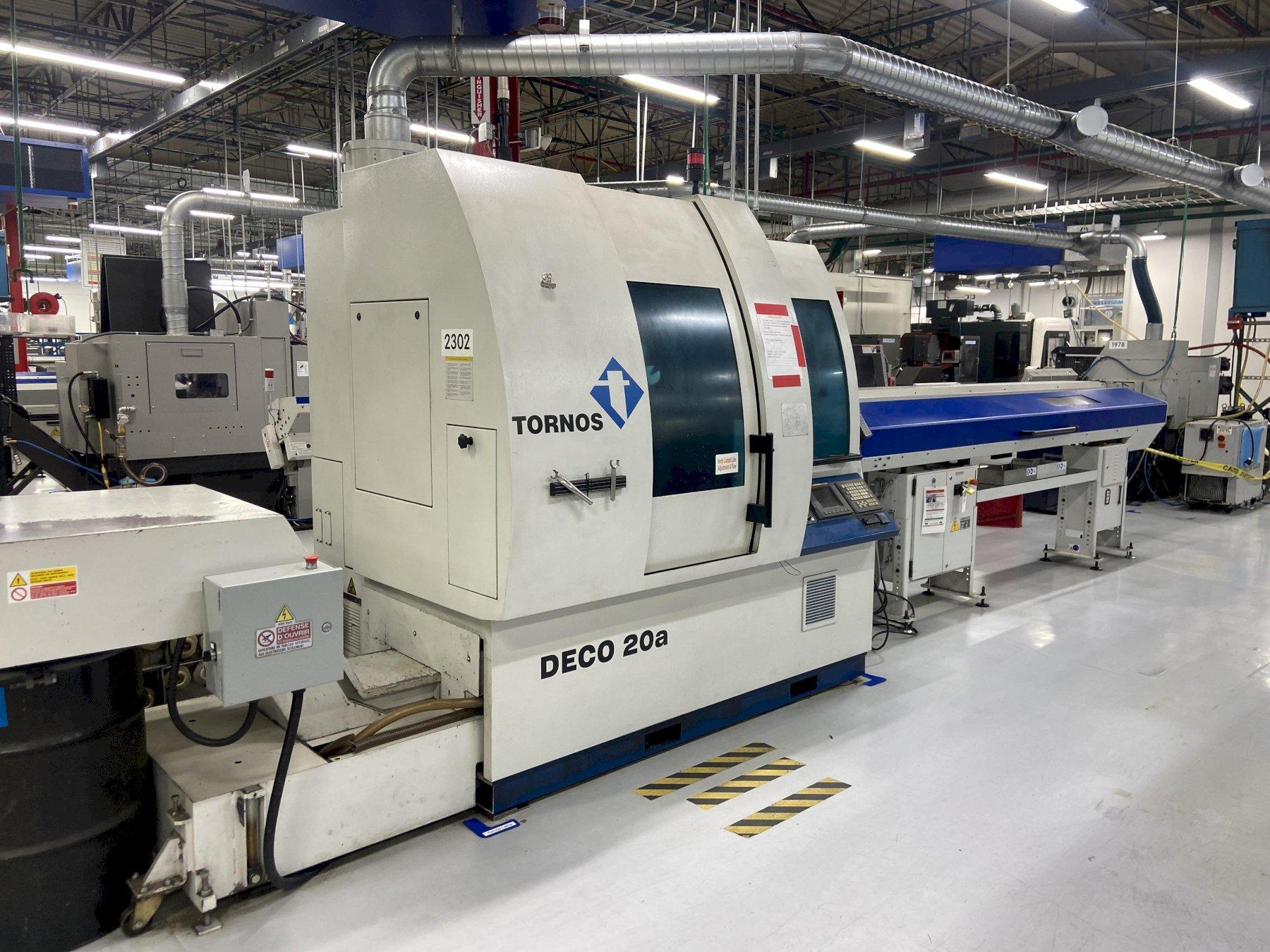

Tornos Deco 20A Used CNC Swiss Lathe For Sale - 2008
Especificaciones
Año
2008

Equipado con:

Max bar diameters: Ø 0.787 inches (1.0 inches)
Max length of workpiece (varies with guide bush, one clamping): 7.874 inches
Programmable spindle speed: 100 – 10000 rpm
Spindle index increments: 0.1 degree
Max output of motor: 7.37 horsepower (10.04 horsepower)
Max number of tools: 2 x 5
Tool section: 0.63 x 0.63 inches
Max number of cross drills, cross milling cutters: 4 + 2
Programmable rotation speeds: 100 – 8000 rpm
Max output of motor: 2.01 horsepower (2.94 horsepower)
END ATTACHMENT (COMBINED ATTACHMENT) (X3/Y3)

Max number of end tools (stationary or revolving): 4
Spindle speeds: 100 – 6000 rpm
Max output of motor: 2.01 horsepower (2.94 horsepower)
COUNTER SPINDLE AND COUNTER OPERATIONS (X4/Y4/Z4) (+C4 AS OPTION)

Max clamping diameter: 0.787 inches (1.0 inches)
Max workpiece length: 7.874 inches
Programmable spindle speed: 100 – 10000 rpm
Spindle index increments (option): 0.1 degree
Maximum power of the counter spindle: 1.48 horsepower (4.99 horsepower)
Max number of counter operations: 7
Fixed and driven spindles: 7
Programmable spindle speeds: 100 – 8000 rpm
Max output of motor: 2.01 horsepower (2.94 horsepower)
