Year 2000
Serial Number 0082

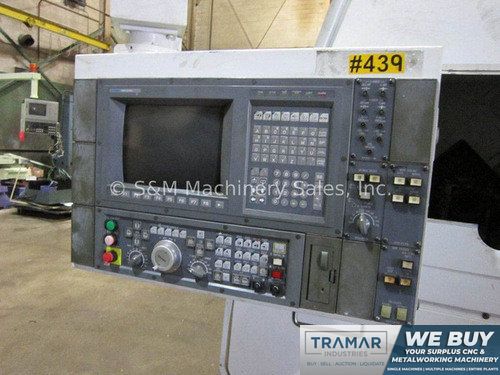

Control OSP U100L
Number of Axis 4
Chuck Size 10"
Swing 19.67"
Turning Diameter 11.81"
Center Distance 58"
Bar Capacity 2.75"
Spindle Bore 3.15"
Y-Axis (Y/N) N
Spindle Speed 3,500 RPM
Main Motor 30 Horsepower x 2
Live Milling (Y/N) N
C-Axis (Y/N) N
Turret Capacity 12 x 2
Tailstock (Y/N) N
Machine Weight 24,000 Lbs
Equipped With:
(2) 10" Hydraulic Chucks
(1) 12" Hydraulic Chuck
(8) Miscellaneous Tool Holders
Bar Feed Interface (Both Spindles)
NC Turret
Tool Life Management
Servo-LINC Spindle
Servo-LINC NC
Chip Conveyor
Coolant Tank & Pumps
