Year 2010
Serial Number 148210

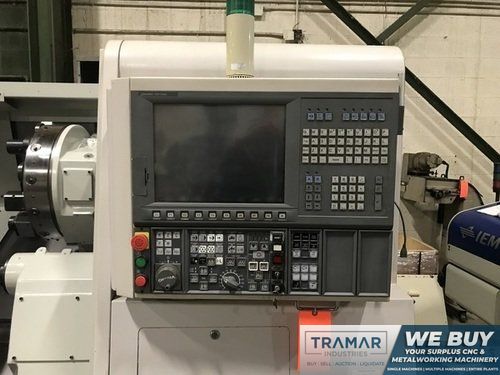

Control OSP P200L
Number of Axis 3
Chuck Size 15"
Swing 24.4"
Turning Diameter 16.53"
Center Distance 25.59"
Spindle Bore 4.33"
Bar Capacity 3.6"
X-Axis Travel 11.81"
Z-Axis Travel 26.57"
Y-Axis (Y/N) N
X-Axis Rapid Feedrate 787 IPM
Z-Axis Rapid Feedrate 984 IPM
Spindle Speed 3,000 RPM
Main Motor 30 Horsepower
Live Milling (Y/N) Y
C-Axis (Y/N) Y

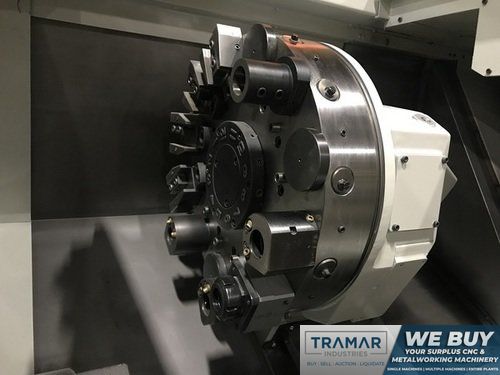

Turret Capacity 12
Tailstock (Y/N) Y

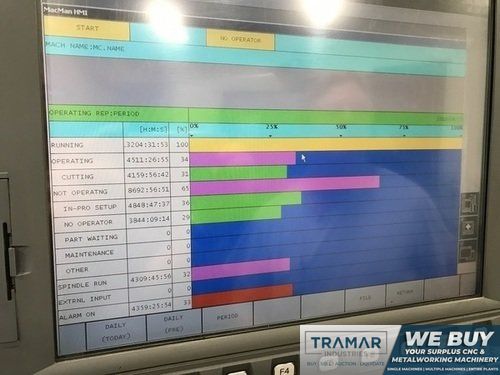

Machine Hours 4,159 Cutting
Machine Dimensions 108" x 75" x 79"
Machine Weight 16,500 Lbs
Equipped With:

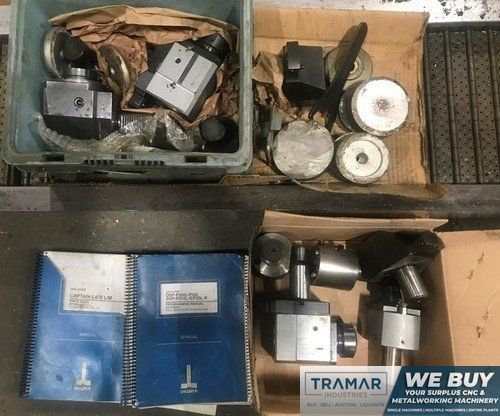

(5) Live Tool Holders

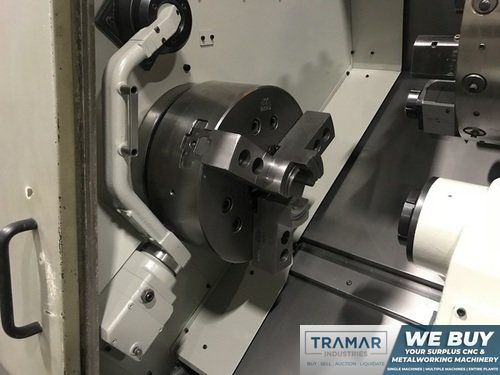

Manual Tool Probe

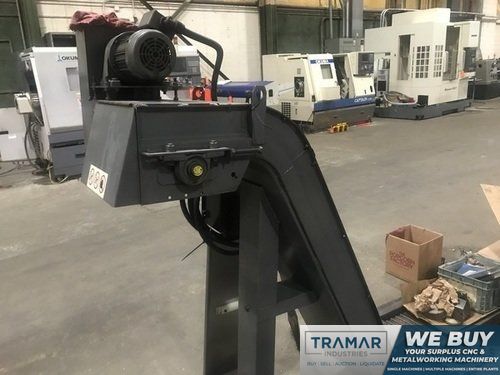

Chip Conveyor
Coolant Tank & Pump
