Year 2005
Serial Number 123833

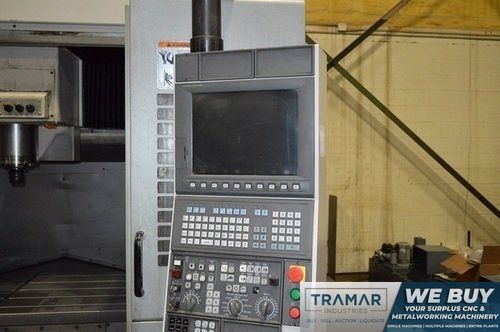

Control OSP P200
Number of Axis 3
Table Size 25.98" X 60.29"
Table Capacity 3,300 LBS
X-Axis Travel 59.06"
Y-Axis Travel 25.98"
Z-Axis Travel 25.98"
X-Axis Rapid Feedrate 1,260 IPM
Y-Axis Rapid Feedrate 1,260 IPM
Z-Axis Rapid Feedrate 1,260 IPM
Spindle Speed 12,000 RPM
Spindle Taper 50
Main Motor 30 Horsepower
Coolant Thru Spindle (Y/N) Y

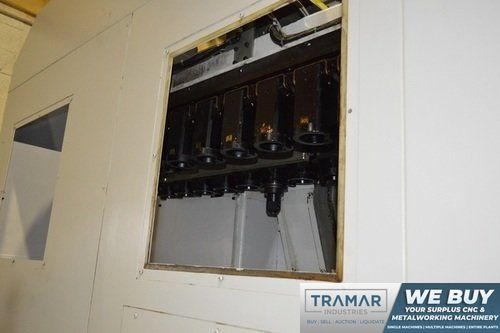

Tool Changer Capacity 40
Machine Weight 24,600 Lbs
Equipped With:

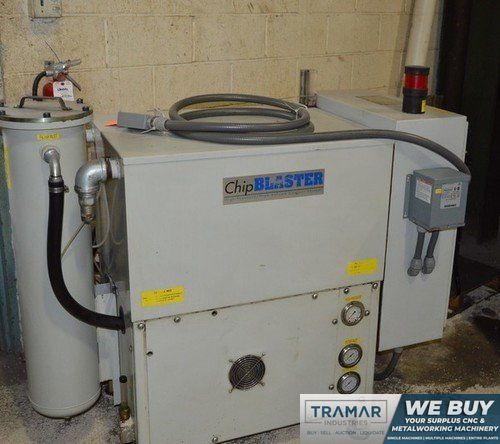

High Pressure Coolant Thru Spindle (Chipblaster JV-10)

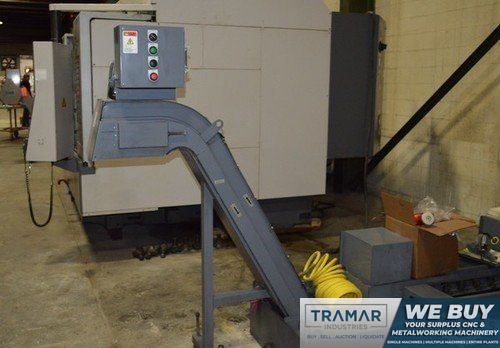

Chip Conveyor
Rigid Tapping
Machinery Management
IMAP
Helical Cutting
Coolant Tank & Pumps
