Distance from table top to grinding wheel bottom........... 0.9" - 20.6"
Feeds-Longitudinal.............................................................. 10-82 ft/min
Hand feed/revolution........................................................... 1.85"
Feeds-Cross.......................................................................... 0.02" -0.8"
Hydraulic continuous feed................................................... 8 -40 ipm

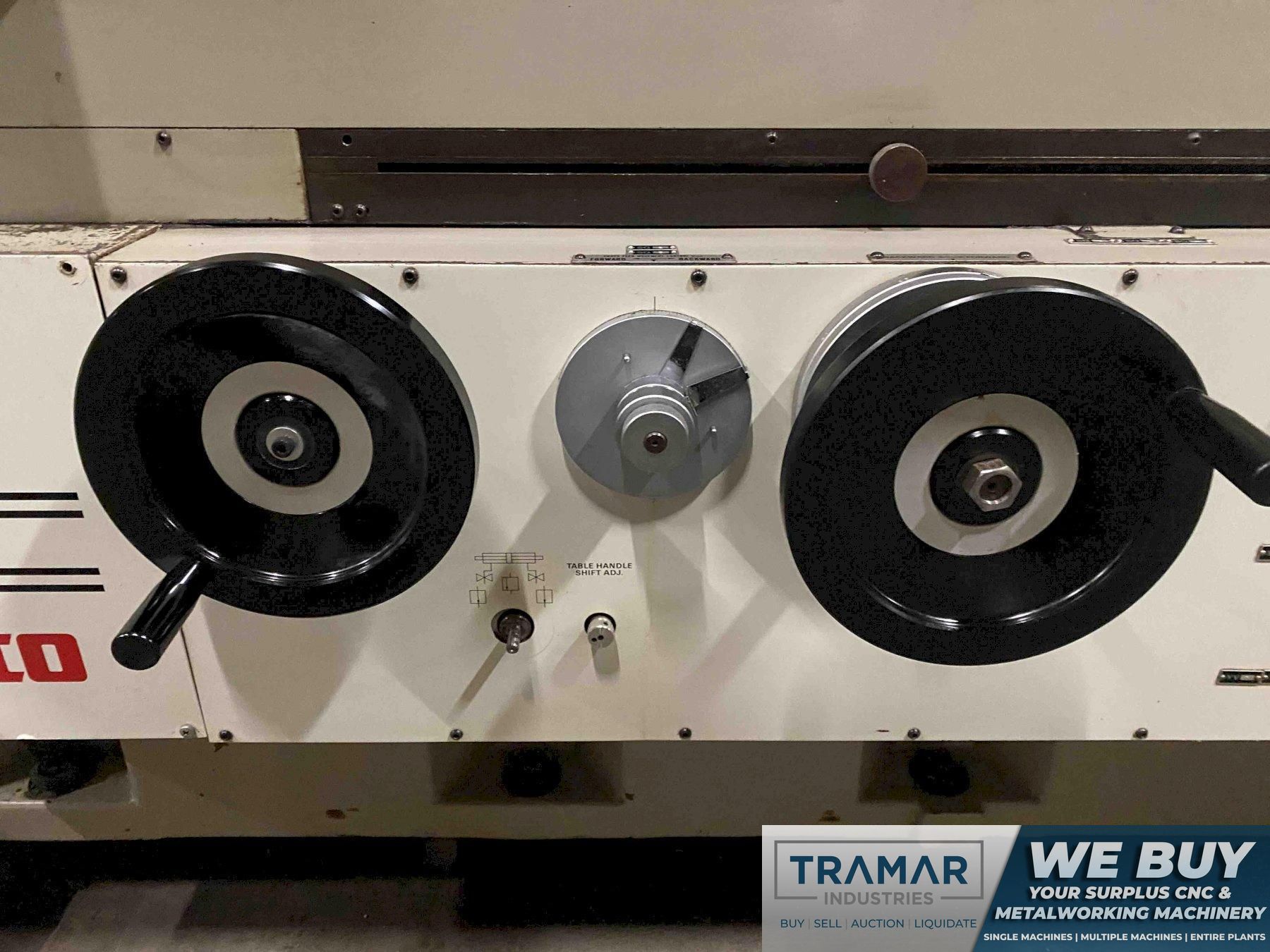

Hand feed.............................................................................. 0.25"
Graduation on handfeed....................................................... 0.001"
Vertical movement (auto feed per table stoke).................. 0.00005" - 0.0015"
Auto feed saddle reversal.................................................... 0.00005" - 0.0015
Spindle Motor........................................................................ 20 Horsepower

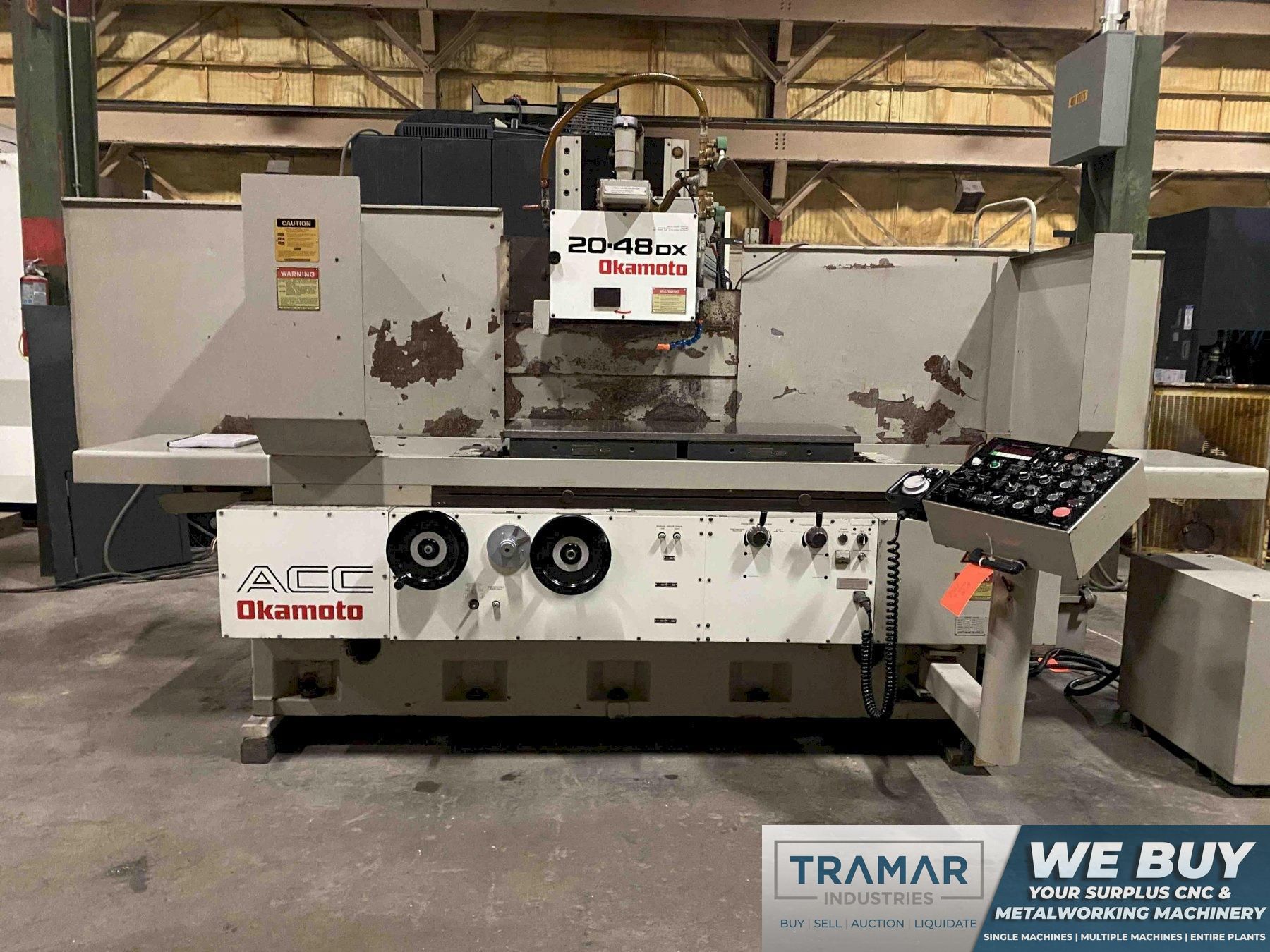

Column Type Machine
Dressing Compensation

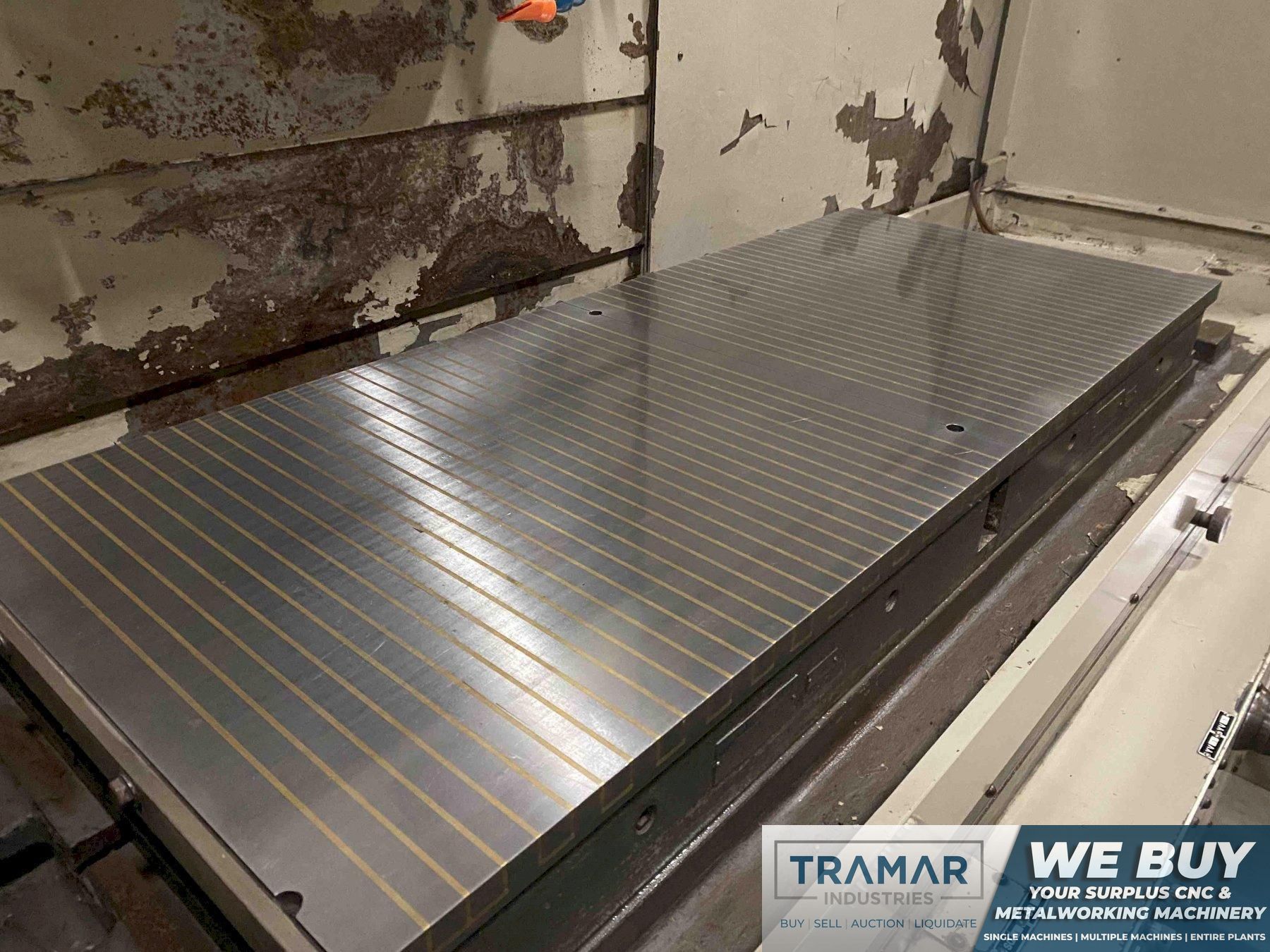

20" x 48" Electromagnetic Chuck

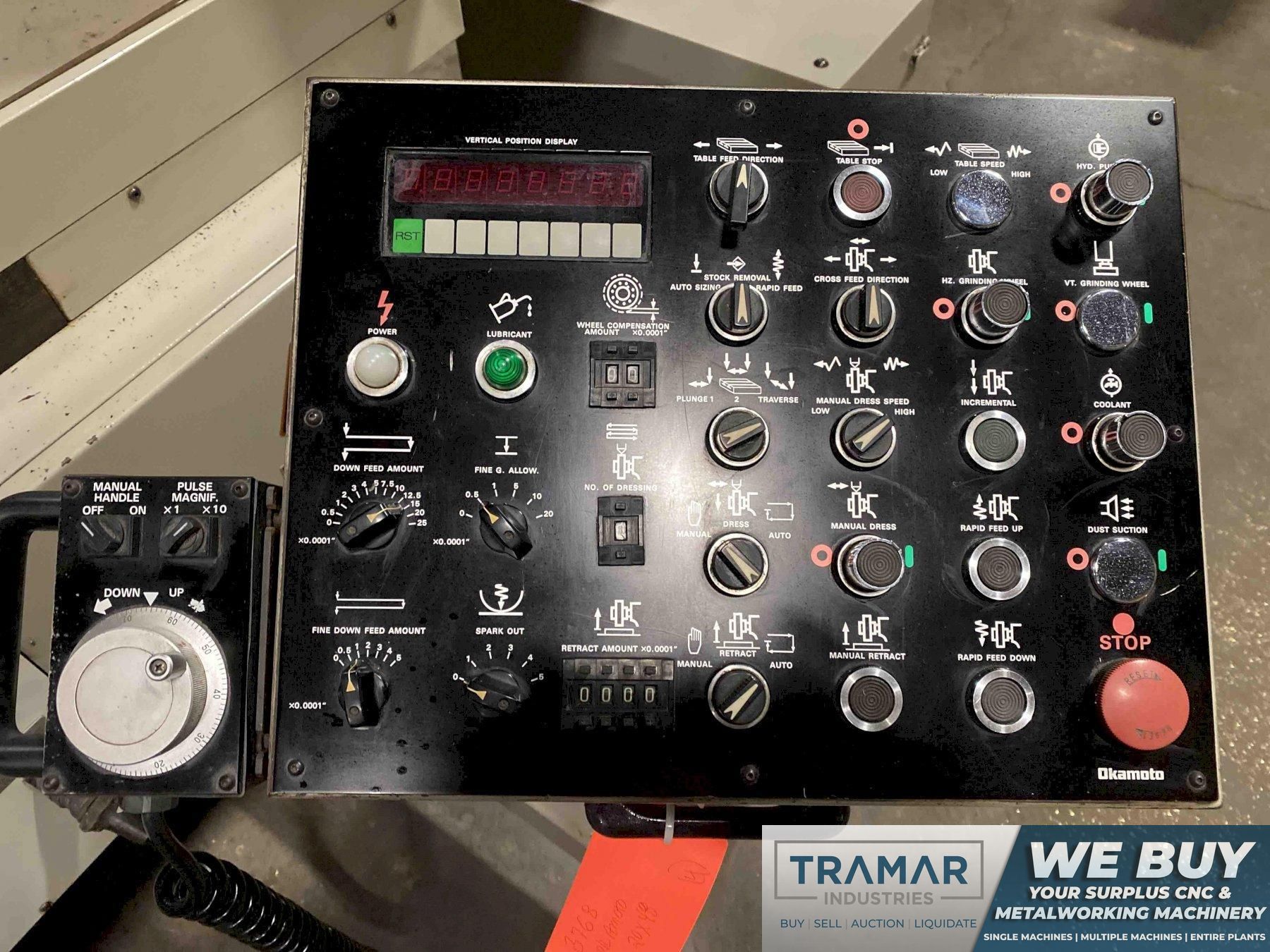

DX Controller with LED Display
Ballscrew on Vertical Axis
Over The Wheel Hydraulic Dresser
Spark Out
Rough/Finish Grind cycle
Plunge Grind Cycle
Coolant Tank, Pump & Magnetic Separator
Filter

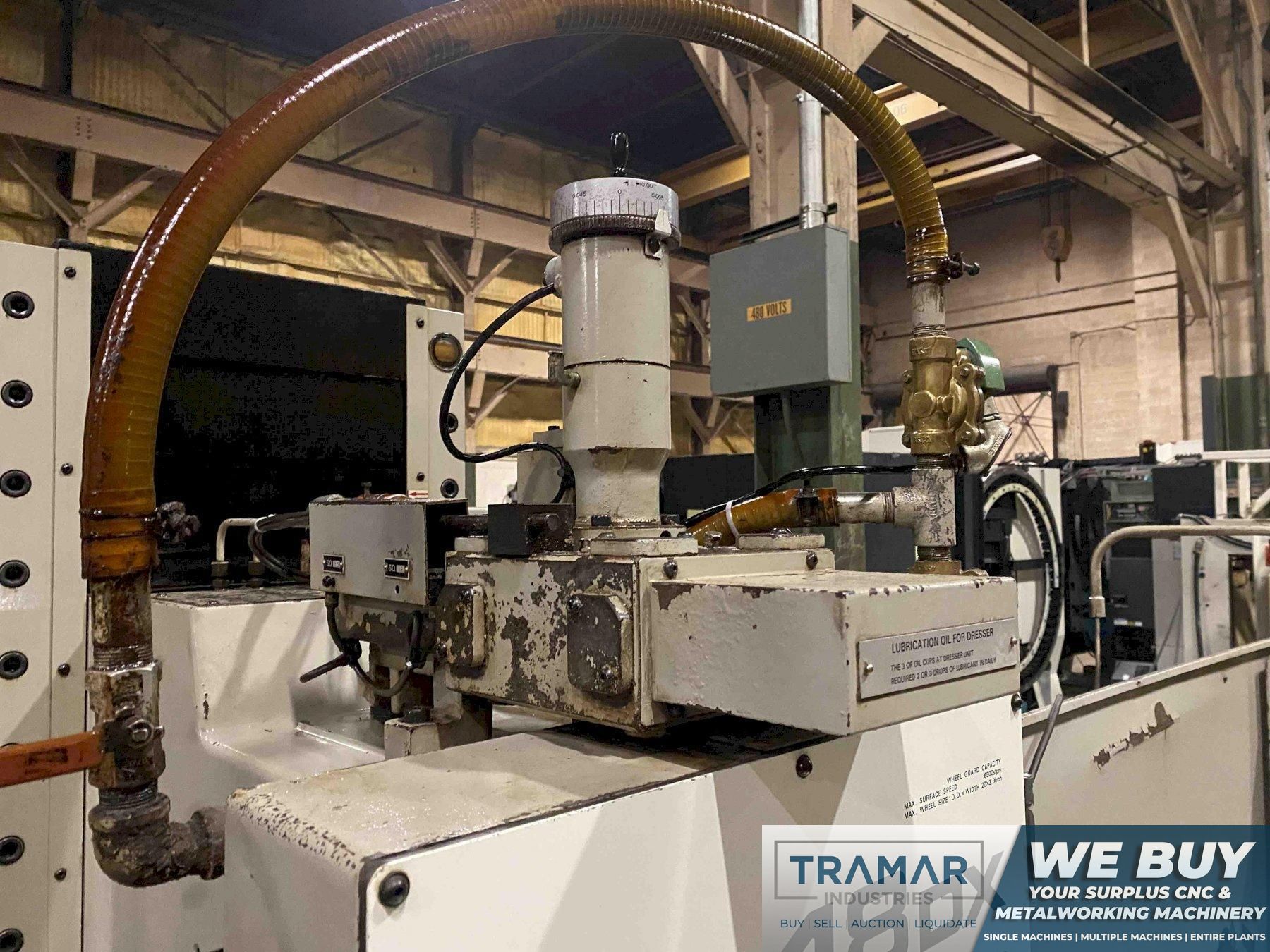

Auto Lube
