Year 2003
Serial Number ZT250CA0111
Control MSG-501
Number of Axis 8
Chuck Size 10"
Swing 27.56"
Turning Diameter 14.9"
Center Distance 51.2
Bar Capacity 2.8"
Spindle Bore 3.5"
X-Axis Travel 11"/7.9"
Z-Axis Travel 37.8"/38.8"
Y-Axis (Y/N) Y
Spindle Speed 4,000 RPM
Main Motor 30 Horsepower
Live Milling (Y/N) Y
Live Milling Speed 6,000 RPM
Live Milling Motor 7.5 Horsepower
C-Axis (Y/N) Y
Turret Capacity 12+12
Tailstock (Y/N) N
Machine Dimensions 166" x 109"
Machine Weight 29,000
Equipped With:

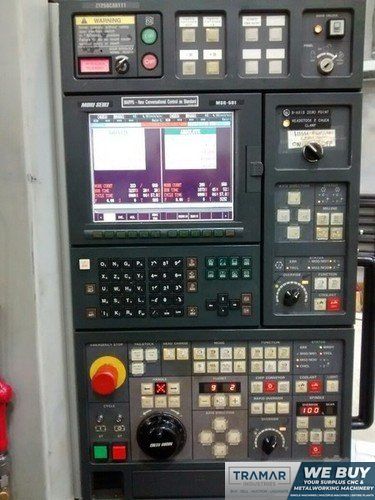

MSG-501 CNC Control (Fanuc 18i)
MAPPS Conversational Programming
(C) Axis
(Y) Axis on Lower Turret

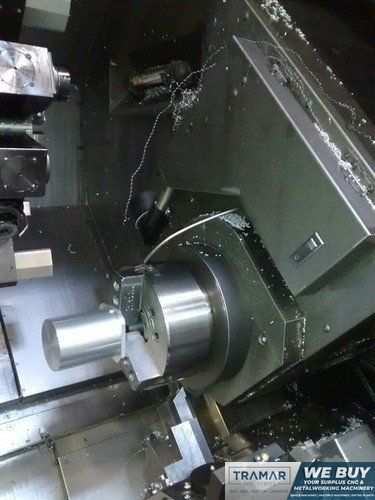

Hydraulic chucks

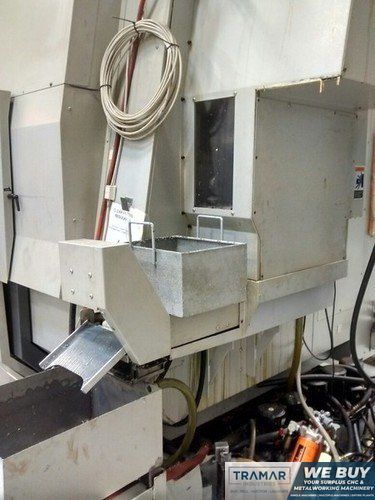

Parts Catcher
Tool Presetter
Chip Conveyor

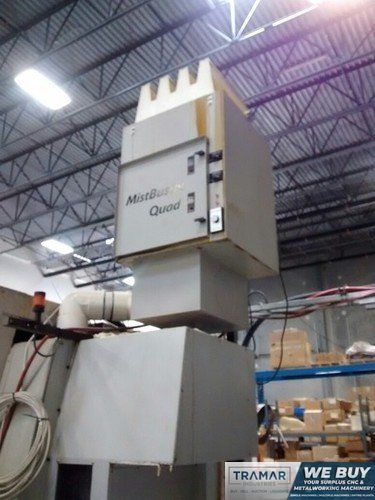

Mist Blaster

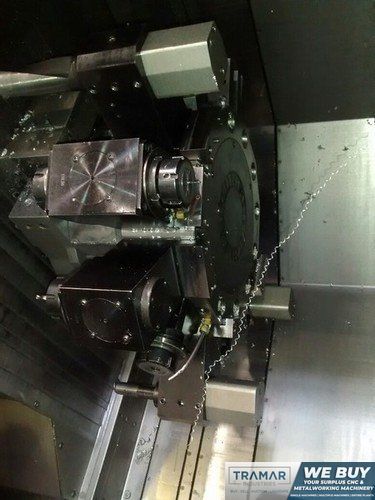

Approximately (10) Live Holders
