Year 2005

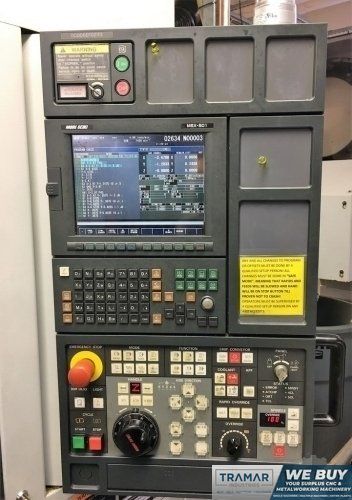

Control MSX 501
Serial Number DC005EF0233
Number of Axis 3

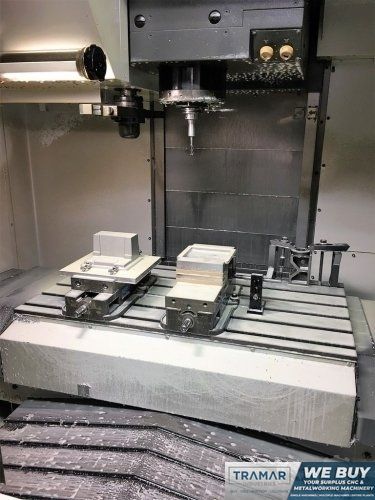

Table Size 43" X 23"
Table Capacity 2,640 Lbs
X-Axis Travel 31.5"
Y-Axis Travel 20.1"
Z-Axis Travel 20.1"
X-Axis Rapid Feedrate 1,417 IPM
Y-Axis Rapid Feedrate 1,417 IPM
Z-Axis Rapid Feedrate 787 IPM

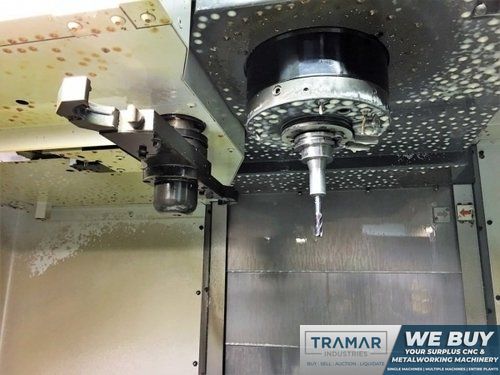

Spindle Speed 10,000 RPM
Spindle Taper CAT 40
Coolant Thru Spindle Y
Main Motor 20 Horsepower

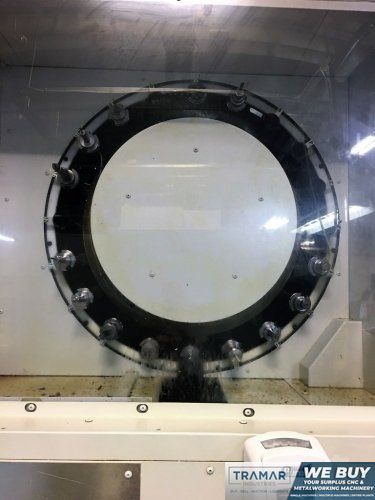

Tool Changer Capacity 20
Equipped With:
High-Pressure Coolant

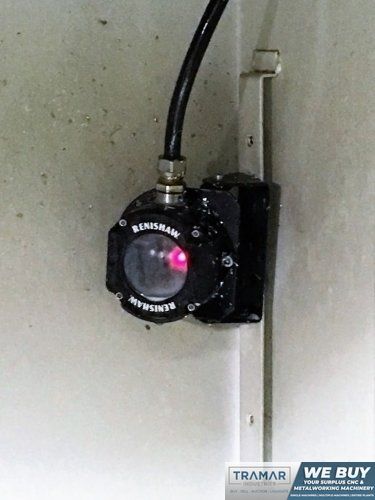

Renishaw Probe Interface
