Year 1997
Serial Number BD50216S

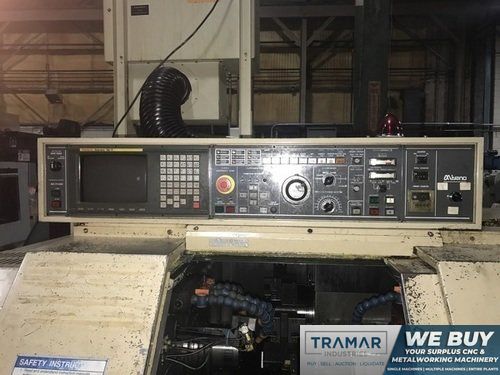

Control Fanuc 18T
Number of Axis 4
Turning Diameter 4.92"
Bar Capacity 1.34"
X-Axis Travel 5.5"
Z-Axis Travel 11.02"
Spindle Speed 5,000 RPM
Main Motor 10 Horsepower
Sub Spindle Speed 5,000 RPM
Sub Spindle Motor 5 Horsepower
Live Milling (Y/N) Y
Live Milling Speed 3,000 RPM
Live Milling Motor 3 Horsepower
C-Axis 5 Deg.

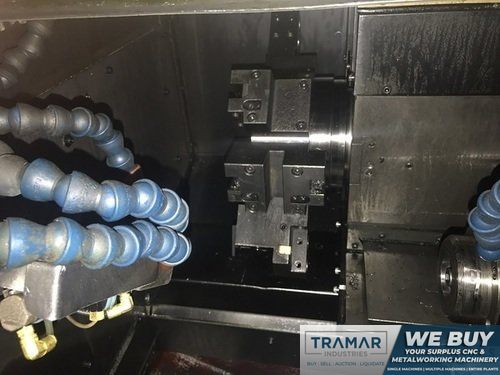

Turret Capacity 12
Tailstock (Y/N) N
Machine Weight 7,800 lbs
Equipped With:

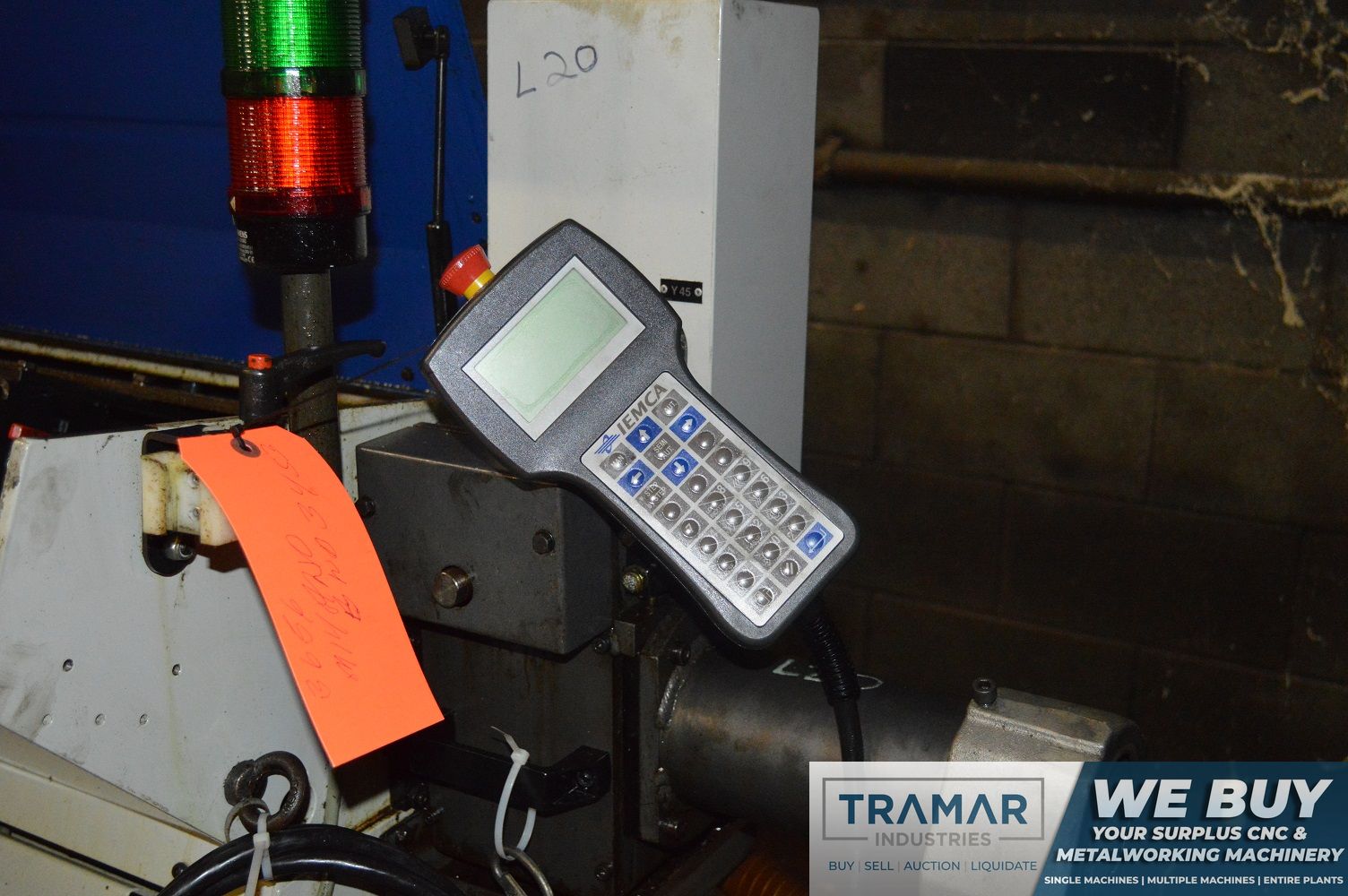

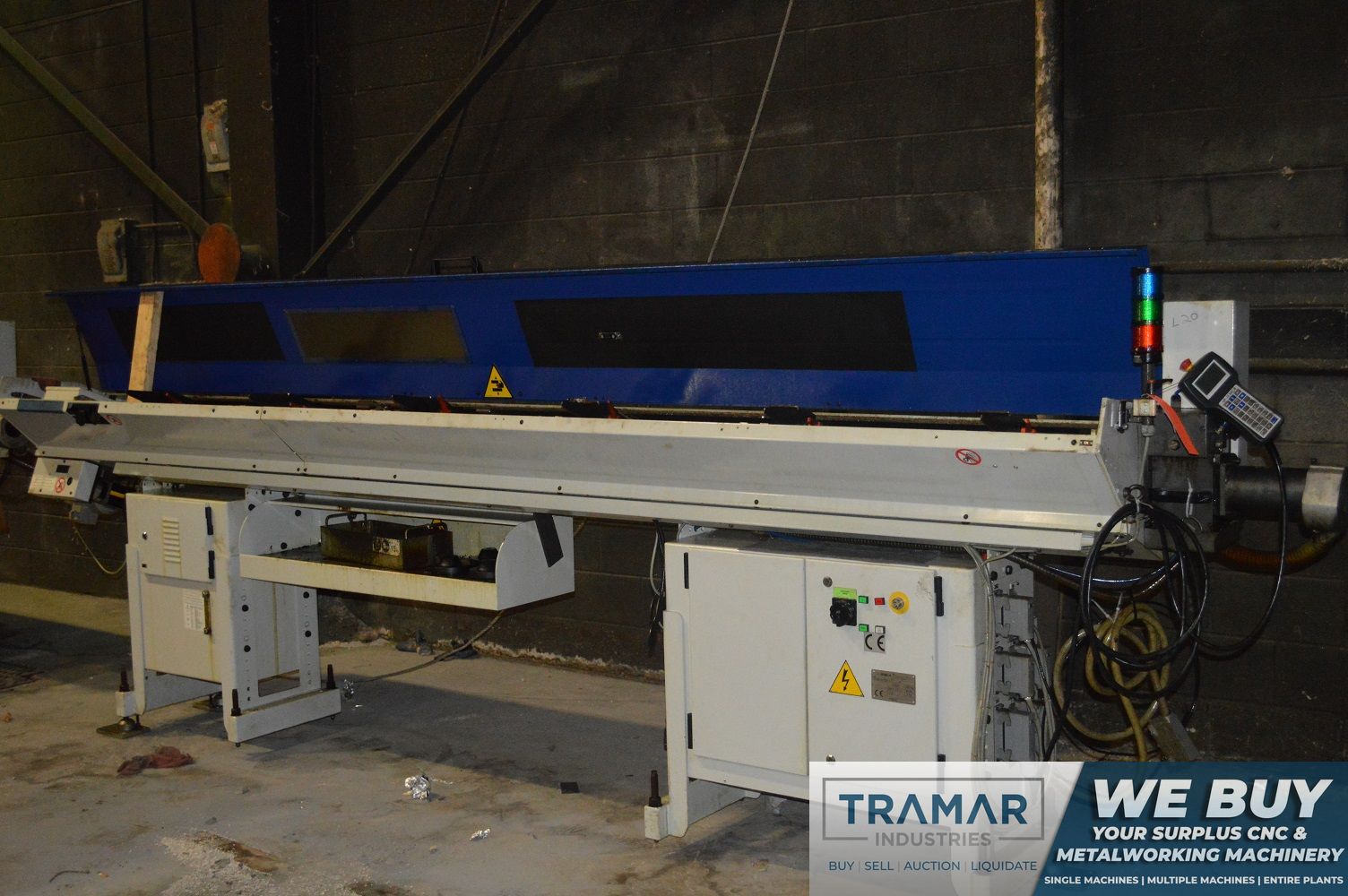

Iemca 542 Bar Feed
(C) Axis On Main And Sub Spindle

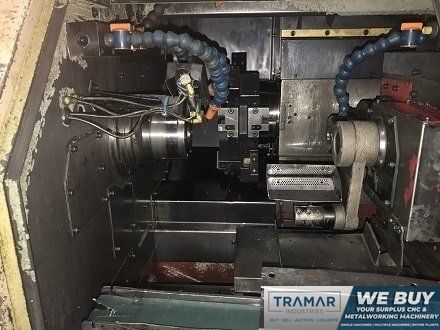

Live Tooling
(5) Live Toolholders and Misc Static Holders
Parts Catcher
Parts Conveyor
Coolant Tank & Pump
Mist Collector
Chip Conveyor
