Year 2008
Serial Number 10467
Control MILLTRONICS 7200
Number of Axis 3
Table Size (2) 40" X 43"
Table Capacity 3,000 LBS
X-Axis Travel 41"
Y-Axis Travel 40"
Z-Axis Travel 29"
X-Axis Rapid Feedrate 1200 IPM
Y-Axis Rapid Feedrate 1200 IPM
Z-Axis Rapid Feedrate 1200 IPM
Cutting Rate 500 IPM
Spindle Speed 10,000 RPM
Coolant Thru Spindle (Y/N) N
Spindle Taper 40
Main Motor 24 Horsepower
Tool Changer Capacity 40
Machine Weight 40,000 lbs
Equipped With:

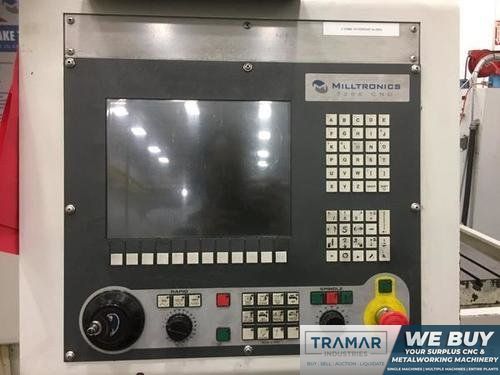

Milltronics 7200 CNC Control
Converstional
Standard programming (EIA/ISO)

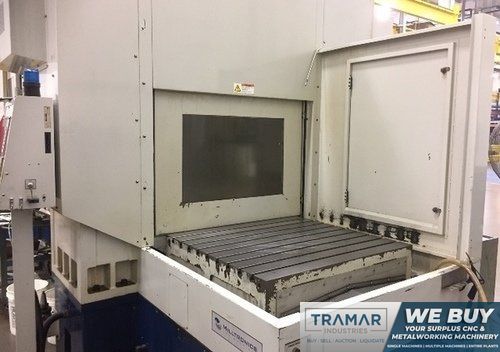

Twin Tables (can be used independently or together)
45 mm Linear Roller Way Technology on all 3 axes
Full Enclosure
Rigid Tapping
Spindle Chiller

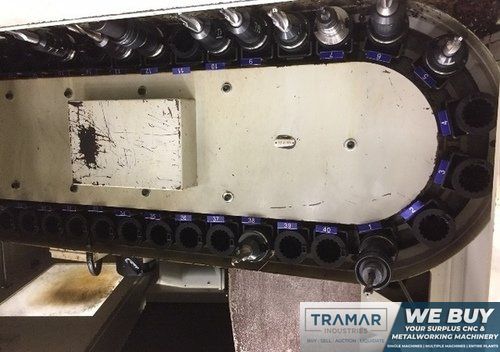

Dual Arm ATC

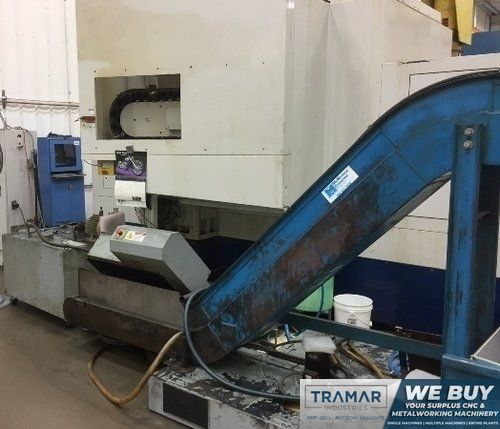

Chip Conveyor
Coolant Thru Spindle
