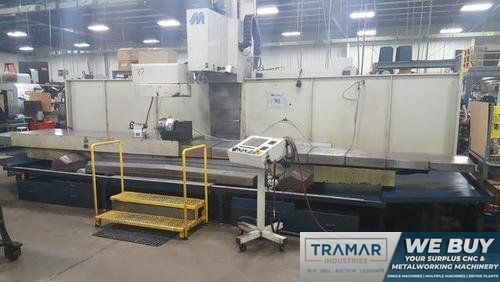

Year 2006
Serial Number 9043
Control Centurion 7
Number of Axis 4

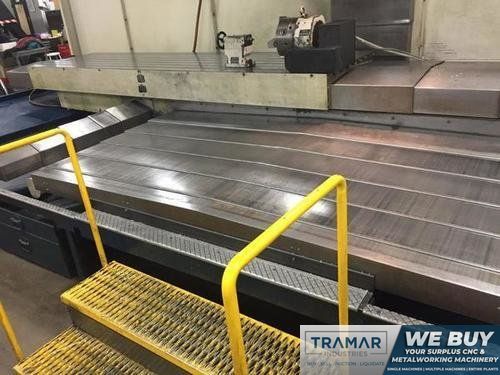

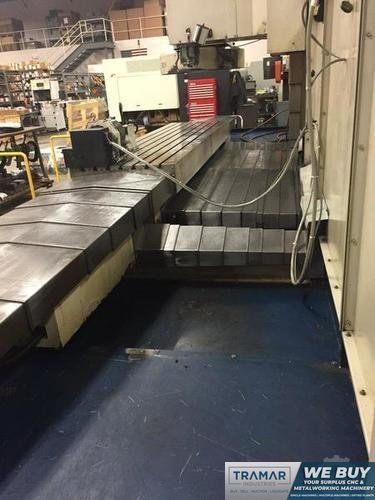

Table Size 126" x 32"
Table Capacity 5,000 lbs
X-Axis Travel 120"
Y-Axis Travel 35"
Z-Axis Travel 30"
X-Axis Rapid Feedrate 500 IPM
Y-Axis Rapid Feedrate 500 IPM
Z-Axis Rapid Feedrate 500 IPM
Cutting Rate 300 IPM
Spindle Speed 8,000 RPM
Spindle Taper 50
Main Motor 24 Horsepower
Coolant Thru Spindle (Y/N) N
Tool Changer Capacity 20
Machine Dimensions 300" x 116"
Machine Weight 40,000 lbs
Equipped With:

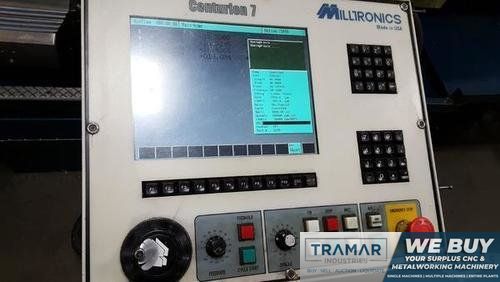

Centurion 7 PC Based CNC Control
Conversational or G code Programming
Teach Mode
Dual Electronic Handwheels
Color LCD Dispay
2 Speed Gearbox
Troyke 10" 4th Axis Rotary Table with Tailstock
Rear Splash Guards
Remote HandWheel
Floppy Drive
Flood Coolant
12 MB Parts Storage Memory
16 MB Program Execution Memory
Engraving, Helical Interpolation, Auto Routines, User Definable Macros, Trig Assist
Coordinate Rotation, Scaling, Mirror Image, Thread Milling
S Curve Accel/Decel Ramp Modifier with Feed Forward and Look Ahead for High
Speed Machining or 3D Milling.
DXF File Conversion software
Flash Memory Card Device
Twin Chip Augers
