Built
Installed new 2011
2012

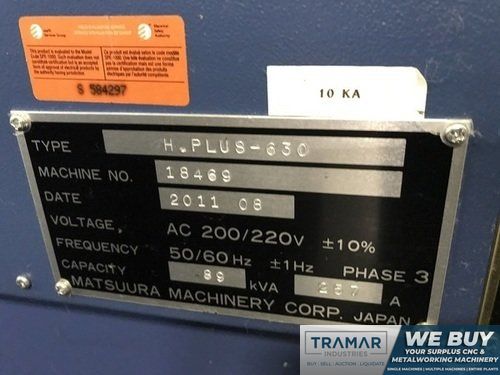

Serial Number 18469

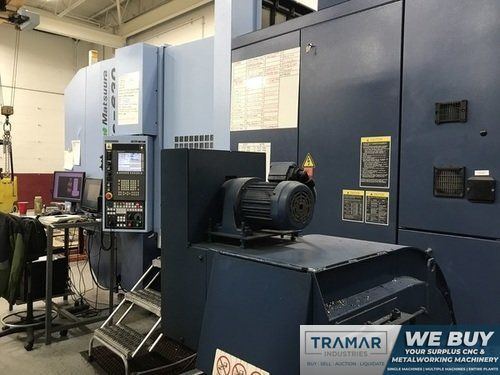

Control G-Tech 30i
Number of Axis 4

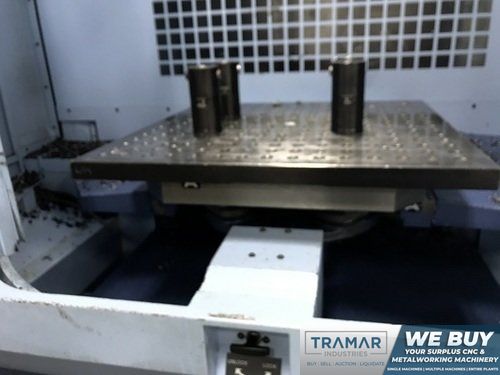

Pallet Size 24.8" x 24.8"
Pallet Capacity 2,640 Lbs
Pallet Indexing (B-Axis) Full 4th
X-Axis Travel 41.33"
Y-Axis Travel 36.22"
Z-Axis Travel 38.97"
X-Axis Rapid Feedrate 1968 IPM
Y-Axis Rapid Feedrate 1968 IPM
Z-Axis Rapid Feedrate 1968 IPM
Spindle Speed 12,000 RPM
Spindle Taper CAT 50
Main Motor 40 Horsepower

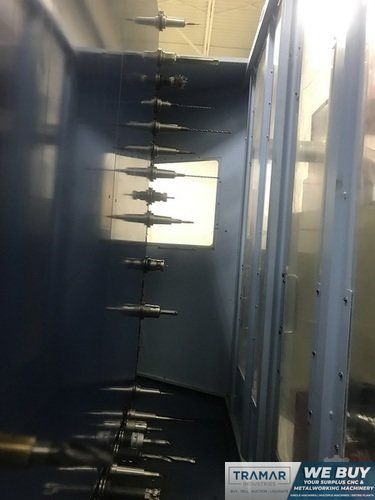

Tool Changer Capacity 60
Machine Hours
4,174 Cutting Hours
Machine Dimensions 140" x 240" x 137"H
Equipped With:
Full 4th Axis with Indoctosyn® Scales
Manual Guide I Conversational Programming
(2) Tombstones
Approximately 50 Standard Tool Holders
Overhead Coolant Flush System
Prepped for Hi-Pressure Coolant Thru Spindle

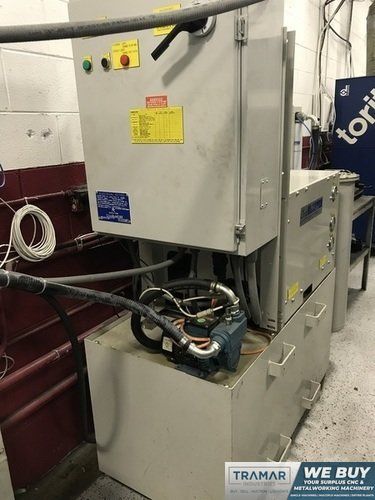

Chip Blaster JV-40 Hi-Pressure Coolant Thru Spindle (1,000 PSI)
Internal Spiral Conveyors
Lift-Up Chip Conveyor
Renishaw In-Process Measurement Probe
Renishaw NC-4 Laser Tool Measurement System
Fanuc Data Server w/1GB Memory
