Year Manufactured in 2013

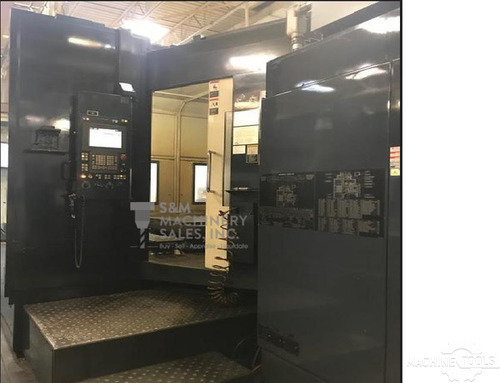

Control Fanuc Professional 5

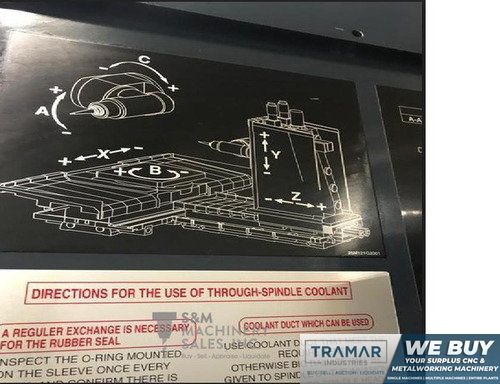

Number of Axis 6
Table Size 60" x 47"
Table Capacity 22,000 Lbs
X-Axis Travel 80"
Y-Axis Travel 51.5"
Z-Axis Travel 51.5"
X-Axis Rapid Feedrate 787 IPM
Y-Axis Rapid Feedrate 787 IPM
Z-Axis Rapid Feedrate 787 IPM
A Axis Indexing 1 Deg
C Axis Indexing 1 Deg
Spindle Speed 12,000 RPM
Spindle Taper HSK 100
Main Motor 40 Horsepower
ToolChanger 120 Position

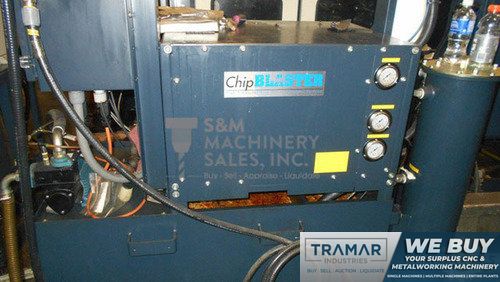

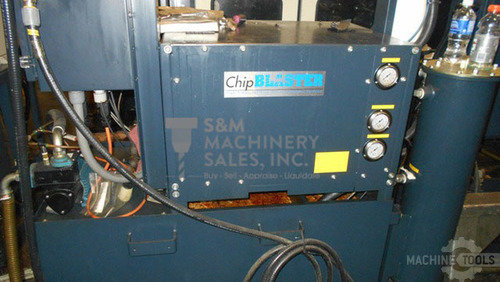

Coolant Thru Spindle (Y/N) Y
Spindle Hours 2,700
Equipped With:

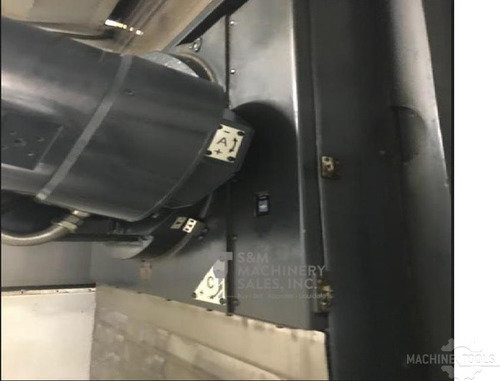

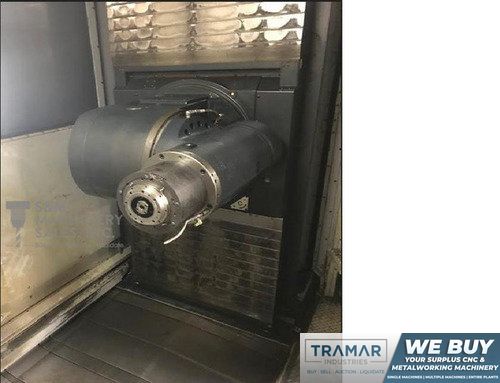

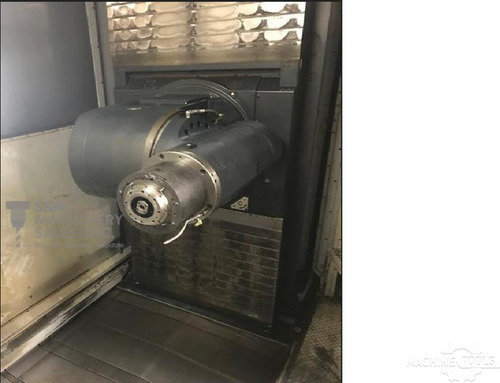

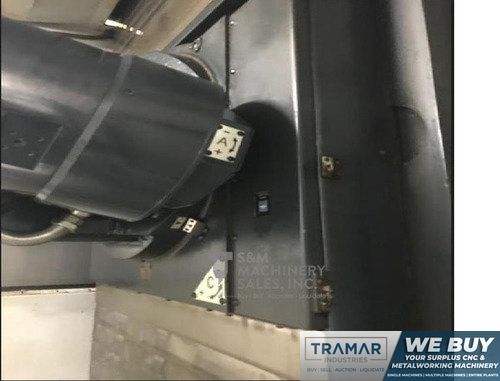

3 + 2 Spindle Indexing Head
Scales

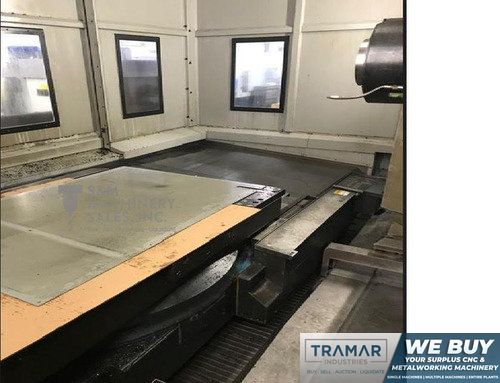

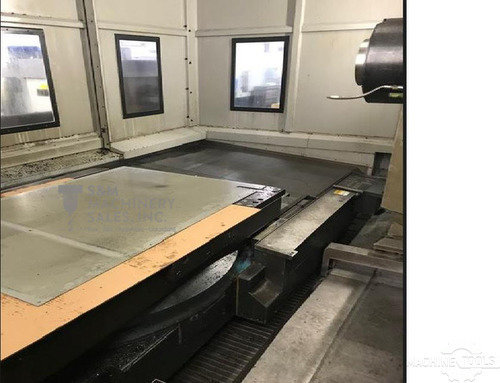

Full 4th Axis Built in Rotary Table
Super GI

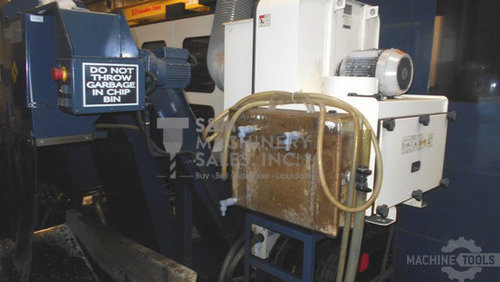

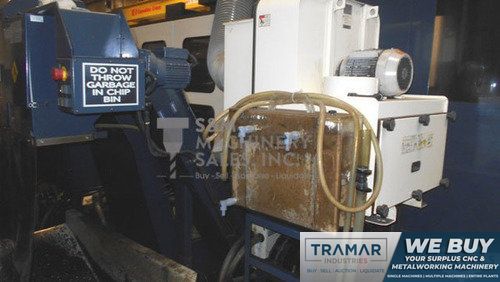

Mist Collector
Chip Conveyor
Data Server
(2) Range Spindle
Renishaw Probe Ready
Blum Tool Laser Pick up
B Axis Gearbox Rebuilt By Makino (October 2015)
New Spindle Installed By Makino (October 2015)
