Year ..... 2006
MAKINO MACHINING COMPLEX (MMC2)
WITH (1) 2006 MAKINO A81M AND (1) 2006 A81 HORIZONTAL MACHINING CENTER

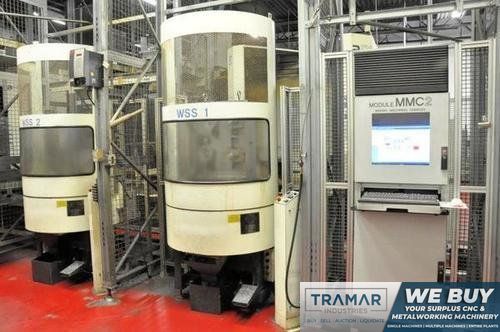

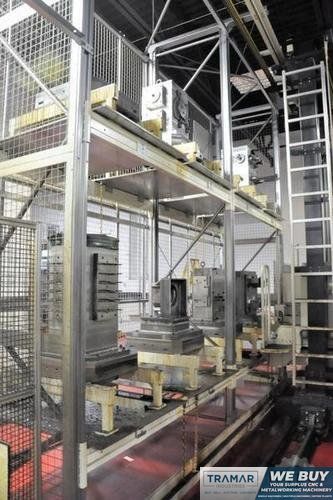

(2) WORK SETTING STATIONS AND 14 STATION MODULAR PALLET STOCKER AND 12 PALLETS

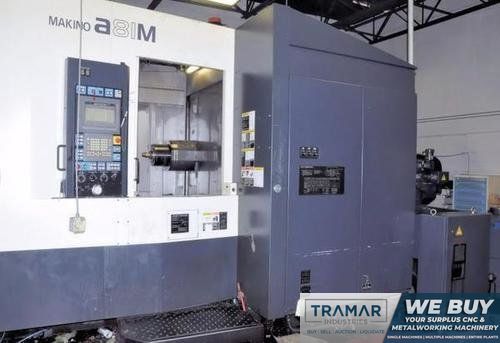

MAKINO A81M
Control Makino Fanuc Professional 5
Pallet Size 24.8"
Work Piece 25" x 25"
Travels (x) 35.4"
(y) 30.5"
(z) 40.2"
Rapid Feed Rate 1,969 IPM
Max Tool Length 23.6"
Max Tool Diameter 11.8"
Max Tool Weight 44 Lbs
Spindle Speed 8,000 RPM
Spindle Taper HSK 100

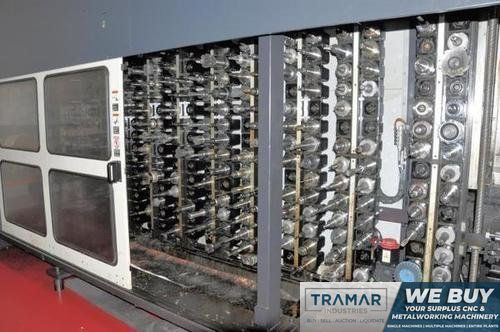

Tool Capacity 300 Stations
Equipped With:
Full Fourth Axis (.001 Degree)
High Pressure Coolant Thru Spindle
Mist Collector
Transformer
Chip Conveyor
Chiller
MIsc Tool Holders (Approx 200)

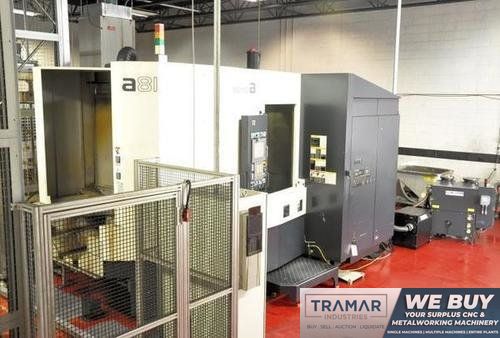

MAKINO A81
Control Makino Fanuc Professional 5
Pallet Size 24.8"
Work Piece 25" x 25"
Travels (x) 35.4"
(y) 30.5"
(z) 40.2"
Rapid Feed Rate 1,969 IPM
Max Tool Length 23.6"
Max Tool Diameter 11.8"
Max Tool Weight 44 Lbs
Spindle Speed 10,000 RPM
Spindle Taper HSK 100
Tool Capacity 300 Stations
Equipped With:
Full Fourth Axis (.001 Degree)
High Pressure Coolant Thru Spindle
Mist Collector
Transformer
Chip Conveyor
Chiller
