Year Manufactured 2010/Installed 2011
Control Fanuc Professional 5
Number of Axis 4
Pallet Size 31.5" x 39.4"
Pallet Indexing (B-Axis) 1 Degree
X-Axis Travel 59.8"
Y-Axis Travel 49.2"
Z-Axis Travel 53.1"
X-Axis Rapid Feedrate 1,969 IPM
Y-Axis Rapid Feedrate 1,969 IPM
Z-Axis Rapid Feedrate 1,969 IPM
Spindle Speed 10,000 RPM
Spindle Taper 50
Main Motor 47 Horsepower
Tool Changer Capacity 40
Equipped With:
Pro 5 CNC Control (Fanuc 31a)
(2) 31.5" x 39.4" Pallets

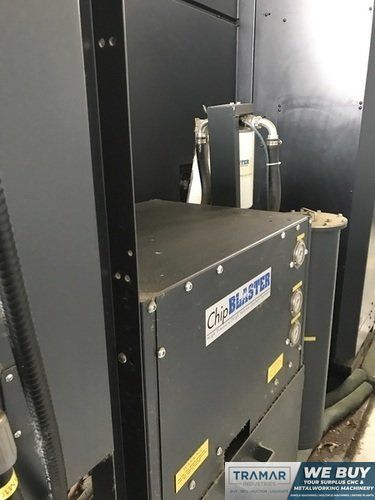

High Pressure Coolant Thru Spindle Chipblaster JV-40 ($17,600)
Coolant Temperature Control ($17,600)
Air Dryer
Helical Interpolation
S.G.I.-4 ($19,000)
PQI Travel
Prepped for Probing System
Broken Tool Sensor Outside Machining Area ($13,700)
Prepped for Hydraulic Clamping (Needs Hydraulic Unit)
Chip Conveyor with Drum Filter
Cutting hours............................. 25,379
