Year 1997
Control Fanuc Professional 3
Number of Axis 4

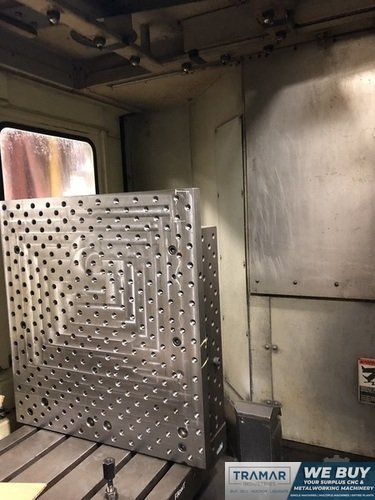

Pallet Size 24.8" X 24.8"
Pallet Capacity 2640 Lbs
Pallet Indexing (B-Axis) Full 4th
X-Axis Travel 31.5"
Y-Axis Travel 29.5"
Z-Axis Travel 30.3"
X-Axis Rapid Feedrate 1187 IPM
Y-Axis Rapid Feedrate 1187 IPM
Z-Axis Rapid Feedrate 1187 IPM

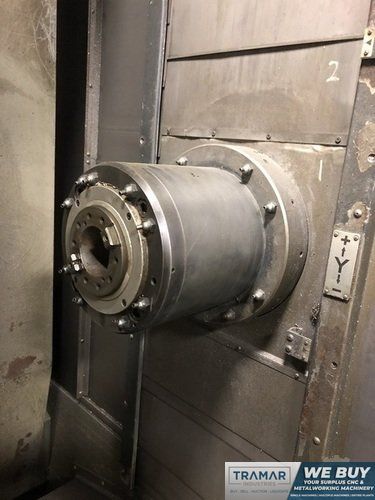

Spindle Speed 18,000 RPM
Spindle Taper 50
Tool Changer Capacity 40
Equipped With:

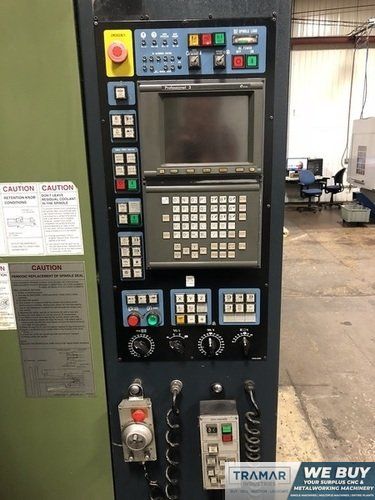

Professional 3 (Fanuc 16) CNC Control
SGI
Helical Interpolation
Nurbs Interpolation
Data Server
Rigid Tapping
Scaling
High Speed Skip
Coolant Thru Spindle (With Temp Controller)
Scale Feedback
Air Dryer
Mist Collector
Chip Conveyor
Probe Ready
