Year 2007
Serial Number 03372

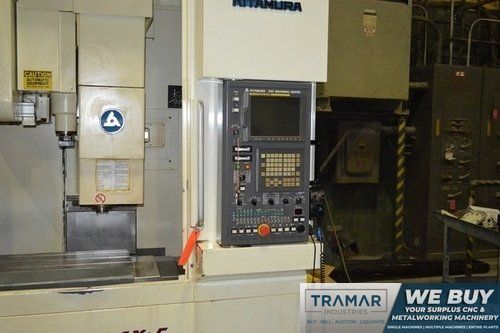

Control Fanuc 16iMB
Number of Axis 3

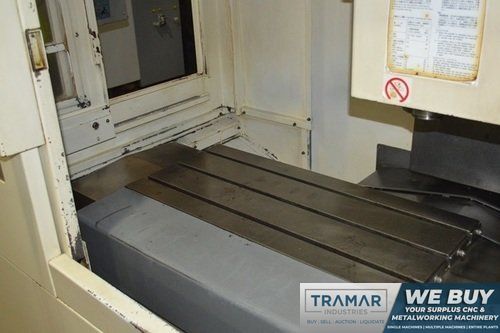

Table Size 14" X 31"
Table Capacity 529 LBS
X-Axis Travel 20.07"
Y-Axis Travel 13.97"
Z-Axis Travel 18.11"
X-Axis Rapid Feedrate 1968 IPM
Y-Axis Rapid Feedrate 1968 IPM
Z-Axis Rapid Feedrate 1417 IPM
Cutting Rate 590 IPM
Spindle Speed 15,000 RPM
Spindle Taper 30
Main Motor 10/7.5 Horsepower
Coolant Thru Spindle (Y/N) Y
Tool Changer Capacity 30
Equipped With:
Dual Arm Toolchanger
Dual Chip Augers
Spindle Chiller
Chip Conveyor
Coolant Tank & Pump
Remote Handwheel
