Kao Ming KMC 2000SV - Centros de Máquinado de Puente

Modelo: KMC 2000SV
Año: 2019
Número de Inventario: BR16001 Sold
Yes
Características Destacadas:

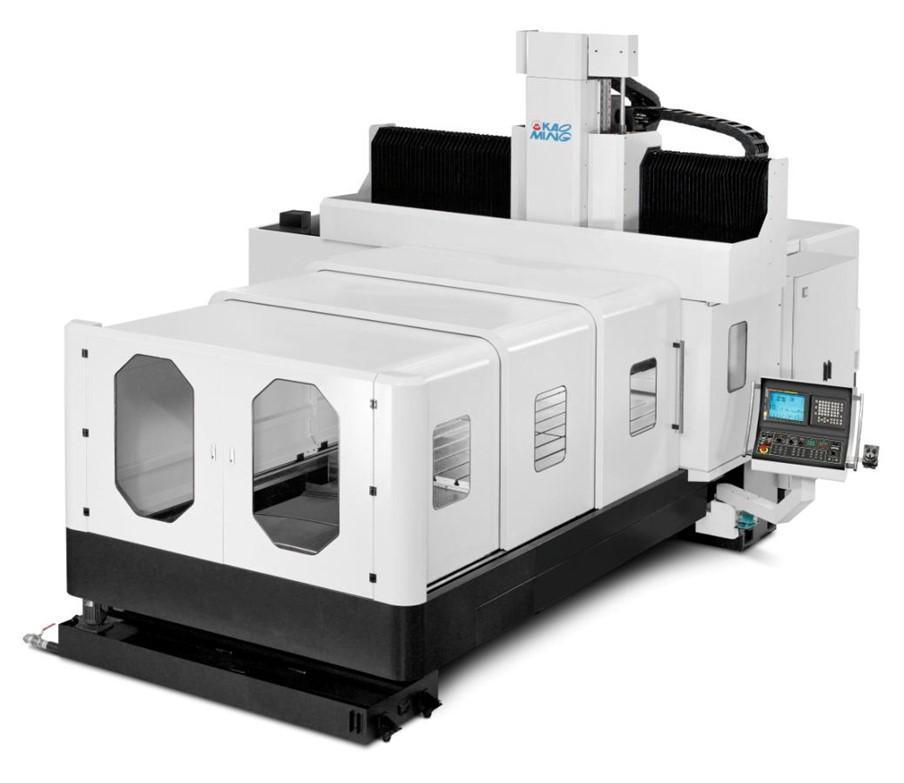

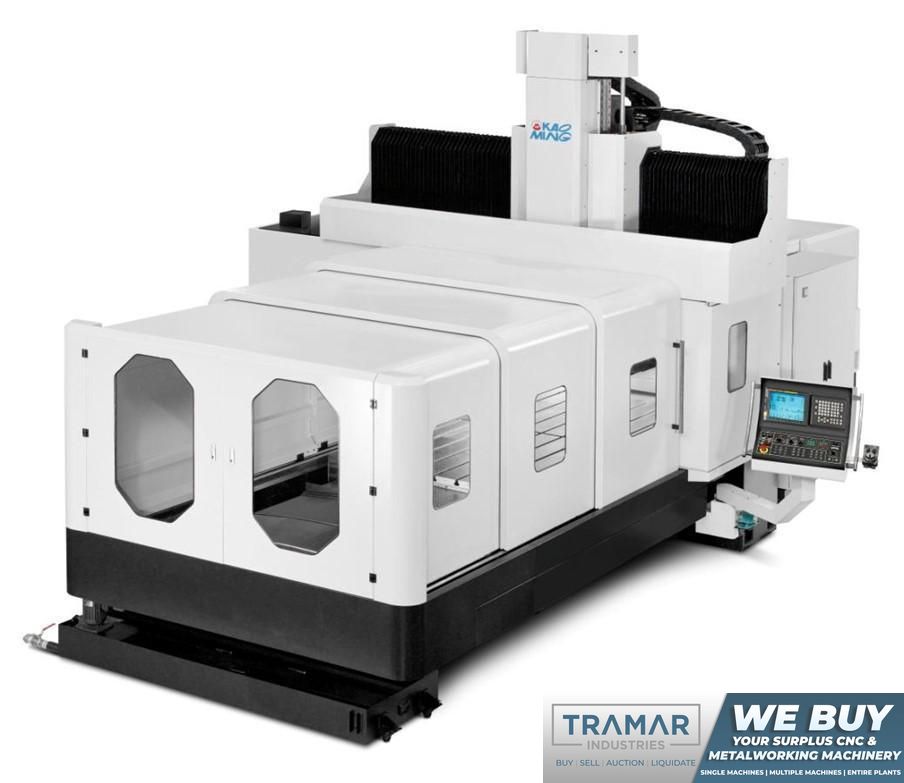

Kao Ming KMC-2000SV CNC Bridge-Style Vertical Machining Center - Never Used - Still In Original Crate, 2019
Especificaciones
Año
2019
Tipo de Control CNC
Fanuc 0iMF
Distancia entre columnas
59"
Table-W
49.21"
Table-L
78.74"
X
87.8"
Y
55.1"
Z
33.4"
Spindle Nose to Table
3.94"-37.4"
Taper
CT-50 Big Plus
RPM
10,000
potencia
35 horsepower
Recorido en Rapido (X/Y/Z)
590 IPM/590 IPM/472 IPM
Cutting Feedrates (X/Y/Z)
315 IPM/315 IPM/315 IPM
Repeatability (X/Y/Z)
+/-0.0001"
Positioning (X/Y/Z)
+/-0.0002"
Refrigeración a Través Del Husillo
yes
Cambiador de hermientas
40
Table Load Capacity
13,200 pounds
Peso
40,700 pounds
Dimensions (LxWxH)
242" X 163" X 167"
Power Consumption
55 KVA

Equipado con:

BRAND NEW, NEVER INSTALLED
STILL IN CRATE
**************60 DAY GUARANTEE**************


FANUC 0I MF (AICC, 200 BLOCK LOOK-AHEAD)
HARDENED AND GROUND BOX WAYS
DIRECT DRIVE SPINDLE
40ATC (STANDARD IS 30ATC)
BIG PLUS SPINDLE
COOLED BALL SCREW
CHILLER
SCRAPER CHIP CONVEYOR
TOP COVER
PREPPED FOR COOLANT THRU SPINDLE
PREPPED FOR SCALES
MANUAL PULSE HAND WHEEL
4TH AXIS PREWIRE
