Inductoheat SS II UPI 16 50-50 - Heat Treating Units

Modelo: SS II UPI 16 50-50
Año: 2013
Número de Inventario: BR16083 Sold
Tipo: Heat Treating Units
Fabricante: Inductoheat
Características Destacadas:
The Statiscan® II Induction Heat Treating Scanning System is a unitized vertical hardening system with two standard scanning spindles. This platform is designed for medium duty heat treating and tempering of various parts and applications. This flexible machine can be configured for multiple heat treating operations such as; scan, single-shot, lift/rotate and linear transfer.

Inductoheat Statiscan II Induction Heat Treating Scanning System.  2013 (2) Machines Available
Especificaciones
Año
2013
Dimensiones
84" x 74" x 98" H
Tower Span Length
26.5"
Max Part Length
30"
Scanning Speed (max)
8" / Sec
Workpiece Capacity/ spindle
22 Lbs
Spindle Center Spacing
8"
Height Tower Up
103"
Controls

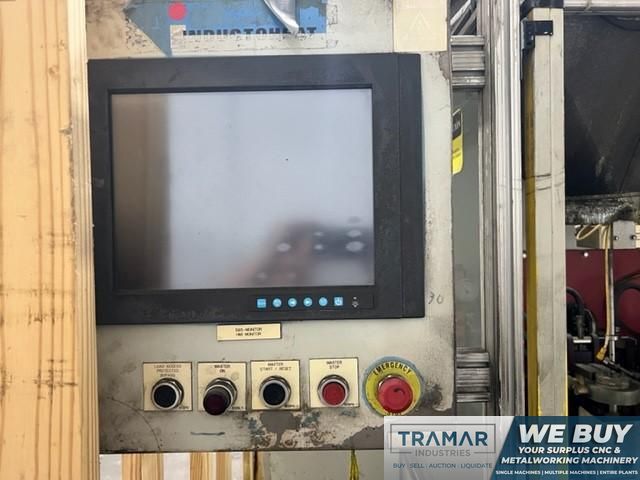

Standard PLC With HMI Interface

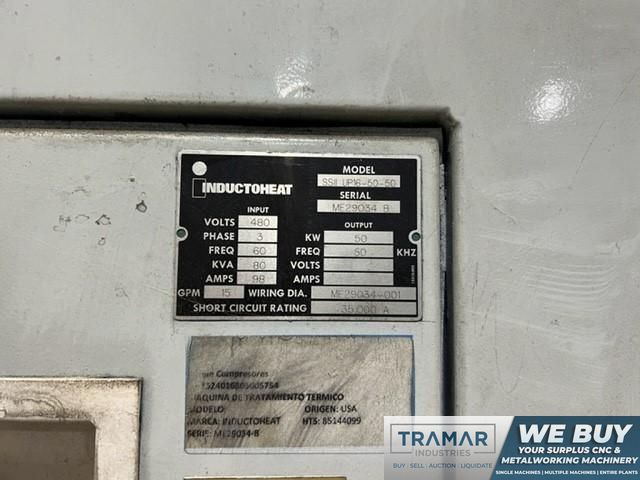

Standard Power Ratings
50 KW

Equipado con:

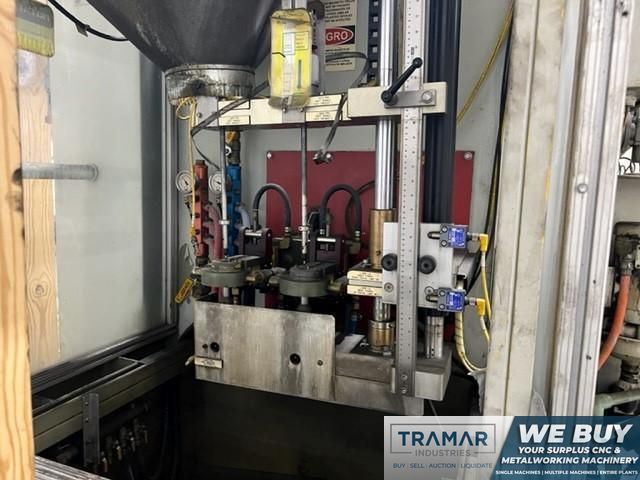

Two Standard Scanning Spindles

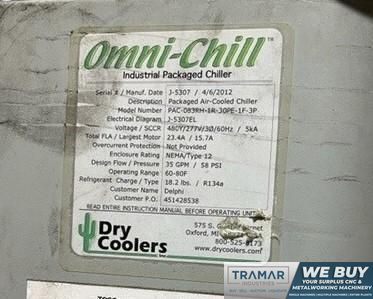

Omni Cool Chiller
