Year 2005
Serial Number SKT15-1030

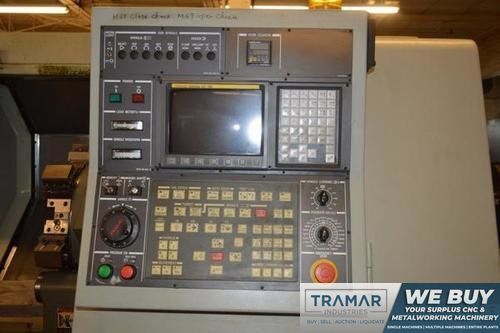

Control Fanuc 0iTB
Chuck Size 6"
Swing 21.7"
Turning Diameter 13.8"
Bar Capacity 1.75"
X-Axis Travel 8.7"
Z-Axis Travel 16.9"
Rapid Traverse (X/Z) 1417 IPM
Spindle Speed 6,000 RPM
Main Motor 15 Horsepower

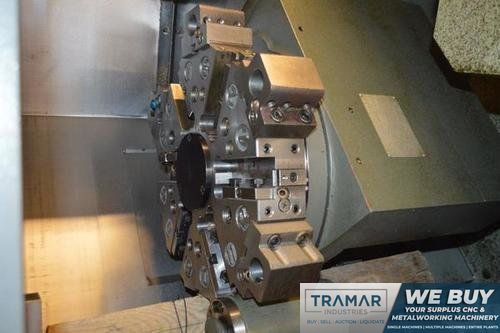

Turret Capacity 12
Tailstock (Y/N) Y
Cutting Hours 2,223
Equipped With:
Chip Conveyor
Coolant System
Fully Programmable Tailstock
Auto Tool Setter
Misc Tool Holders
