Year New 9/2013
Serial Number M444010001053BDE CS

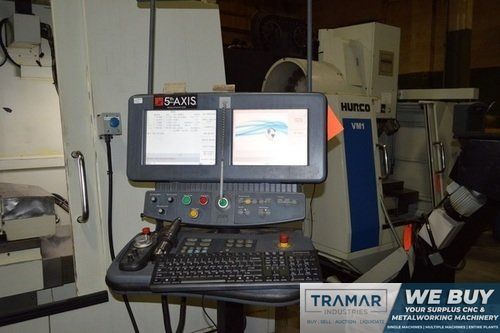

Control MAX 4
Number of Axis 5
Table Size 24" X 50"
Table Capacity 1,100 Lbs
X-Axis Travel 42"
Y-Axis Travel 24"
Z-Axis Travel 24"
X-Axis Rapid Feedrate 1378 IPM
Y-Axis Rapid Feedrate 1378 IPM
Z-Axis Rapid Feedrate 1181 IPM
(A) Axis-180 deg 50 RPM
(C) Axis-360 deg 33 RPM
Cutting Rate 600 IPM
Spindle Speed 12,000 RPM
Spindle Taper 40
Max tool Length/diameter 11.8"/2.9"
Coolant Thru Spindle (Y/N) Y
Tool Changer Capacity 40
Spindle Nose to Table (min) 6"
Machine Weight 16,700 Lbs
Equipped With:
WinMax Software Version 09.01.263.12 (Aug 24, 2016)

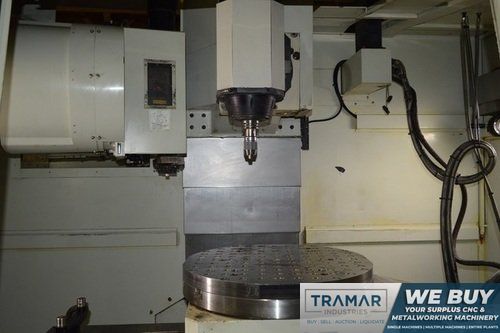

(5) Axis Design with +/- 90° Rotation on A (spindle) Axis. Rotation (C) with Rotary Table.

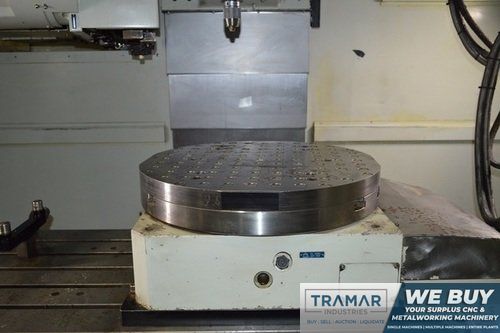

Rotary Table- 23.6" with FCS fixture plate
Coolant Thru Spindle

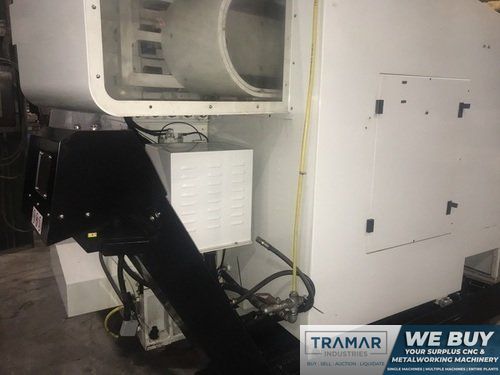

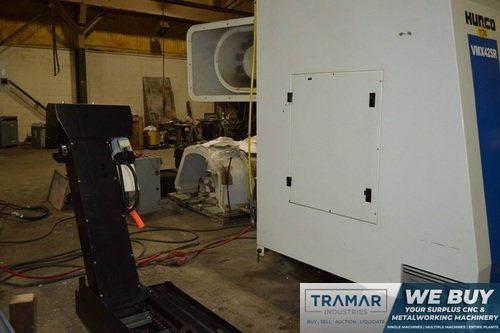

Chip Conveyor

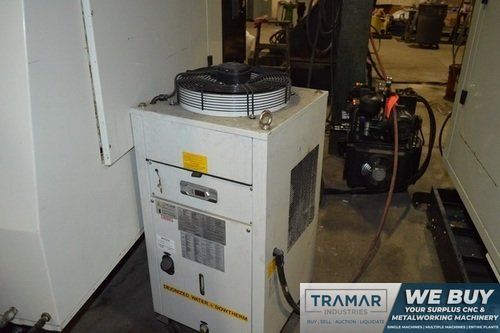

Chiller

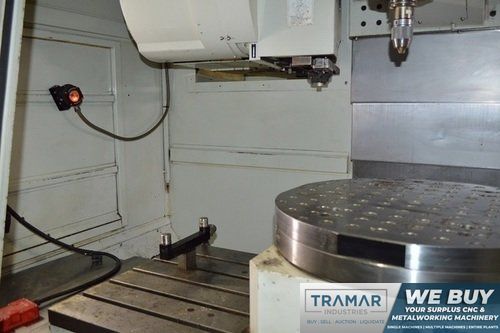

Renishaw Probe
Part Probe and Non Contact Laser Tool Probe
Ultipockets
Insert Pockets
Rigid Tapping
DXF File Transfer
Helical Ramp
3D Mold
NC Conversational
Swept Surface Finish
Simultaneous (5) Axis
Ultimotion
Tool Change Optimization
