Year 2011
Serial Number BLMBOH0002

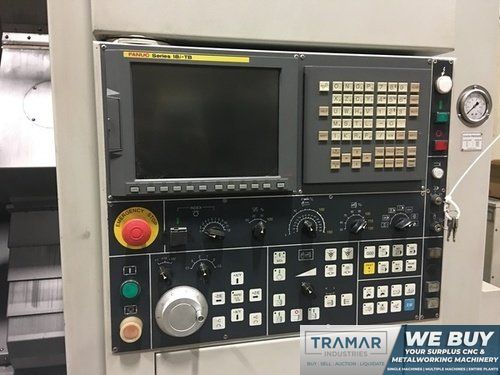

Control Fanuc 18iTB
Number of Axis 6
Chuck Size 10"
Swing 24.41"
Turning Diameter 15"
Center Distance 21.3"
Bar Capacity 3.07"
X-Axis Travel 8.58"
Z-Axis Travel 23.6"
Y-Axis (Y/N) Y
X-Axis Rapid Feedrate 1,181 IPM
Z-Axis Rapid Feedrate 1,181 IPM
Spindle Speed 3,500 RPM
Main Motor 20/25 Horsepower

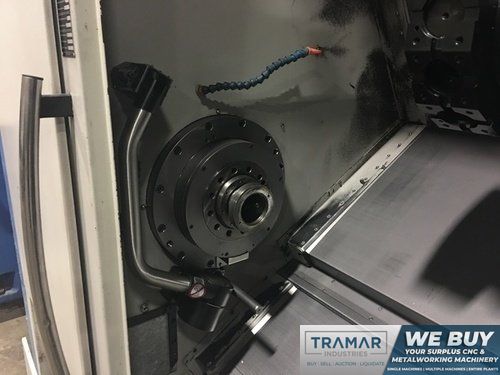

Sub Spindle Chuck Size 6"
Sub Spindle Speed 6,000 RPM
Sub Spindle Motor 20 Horsepower
Live Milling (Y/N) Y
Live Milling Speed 4,000 RPM
Live Milling Motor 7.4 Horsepower
C-Axis (Y/N) Y

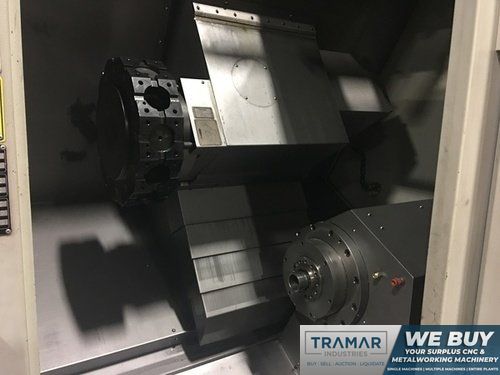

Turret Capacity 12
Tailstock (Y/N) N
Machine Hours 4,695 Cutting
Machine Dimensions 161" x 77.56" x 71.34"H (incl Chip Conveyor)
Machine Weight 15,000 Lbs
Equipped With:
Live Tooling
VDI Turret
Manual Guide I (Conversational Control)
Custom Macro-B
Rigid Tapping
Ethernet
Bar Feed Interface
Renishaw Tool Probe

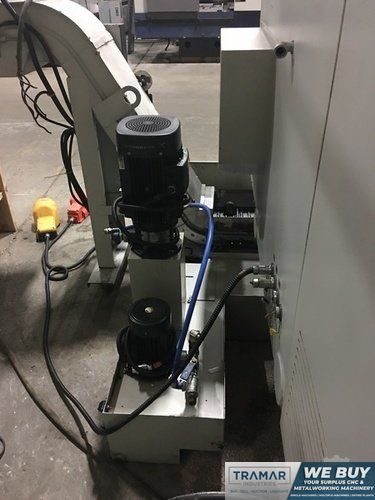

Chip Conveyor
Parts Catcher

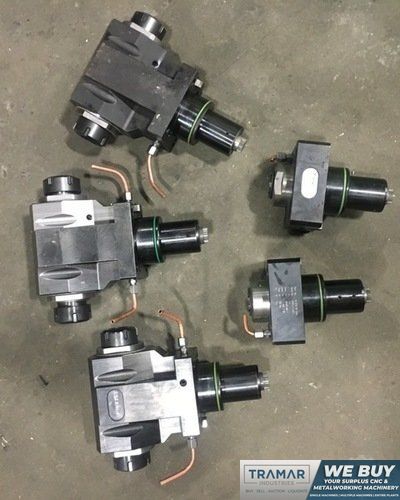

(3) Radial Milling Heads (With Dual Spindles)
(2) Axial Milling Heads
Miscellaneous Static Tool Holders
