Year 2010

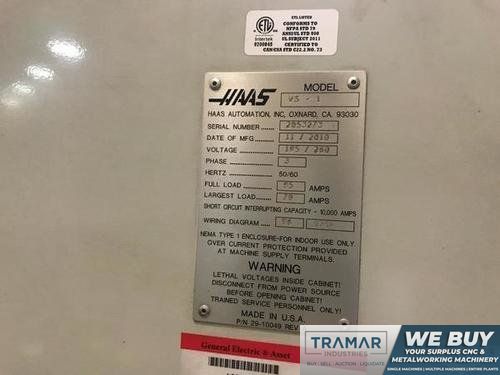

Serial Number 2053273

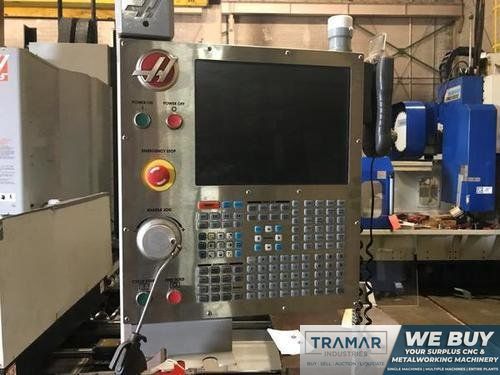

Control Haas
Number of Axis 3

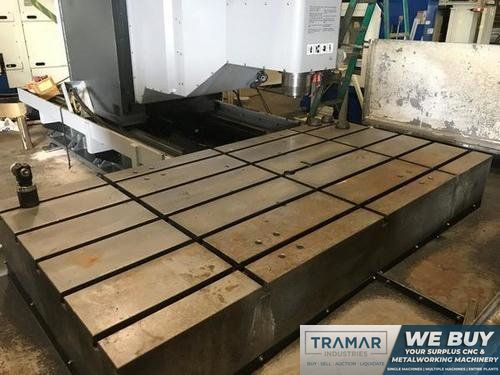

Table Size 40" x 80"
Table Capacity 10,000 Lbs
Year 2010
Serial Number 2053273
Control Haas
Number of Axis 3
Table Size 40" x 80"
Table Capacity 10,000 Lbs
X-Axis Travel 84"
Y-Axis Travel 50"
Z-Axis Travel 50"
X-Axis Rapid Feedrate 500 IPM
Y-Axis Rapid Feedrate 500 IPM
Z-Axis Rapid Feedrate 500 IPM
Spindle Speed 7,500 RPM
Spindle Taper CAT 50
Main Motor 30 Horsepower
Coolant Thru Spindle (Y/N) Yes

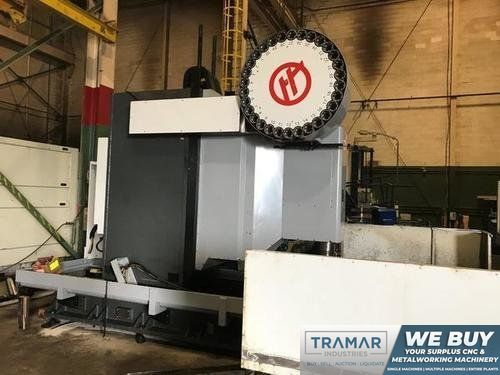

Tool Changer Capacity 30
Machine Dimensions 265" x 153"
Machine Weight 47,000 Lbs
Equipped With:
Rigid Tapping
Chip Auger
High Speed Communications
Remote Handwheel
USB Port
2 Speed Gearbox
TCS1000 Coolant Thru Spindle Unit
