Year 2006
Control Haas
Number of Axis 4
Table Size 52" X 18"
Table Capacity 1,000 LBS
X-Axis Travel 50"
Y-Axis Travel 20"
Z-Axis Travel 25"
X-Axis Rapid Feedrate 1,400 IPM
Y-Axis Rapid Feedrate 1,400 IPM
Z-Axis Rapid Feedrate 1,400 IPM
Spindle Speed 12,000
Spindle Taper 40
Main Motor 30 Horsepower
Coolant Thru Spindle (Y/N) N
Tool Changer Capacity 24
Equipped With:

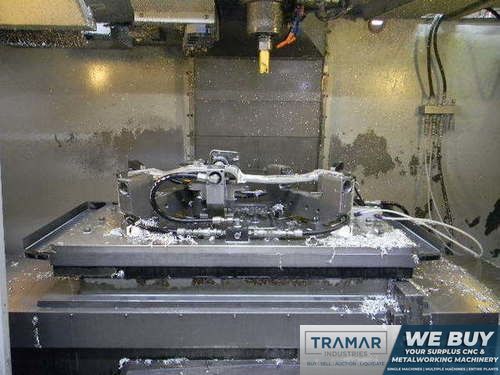

Automatic Pallet Changer with 2 Pallets (1,000 lbs Capacity)
High Speed Side Mounted Tool Changer
Auger Style Chip Conveyor
Rigid Tapping
Programmable Coolant
Expanded Memory to 16 MB
4th Axis Drive
Spindle Orientation
Coordinate Rotation and Scaling
Visual Quick Code Programming
5 spare M functions
