Specifications
Brand: Haas

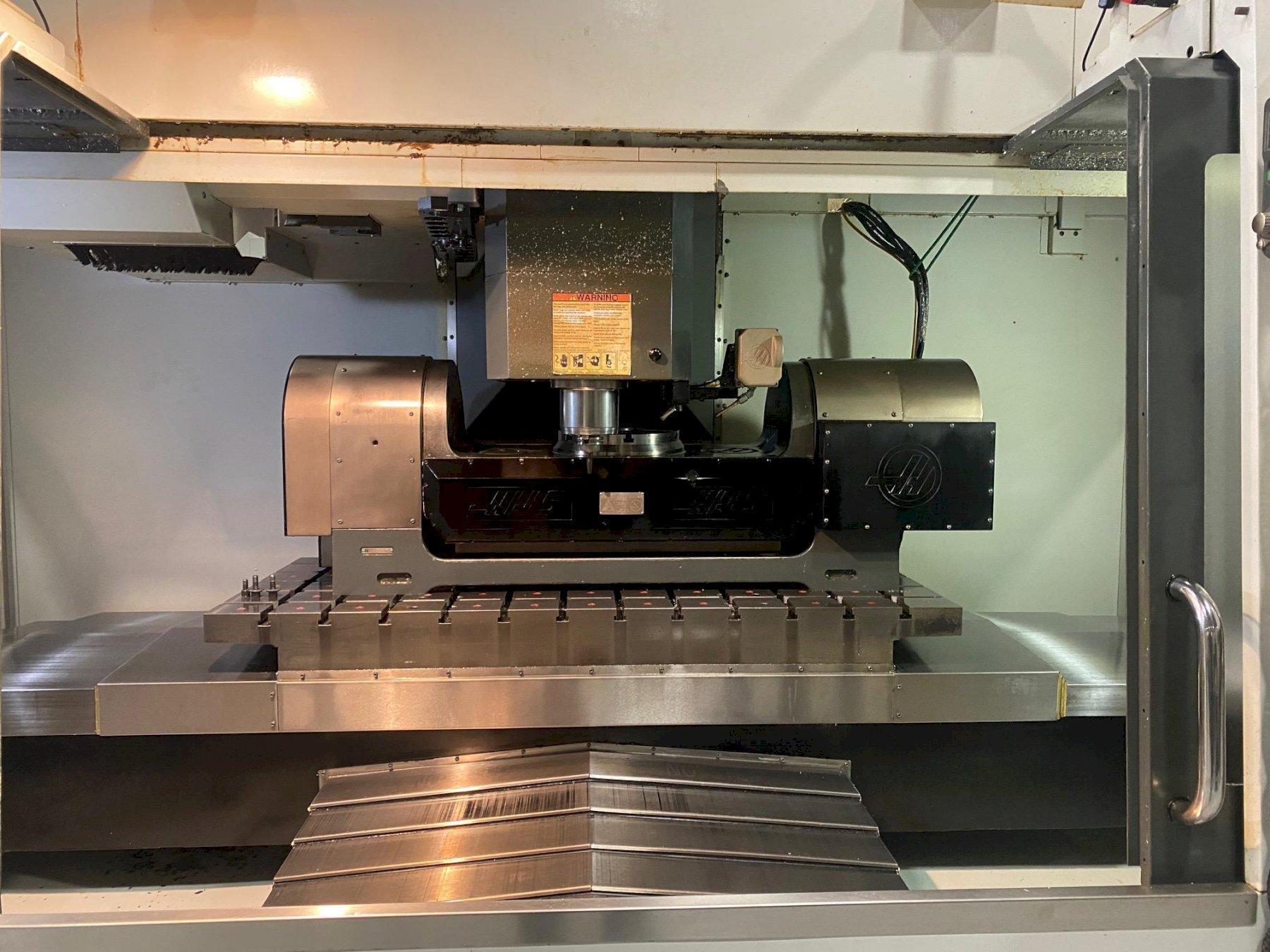

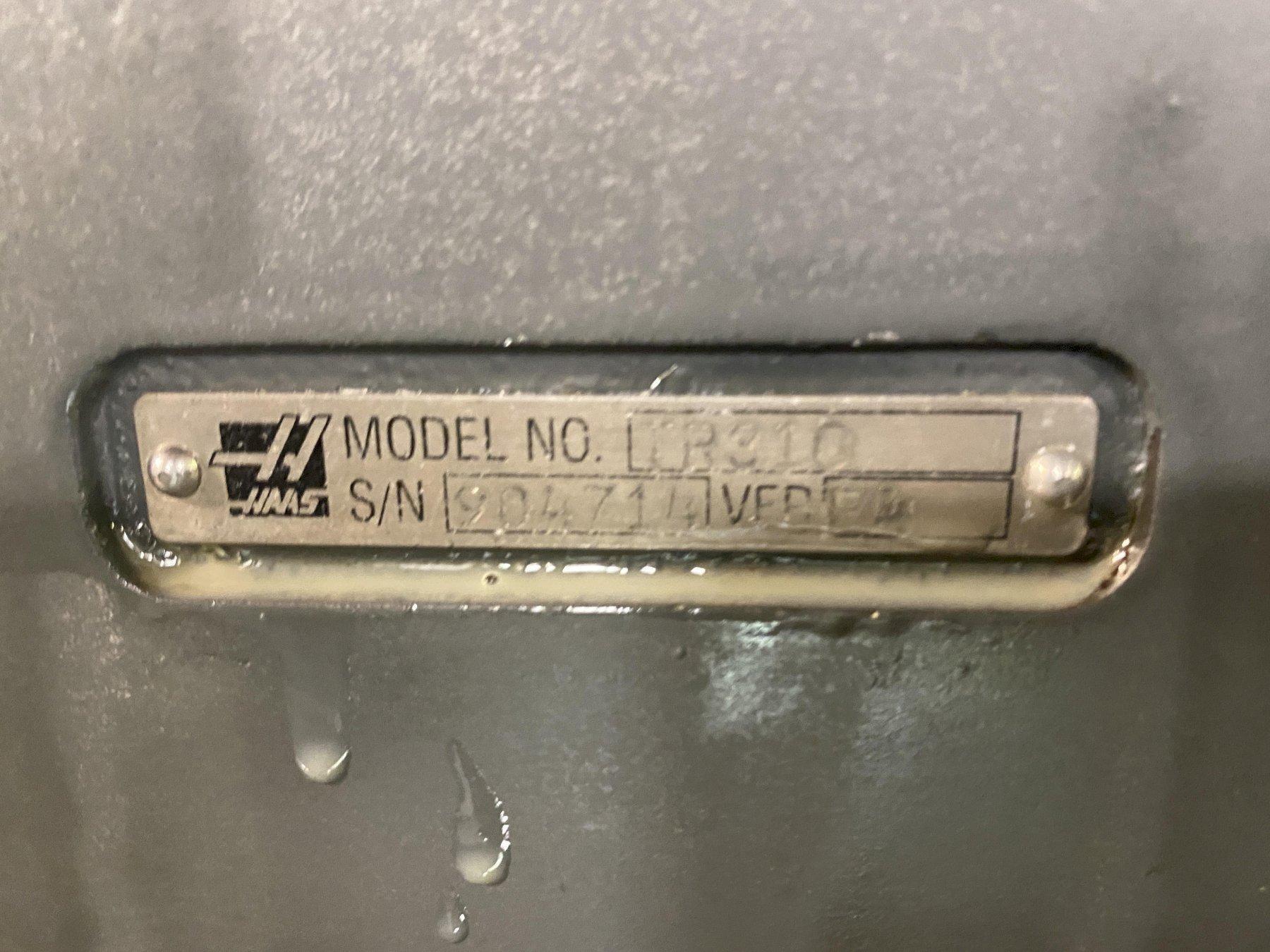

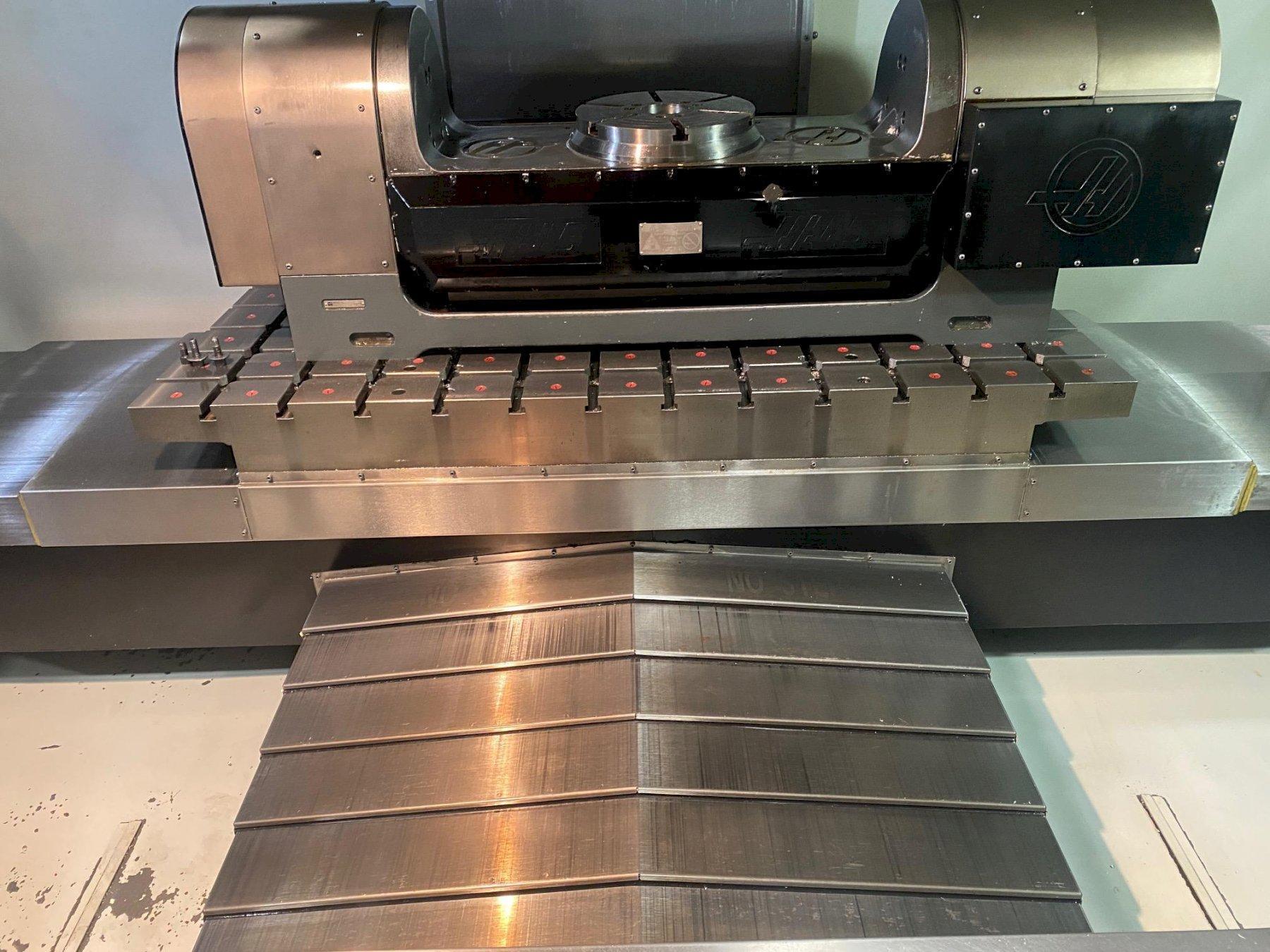

Model: TR-310
Specifications:
Platter diameter: 12.20"
Max weight on platter: 500 Lbs.
Part swing max: 31"
Number of T-slots: 6 @ 60 degrees
Spindle A (tilt)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 1,000 ft lbs.
Spindle B (rotary)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Runout max: 0.0010"
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 500 ft lbs.
Indexing A (tilt)
Max rotation / step: +/- 120 degrees
Resolution: 0.001 degrees
Indexing B (rotary)
Max rotation / step: 999.999 degrees
Air pressure max: 150 psi.
Weight: 2,105 Lbs.
