Year 2004
Serial Number 68873

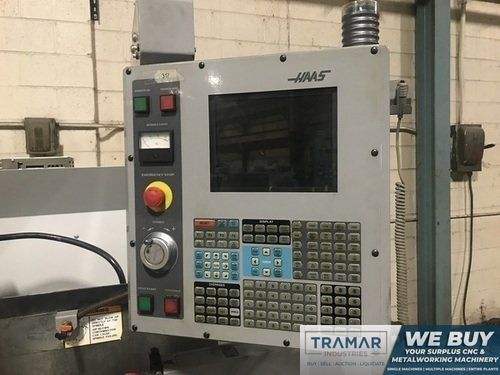

Control HAAS
Chuck Size 10"
Swing 16"
Turning Diameter 16"
Center Distance 48"
Spindle Bore 3"
X-Axis Travel 8"
Z-Axis Travel 48"
Rapid Traverse (X/Z) 75/150 IPM
Spindle Speed 2,000 RPM
Main Motor 12 Horsepower
Tailstock (Y/N) Y
Machine Weight 4,600 lbs
In Motion Time 6,443 Hours
Equipped With:

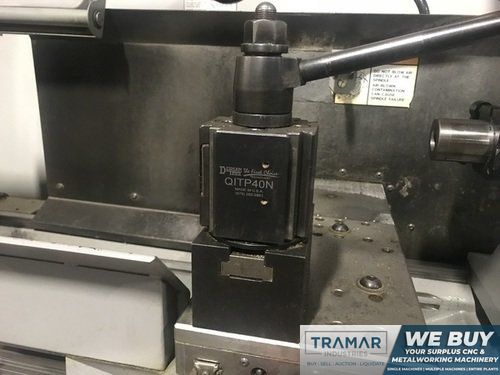

Dorian Tool Post
10" 3 Jaw Chuck
Floppy Drive
Work Light
Splash Guard
Chuck Guard

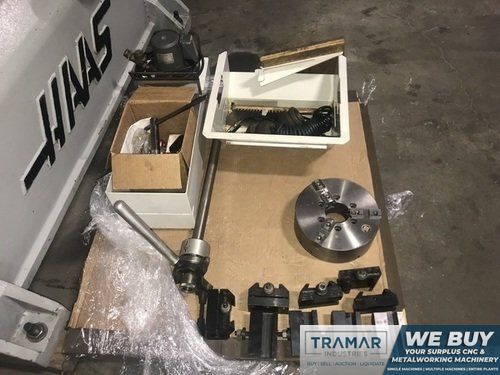

Tooling
Coolant Tank & Pump
