Haas DT-1 - Centros de Máquinado Verticales

Modelo: DT-1
Año: 2015
Número de Inventario: 490800 Sold
Características Destacadas:
20,000 rpm Optional Spindle
300 psi Coolant Thru Spindle
Renishaw Probing (WIPS)
20 Station Sidemount Tool Changer
Excellent Condition!!

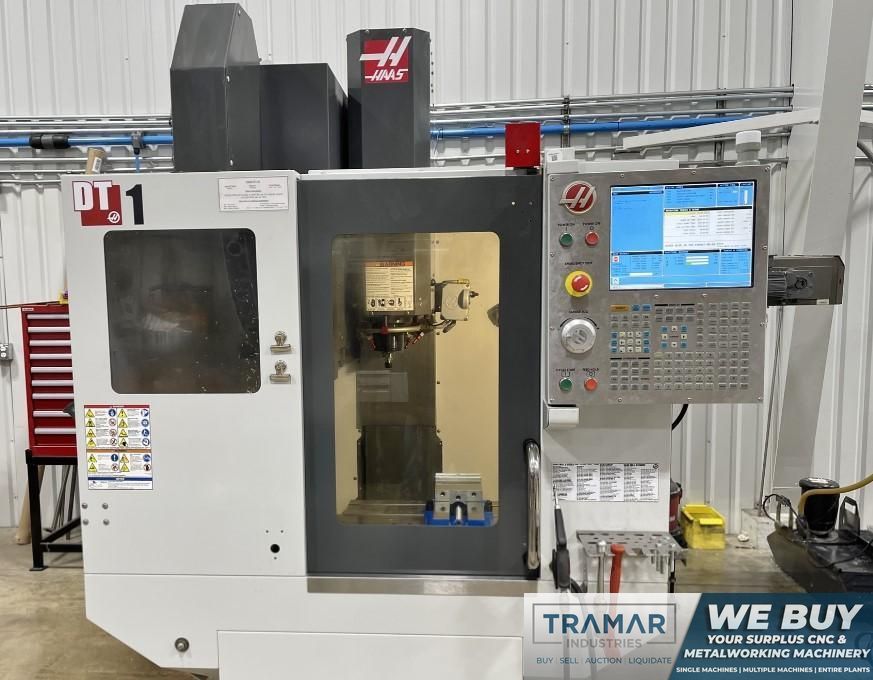

Haas DT-1 CNC Vertical Machining Center For Sale 2015
Especificaciones
Año
2015
Tipo de Control CNC
Haas
Numero de Ejes
3
medida de la mesa
26" x 15"
Tamaño de la Mesa
250 pounds
Recorido (Eje X)
20"
Recorido (Eje Y)
16"
Recorido (Eje Z)
15.5"
Recorido en Rapido (X/Y/Z)
2,400 ipm
Cono de Husillo
BT 30
Velocidad de Husillo
20,000 rpm
Motor
15 hp
Refrigeración a Través Del Husillo
yes
Numero de herramientas en el ATC
20
Dimension de la Máquina
100" x 80" x 98"
Peso de lan Máquina
5,200 pounds

Equipado con:

- 20,000 Rpm Optional Spindle
- Through Spindle Coolant (300 Psi) - to Be Used at Speeds under 12,000 Rpm

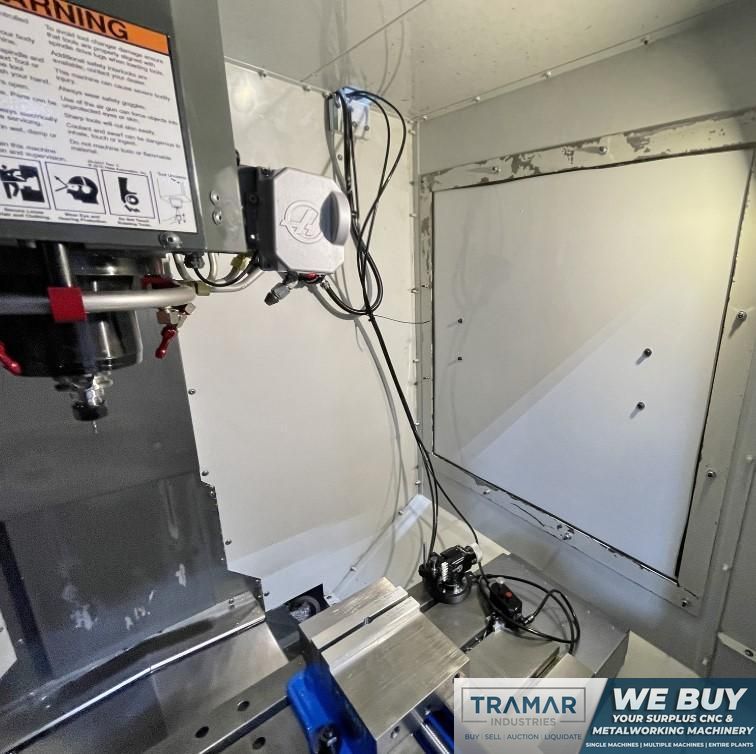

- Renishaw Wireless Intuitive Probing System (Wips)
- 20 Position Side Mount Tool Changer
- Dual Augers for Chip Removal

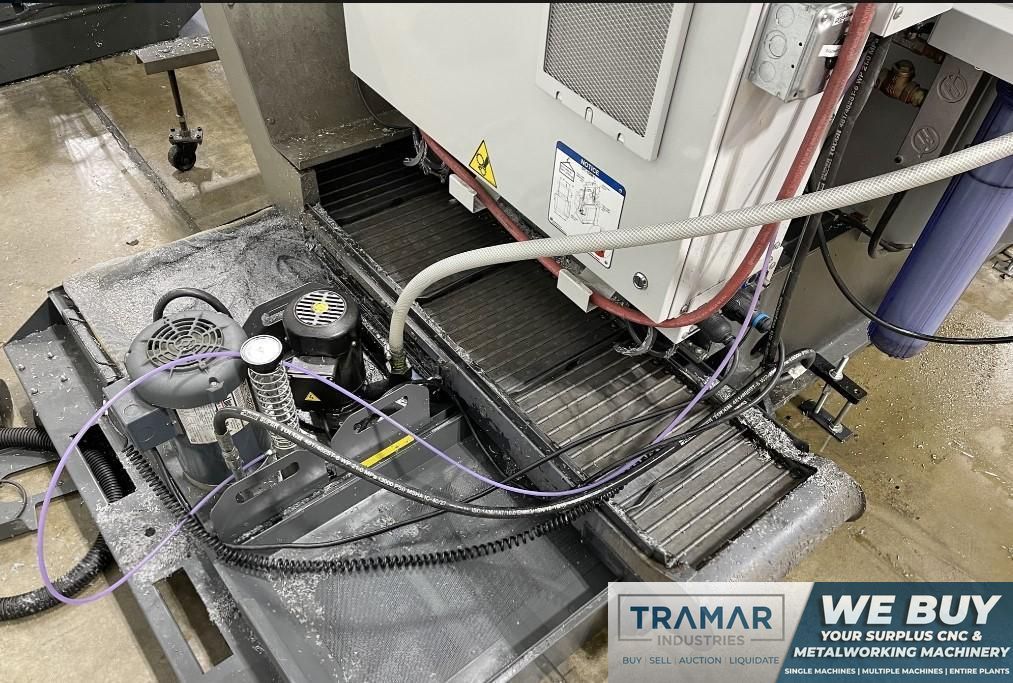

- Chip Conveyor with Nigh-neck Discharge
- Programmable Coolant
- High-speed Machining (with Look-ahead)
- Coordinate Rotation & Scaling
- M19 Spindle Orientation
- Advanced Tool Management
- Spindle Load Monitor
- Spindle Orientation
- Rigid Tapping
- Quick Code
- Macros
- 750 Mb Expanded Memory
- Air Gun
- USB Port

* New Spindle Installed 5/2019 - Very Little Use after Install

Hours of Use as of 4/8/2022:
* Servo Time: 3,670 Hours
* Motion Time: 303 Hours
* Spindle Time: 292 Hours
*** This Unit Was Demonstration Machine for Haas Corp 5/2015 - 11/2016
** Replacement Cost New for This Unit as Equipped Above: $94,000
** Machine Is in Plant, under Power. Available Immediately.
