Recommended Work Size 11.8" x 4.7"
No. Of Tool Stations 12 + 12
Turrets Turret Index Time 1.2 Sec.
Turret Mechanism Two Piece Coupling
(2) Micro centric 3 jaw 10" hydraulic chucks

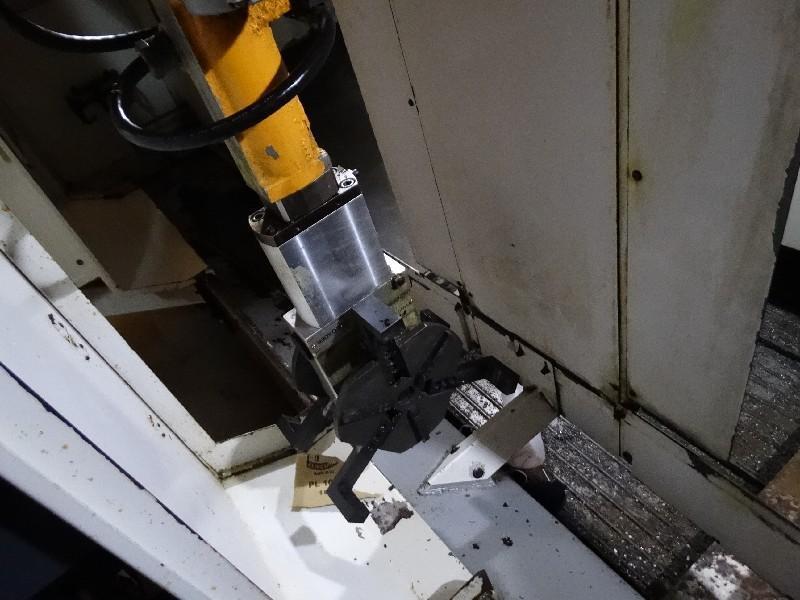

Swing arm type Robot (L292-B1)
48" x 96" Infeed conveyor system
Turn over stations, one each side
Carrying Capacity (22 +22) lbs
(2) Two Marposs 33y measuring systems
Exit roller type conveyor

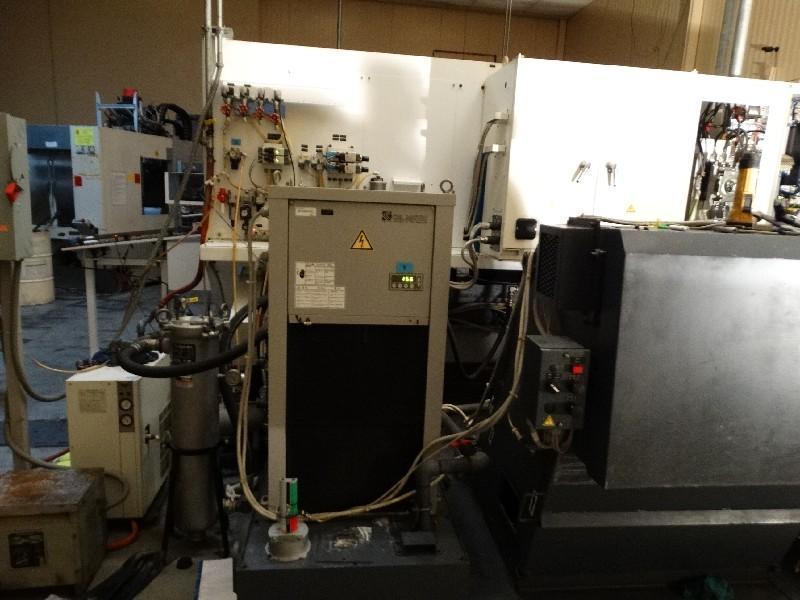

High pressure coolant system
Rear exit lift up type chip conveyor
Spindle Oil cooler
(8) Total boring bar holders for both turrets
