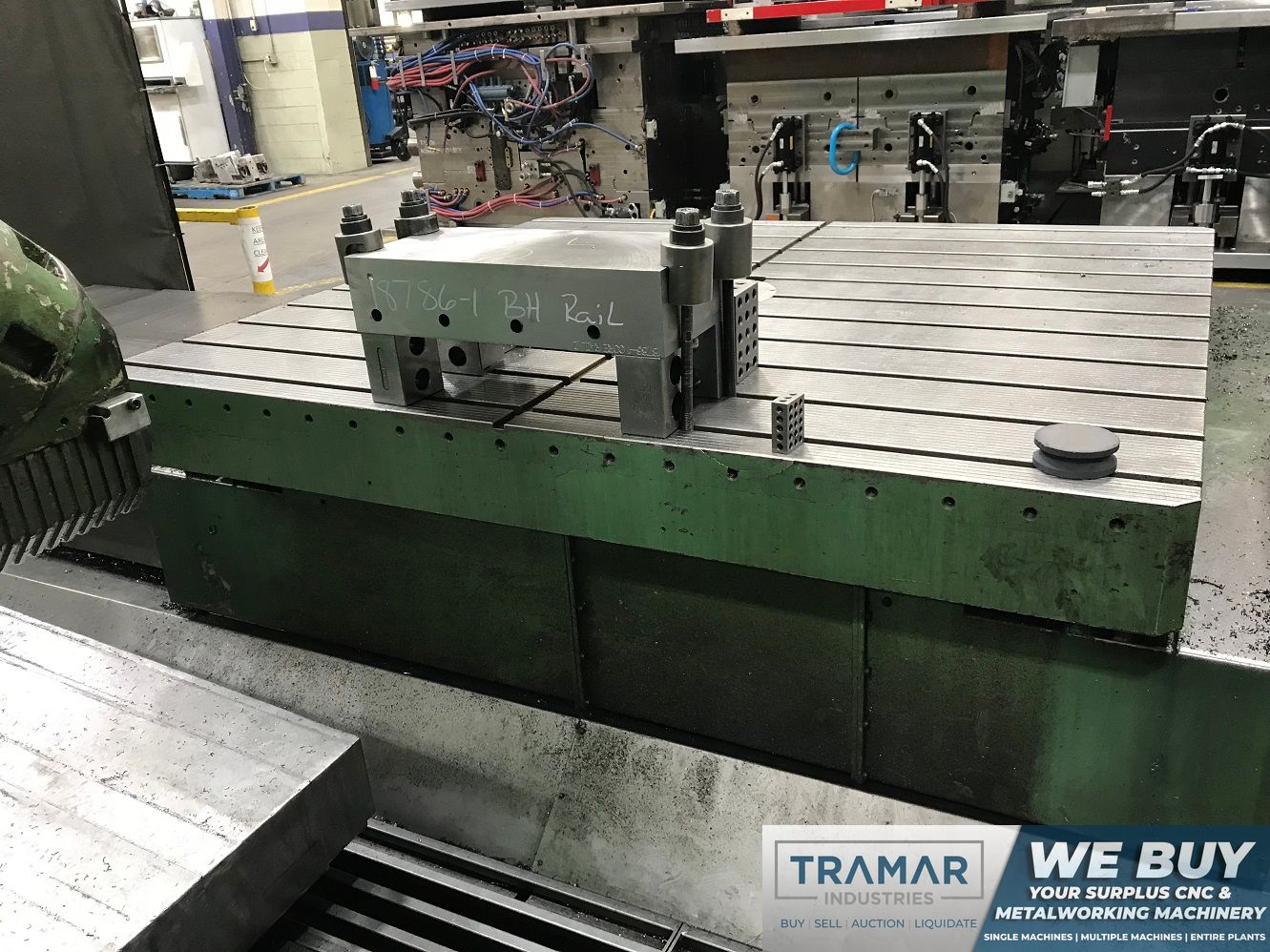

ROTARY TABLE SIZE.................................................................. 68" X 78"
TABLE CAPACITY....................................................................... 40,000 LBS
TRAVELS (X)................................................................................. 118"
(Y)................................................................................. 78"
(Z).................................................................................. 40"
(W)................................................................................. 58"
SPINDLE TAPER............................................................................ 50 TAPER
SPINDLE SPEEDS.......................................................................... 190 - 3000
RAM CROSS SECTION................................................................. 17.7" X 19.6"
SPINDLE NOSE DIAMETER.......................................................... 5.12"

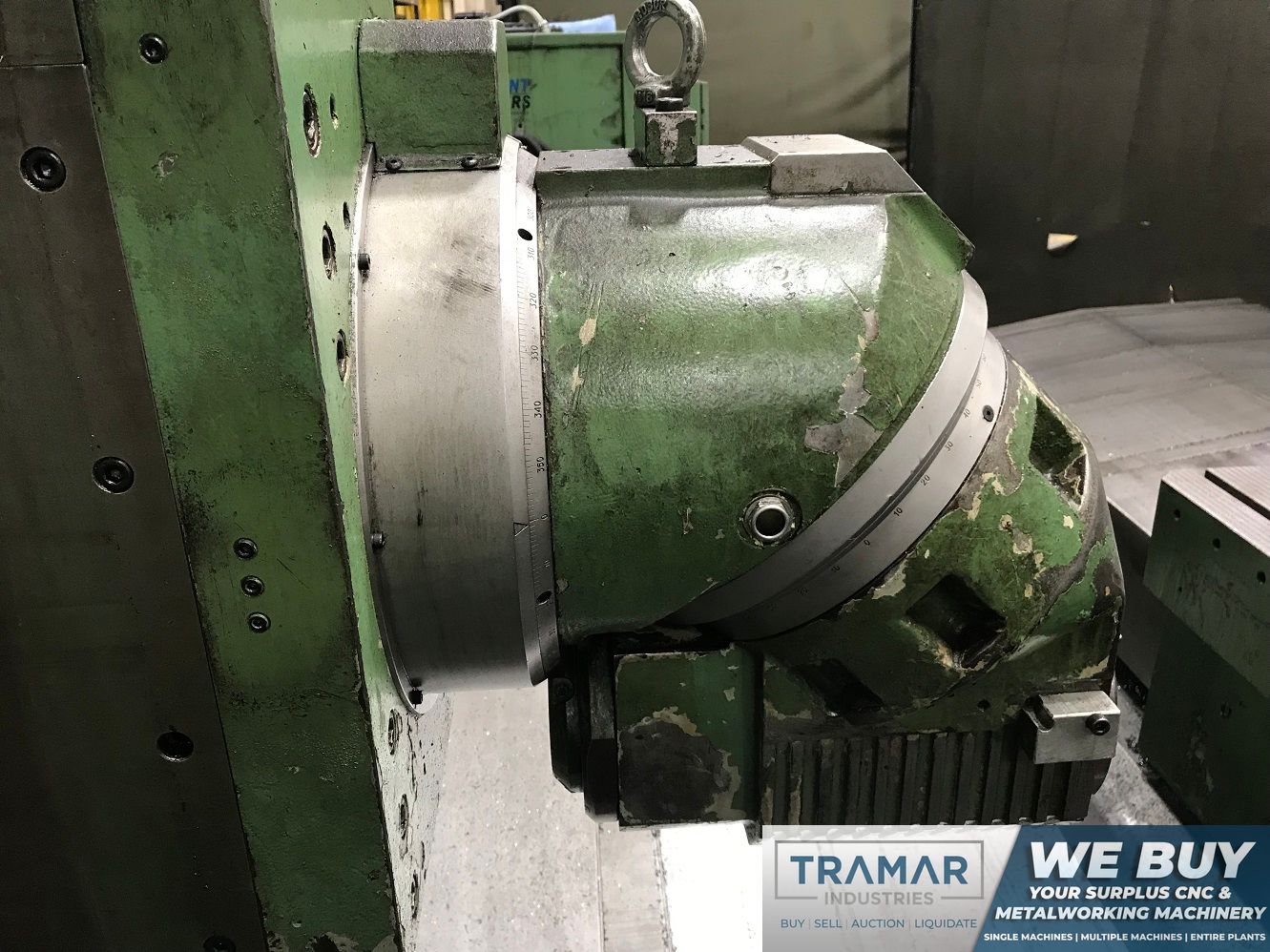

UNIVERSAL CNC INDEXING MILLING HEAD.......................... 2.5 X 1 DEGREE
SPINDLE MOTOR........................................................................... 40 HP
TOOL CHANGER............................................................................ 40 ATC
EQUIPPED WITH:

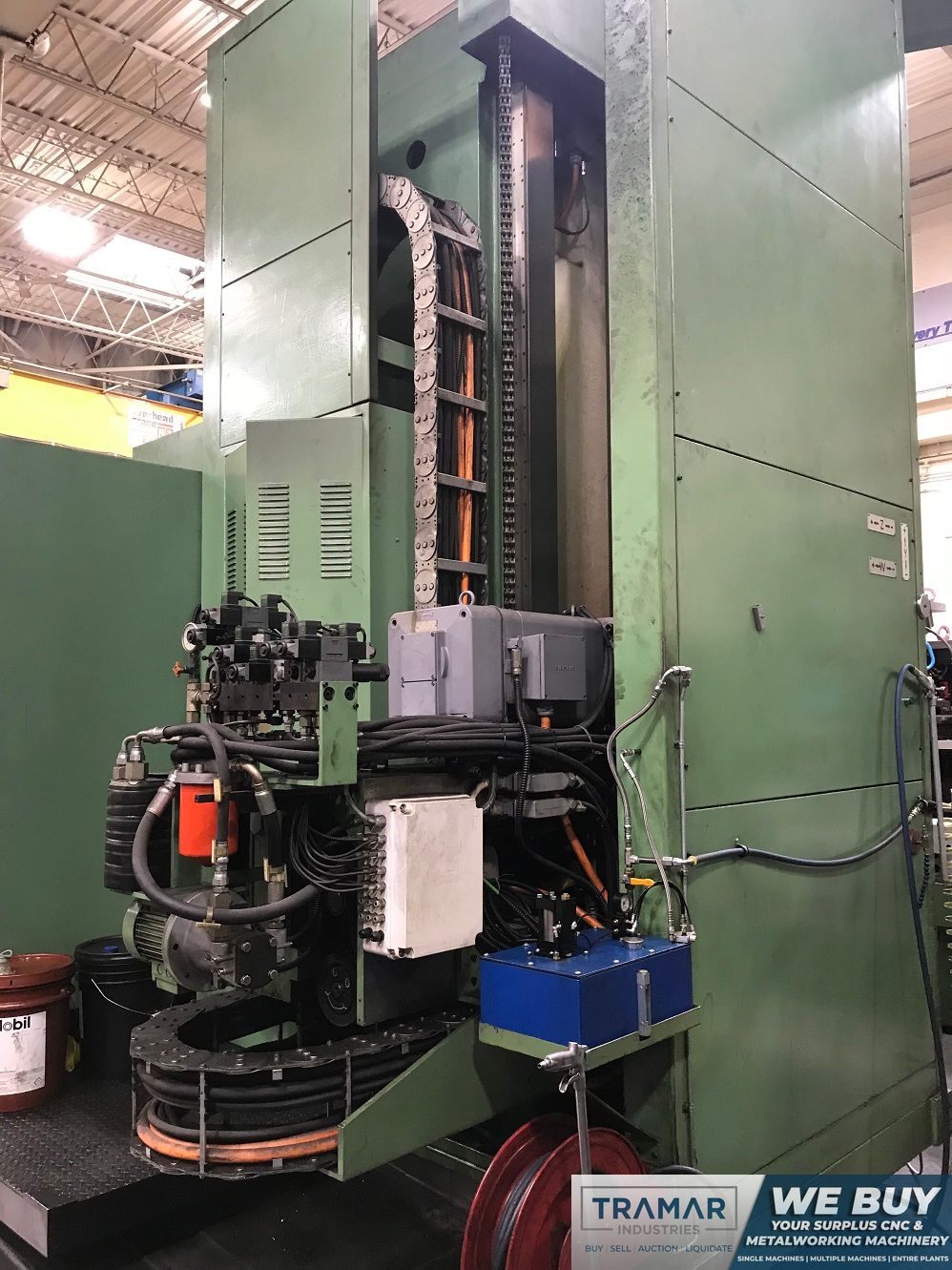

RAM TYPE CONSTRUCTION
(2) HEADS 3 + 2 INDEXING HEAD FULLY PROGRAMMABLE AND STRAIGHT
MILLING HEAD ATTACHMENT
FULL 4TH AXIS ROTARY TABLE (360,000 POSITIONS)
SCALES & ENCODERS

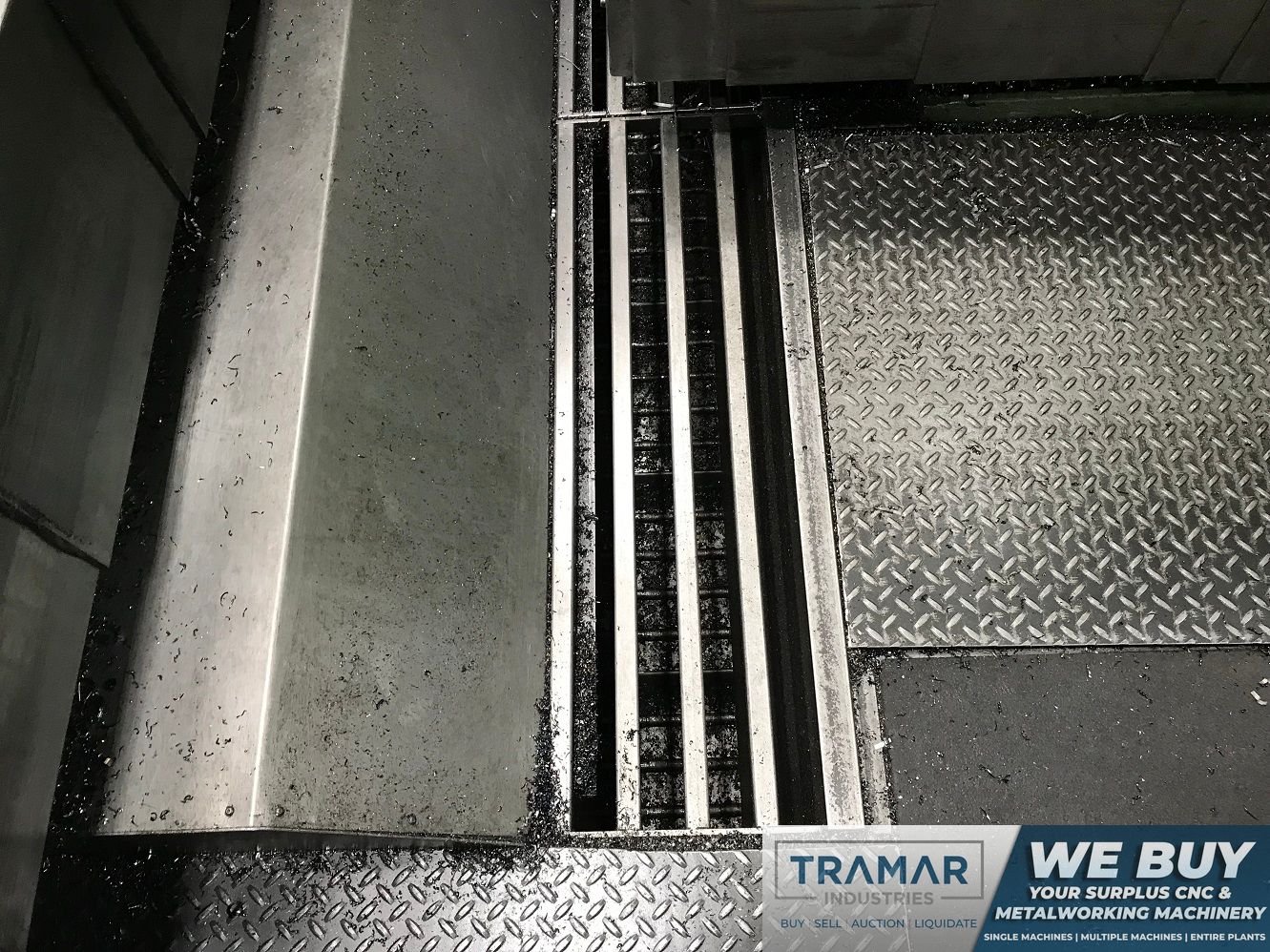

CHIP CONVEYOR
HAND PENDANT CONTROLS

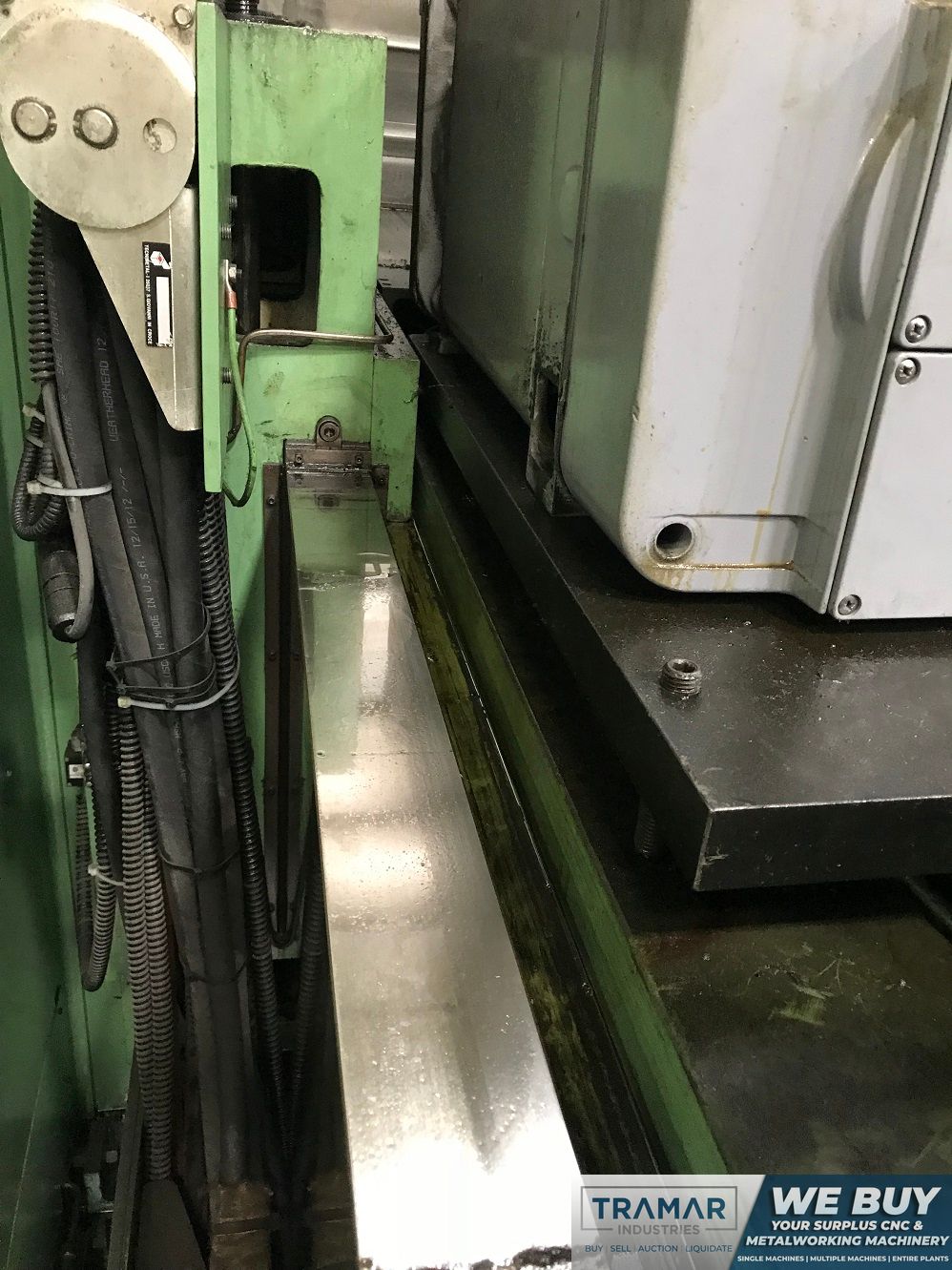

RETRACTABLE STEEL WAYCOVERS
OIL CHILLER
ETHERNET
