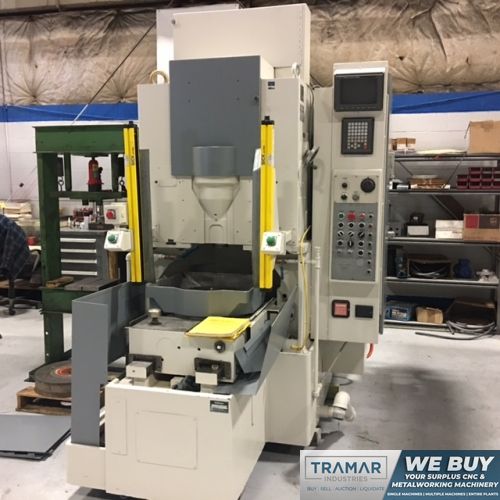

Fellows Gear Shapper (model 10-2) - Gear Accessories

Compartir Máquina

Especificaciones Imprimir especificaciones

Modelo: Gear Shapper (model 10-2)

Año:

Número de Inventario: 11902 Sold

Tipo: Gear Accessories

Fabricante: Fellows

Características Destacadas:
2 Axis CNC Controlled

Equipado con:

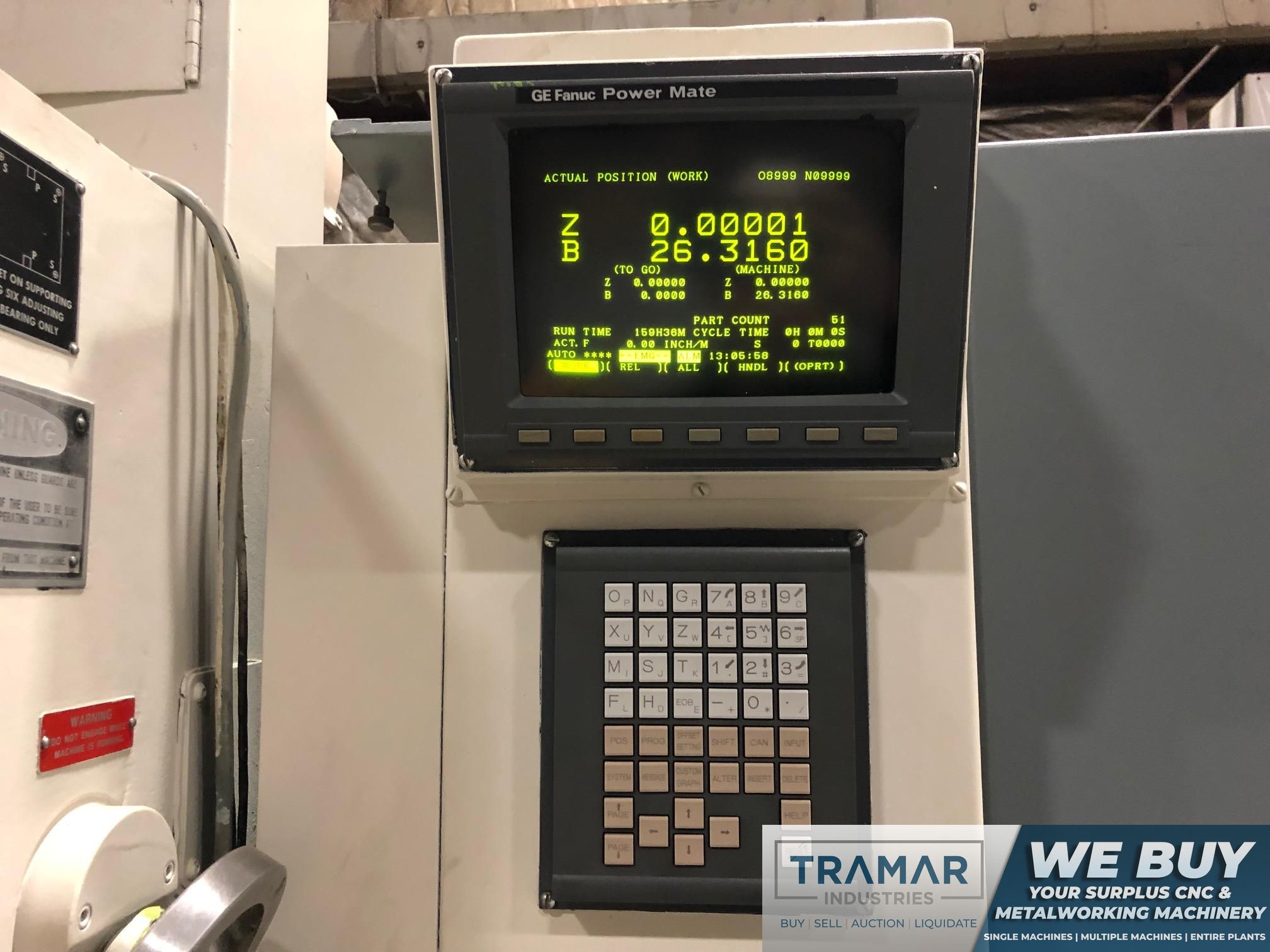

CNC Control	Fanuc GE Power Mate
Maximum External Pitch Diameter	10”
Maximum Internal Pitch Diameter	10”
Diametral Pitch – Spur Gears	4”
Diametral Pitch – Helical Gears	5”
Maximum External Face Width	2”
Maximum Internal Face Width	2”
Helix Angle (Standard Guides)	Spur Gear
Bore Through Spindle	3.5”
Spindle Diameter	3.543”
Work Surface/Spindle Underside Clearance	13-15/64
Maximum Fixture OD	19”
Machine Weight	11,000 Lbs

Especificaciones

Pulgadas

Año

CNC Control	Fanuc GE Power Mate
Maximum External Pitch Diameter	10”
Maximum Internal Pitch Diameter	10”
Diametral Pitch – Spur Gears	4”
Diametral Pitch – Helical Gears	5”
Maximum External Face Width	2”
Maximum Internal Face Width	2”
Helix Angle (Standard Guides)	Spur Gear
Bore Through Spindle	3.5”
Spindle Diameter	3.543”
Work Surface/Spindle Underside Clearance	13-15/64
Maximum Fixture OD	19”
Machine Weight	11,000 Lbs
