Year 2002

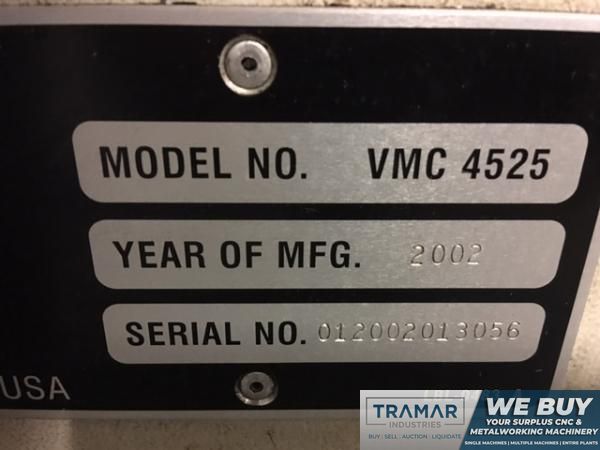

Serial Number 012002013056

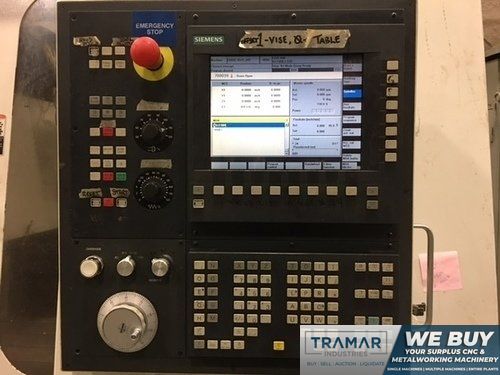

Control Siemens 840D
Number of Axis 3
Table Size 25" x 53.5"
Table Capacity 4,250 Lbs
X-Axis Travel 45"
Y-Axis Travel 25"
Z-Axis Travel 32"

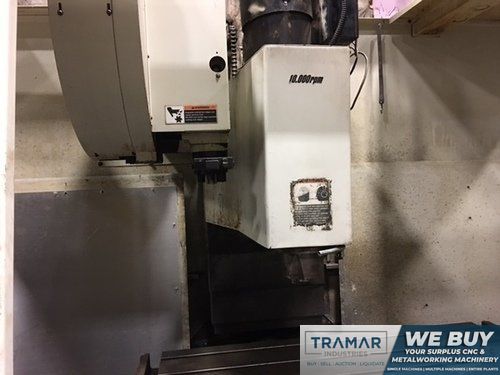

Spindle Speed 10,000 RPM
Spindle Taper CAT-40
Coolant Thru Spindle (Y/N) N

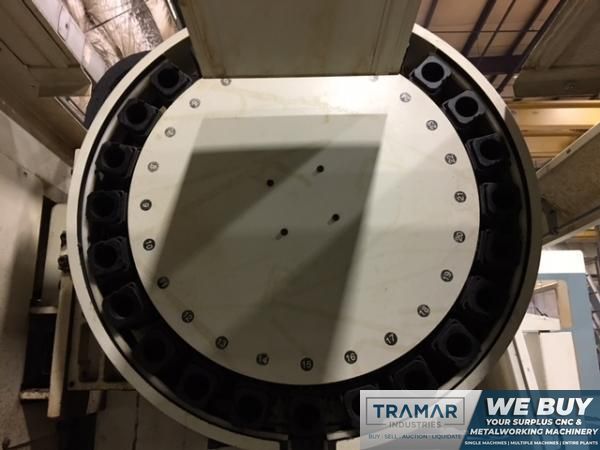

Tool Changer Capacity 24
Machine Dimensions 106" x 84" x 101"H
Machine Weight 13,600 Lbs
Equipped With:
Siemens 840D
Side-Mounted Tool Changer
