Year 2012
Serial Number ML0111-000325

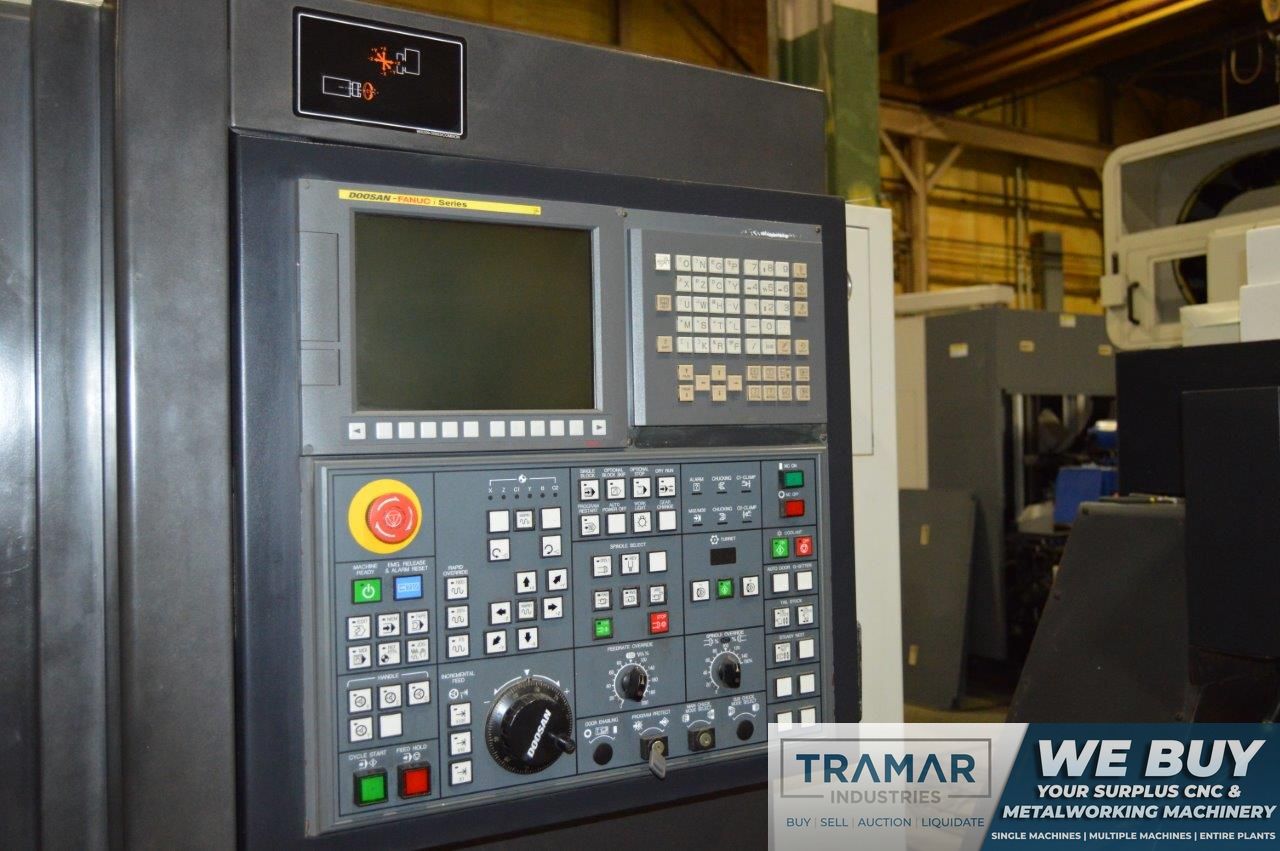

Control Fanuc OiTD
Number of Axis 4
Chuck Size 12"
Swing 30.7"
Turning Diameter 14.8"
Center Distance 50.4"
Bar Capacity 3.0"
X-Axis Travel 10.2"
Z-Axis Travel 53.1"
Y-Axis (Y/N) Y
X-Axis Rapid Feedrate 1,181 IPM
Z-Axis Rapid Feedrate 1,181 IPM
Spindle Speed 2,800 RPM
Main Motor 25/30 Horsepower
Live Milling (Y/N) Y
Live Milling Speed 5,000 RPM
Live Milling Motor 7.5 Horsepower
Tailstock (Y/N) Y

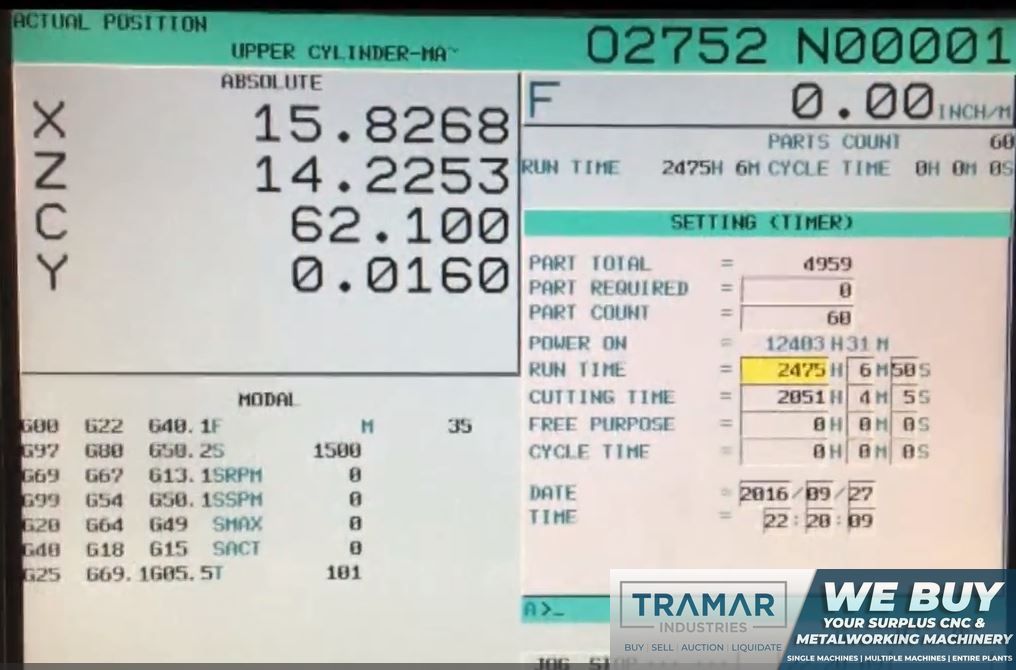

Machine Hours 2,051 Cutting
Machine Weight 16,100 Lbs
Equipped With:

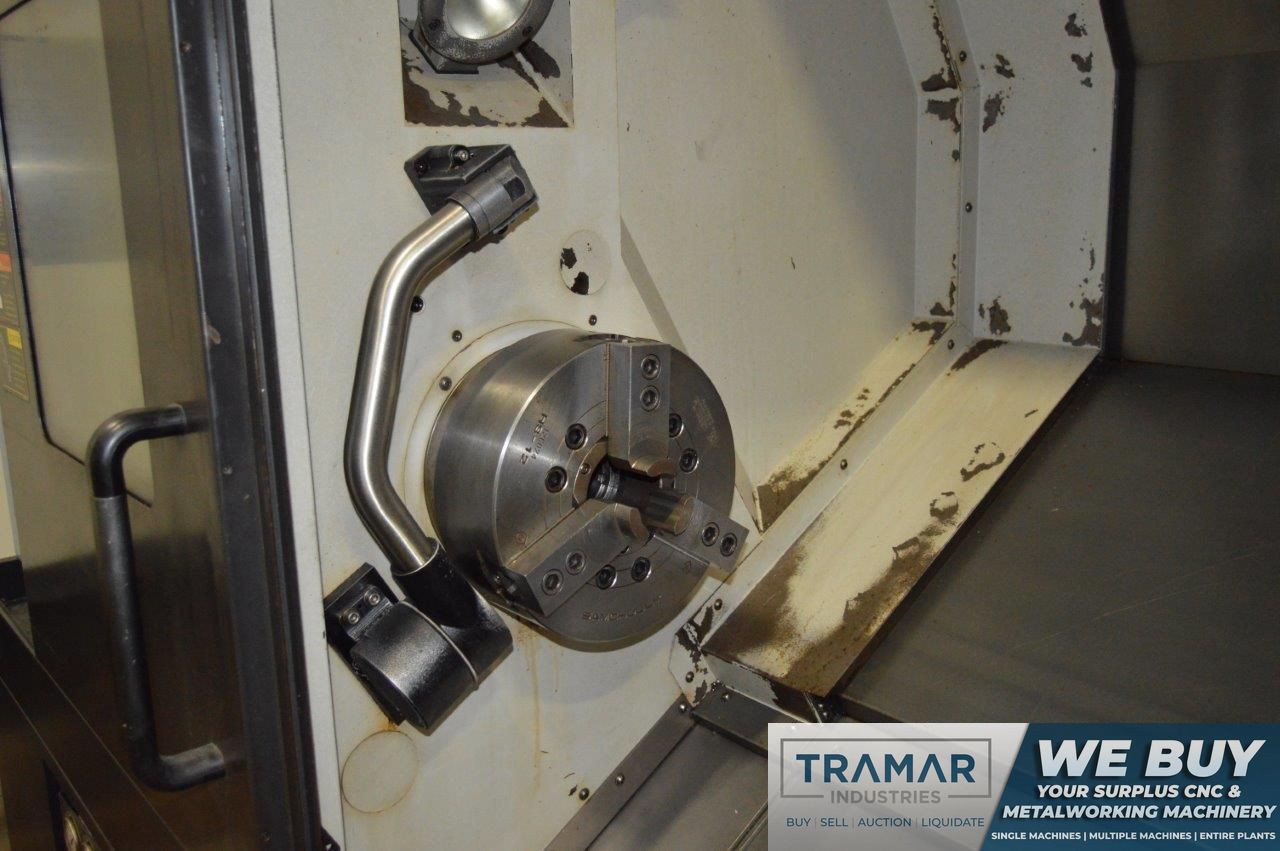

12" Hydraulic Chuck
(Y) axis
SMW SLU-3.2ZS Hydraulic Steady Rest
Tool Presetter
(64) Offsets
(8) Work Coordinate Pairs
1280m (512KB) Parts Program Storage

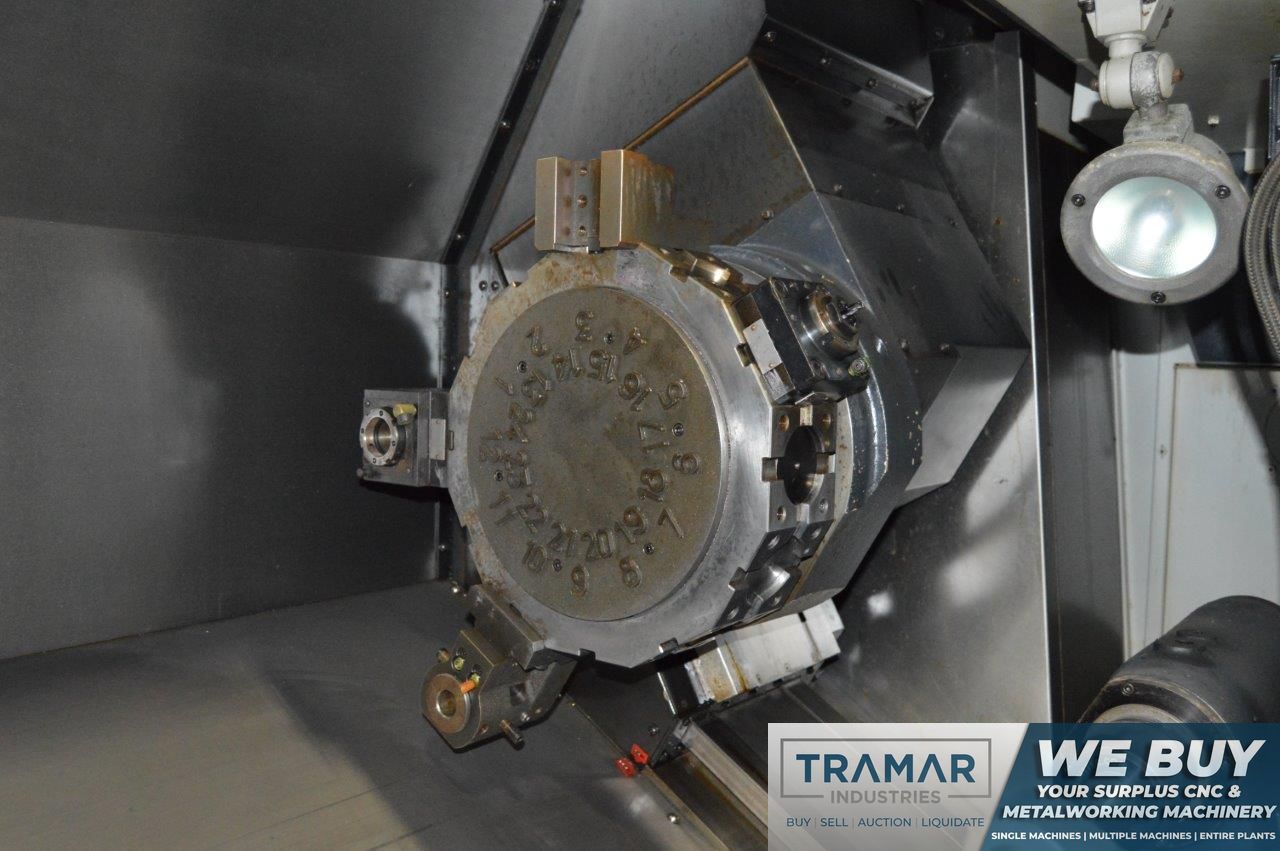

(2) Live Tool Holders (1 Radial/1 Axial)
(4) Static Tool Holders
Ethernet

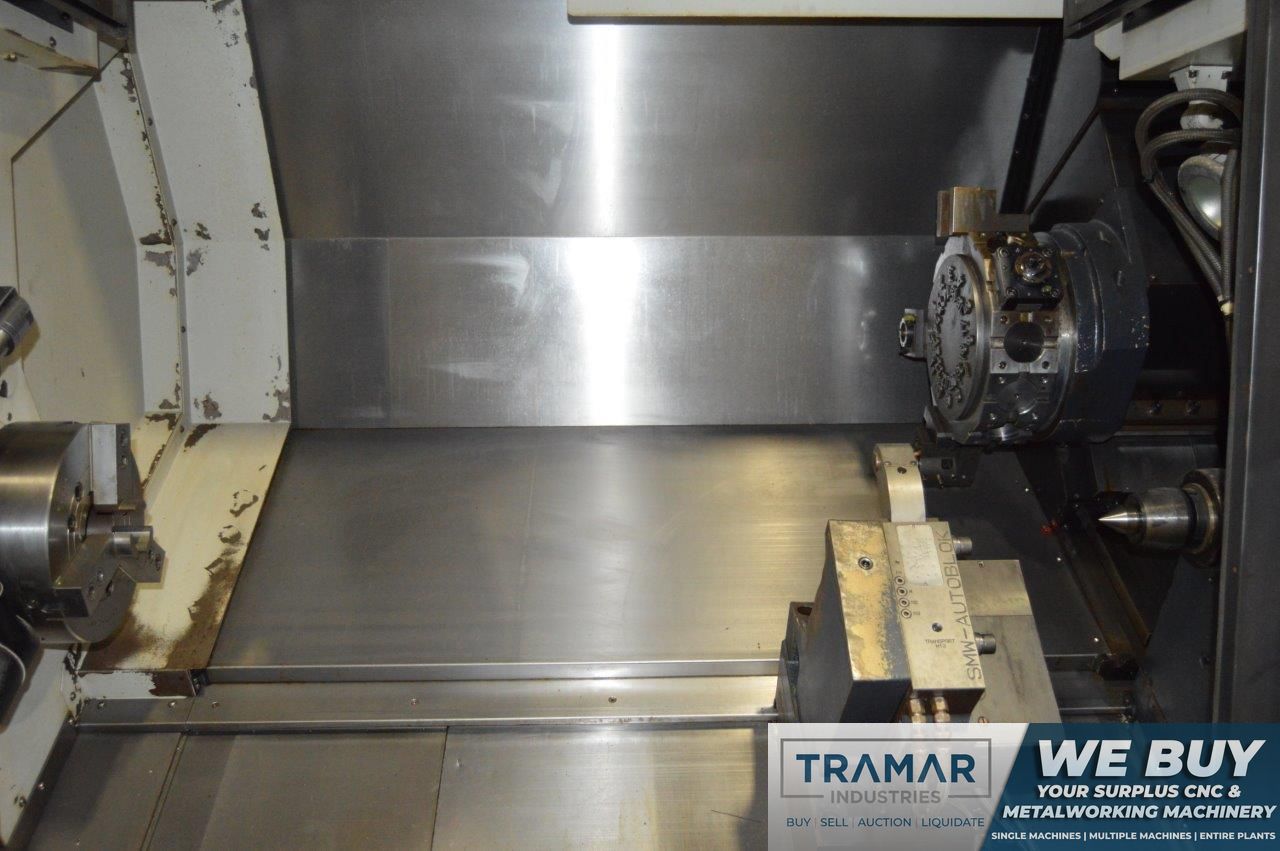

Programmable Tailstock (Live Center)
Chip Conveyor
High Pressure Coolant
Coolant Tank & Pump
