Year 1995
Serial Number MT0065-064
Chuck Size 12"
Swing Over Bed 18.1"
Swing Over Cross Slide 10.6"
Swing in Gap 28.7"
Center Distance 64"
Spindle Speed 20-1600 RPM
Main Motor 10/7.5 Horsepower
Spindle Bore 3"
Longitudinal Feeds 0.0016-0.1"/rev
Threads Per Inch 2-72
Threads Per Millimeter 0.2 -14
Equipped With:
12" (3) jaw chuck

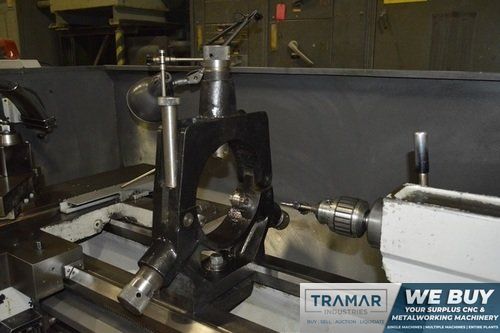

9" Steady Rest
Follow Rest
Taper Attachment

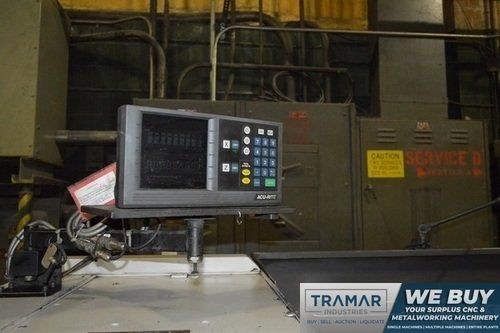

Acu-rite DRO
Geared Head

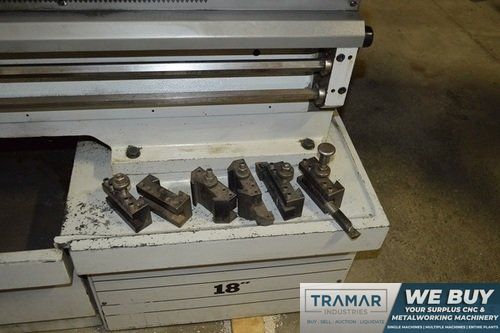

Quick Change Tool Post
Misc Tooling
Chuck Guard
Tailstock
Thread dial
Full Length Splash Guard
Work Light

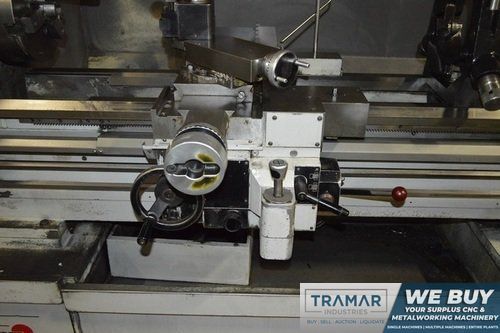

4 Way Joystick Control for Feeds
