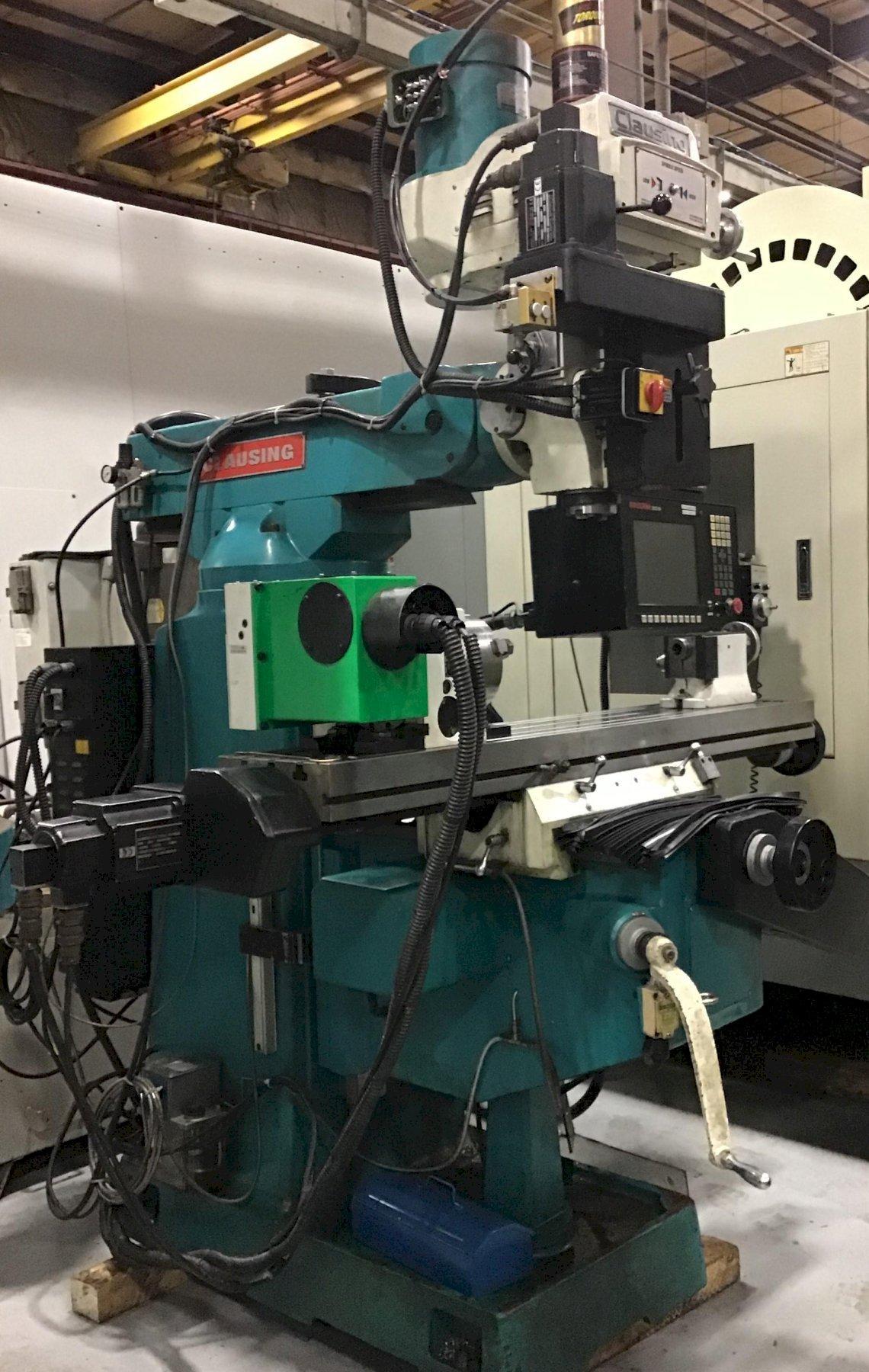

Clausing 4VSQ - Knee Mills

Compartir Máquina

Especificaciones Imprimir especificaciones

Modelo: 4VSQ

Año: 2008

Número de Inventario: 13328 Sold

Tipo: Knee Mills

Fabricante: Clausing

Características Destacadas:

Equipado con:

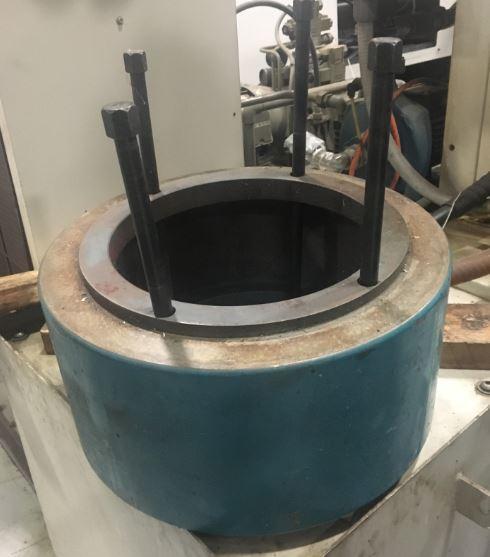

Raiser Block (8")

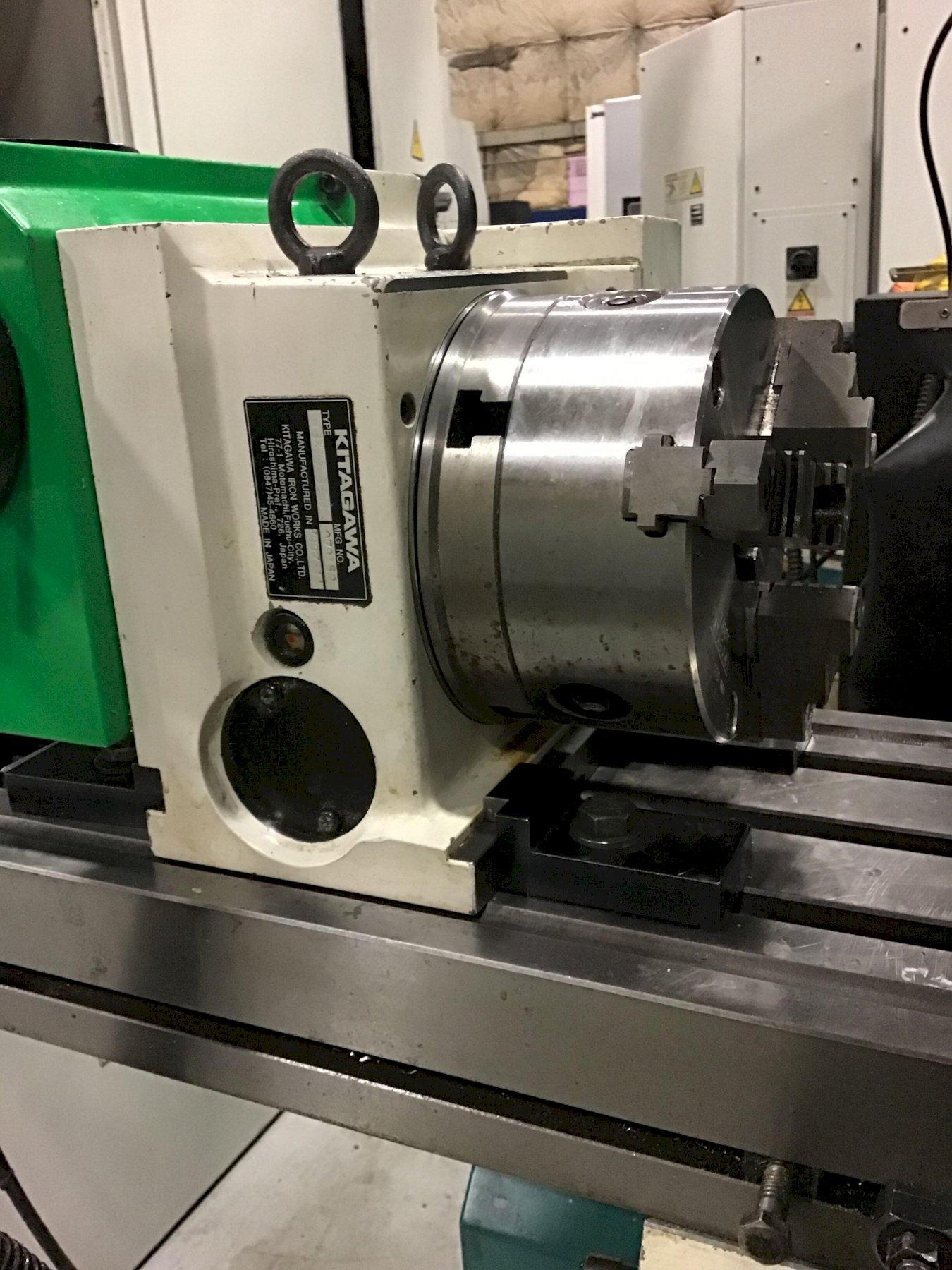

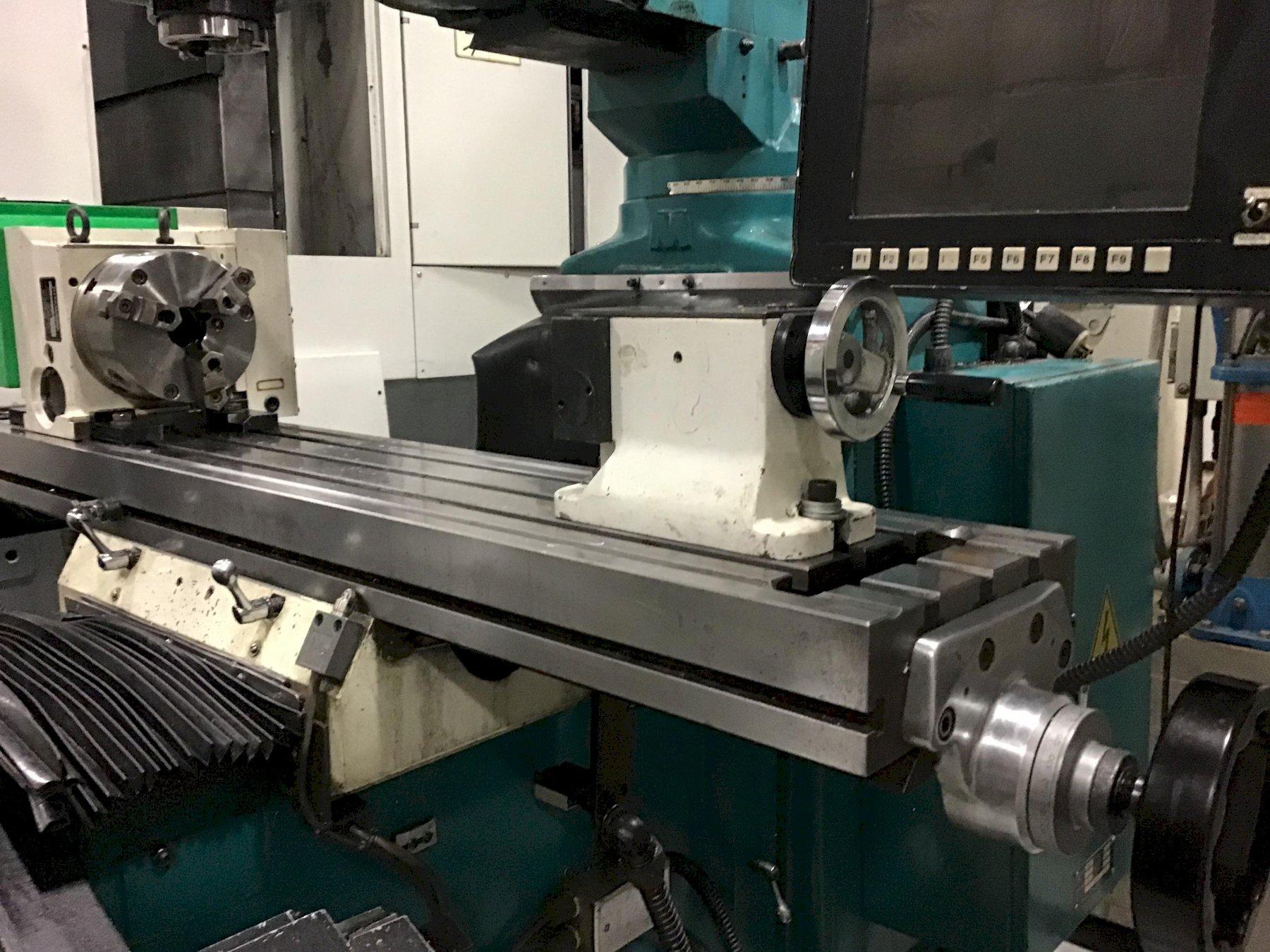

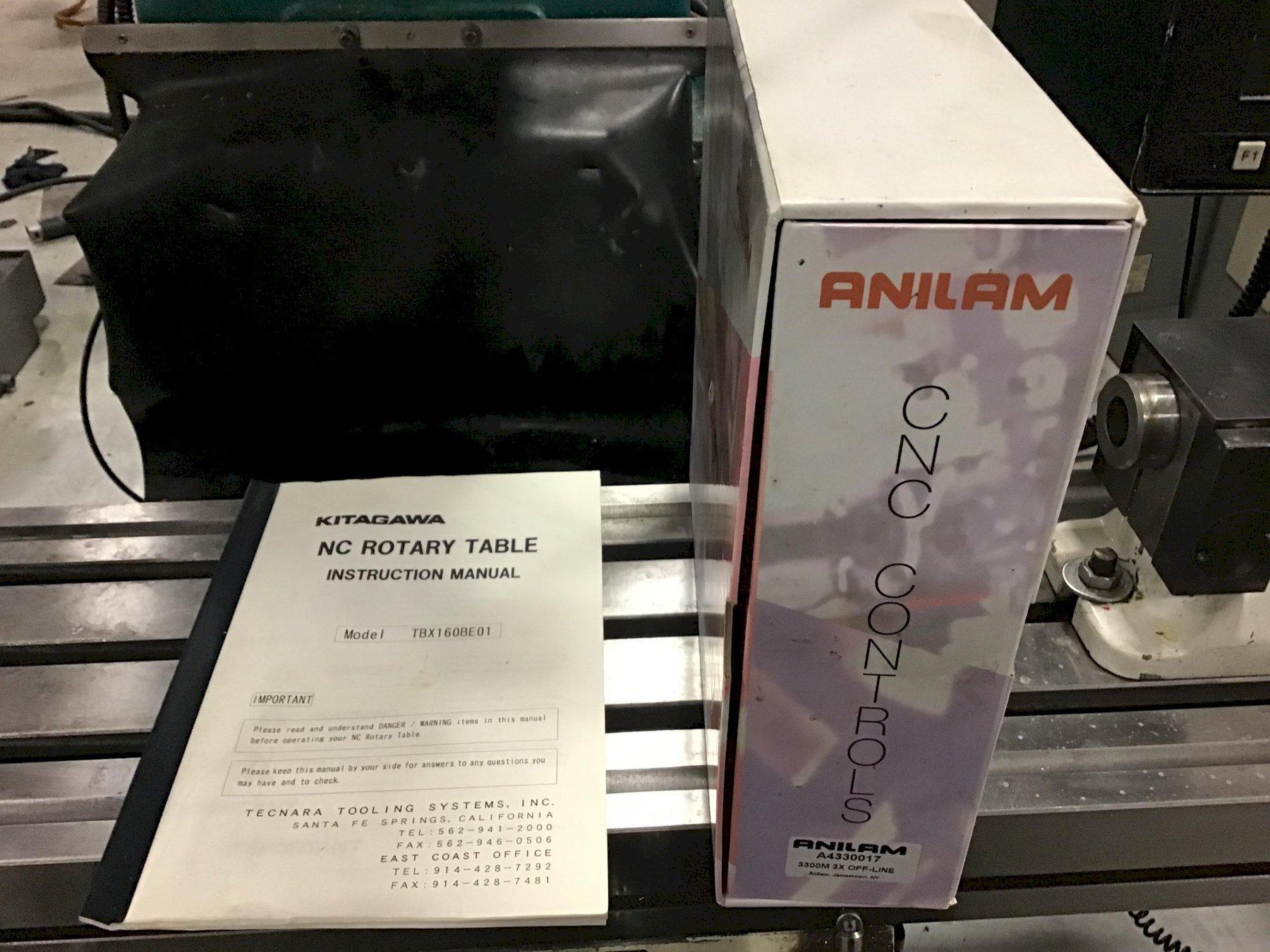

4th Axis Rotary Table (Kitagawa TBX160BE01)

Meehanite Castings for superior rigidity and wear resistance

Hardened & Ground X,Y & Z Ways

X/Y ways coated with Turcite B

Column & Knee Way Covers

T-slots are ground to provide reference edge for positioning your workpiece

Hardened & Ground Table Surface

Hardened & Ground Spindle

Chromed & Ground Quill

Chromed X, Y & Z Leadscrews

Double Nut Leadscrew for backlash compensation

ABEC 7/CP4 Spindle Bearings

Coolant System w/Pump & Switch

Flexible Segmented Coolant Nozzle

Chromed Y Screw Covers and One-piece Wipers

M16 Metric Drawbar with lSO 40 Spindle

5 HP AC Motor

AC Rapid Vertical Drive

Variable Speed Drive

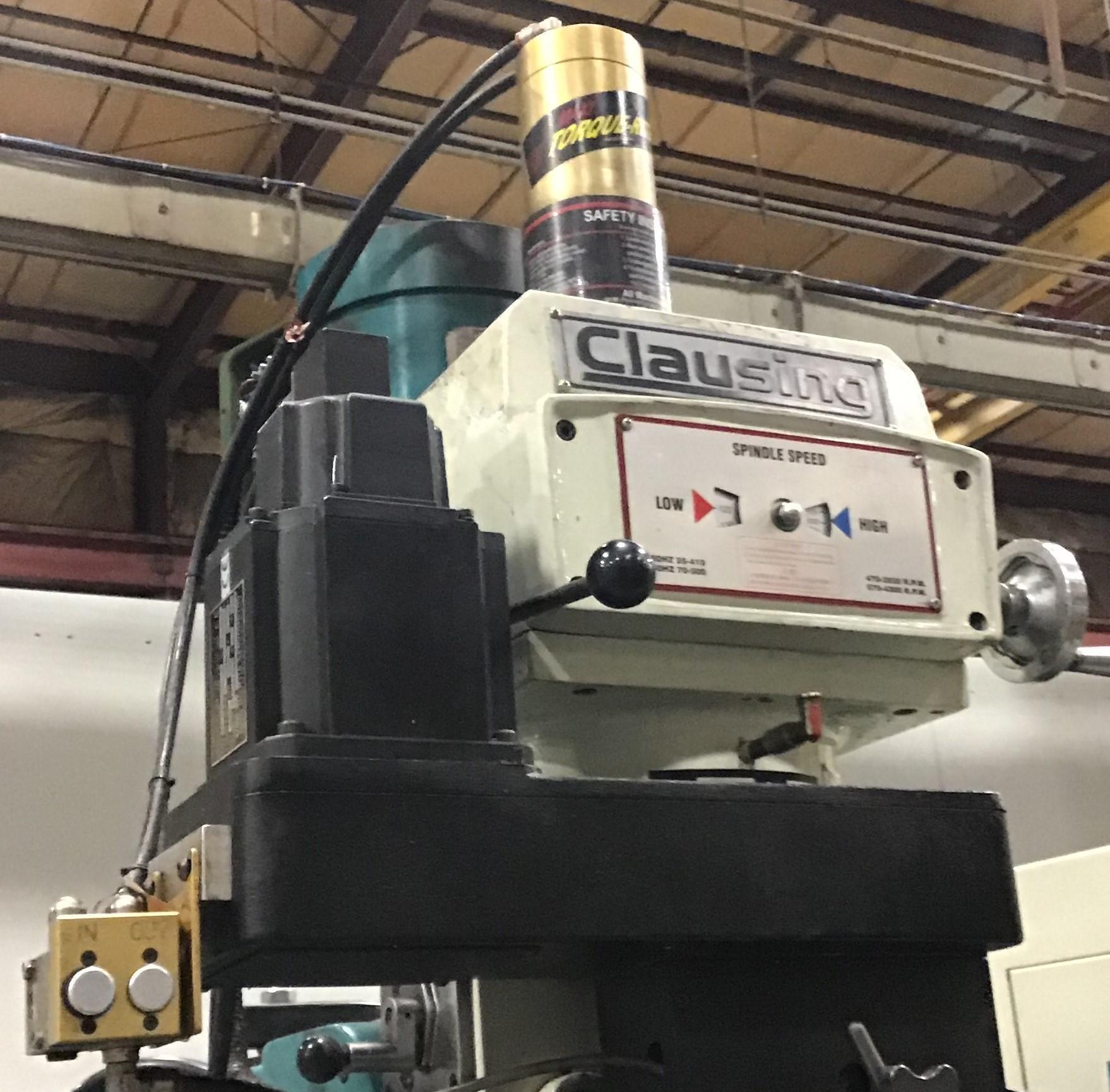

Articulating Head for Compound Angles

Worm gear angular positioning of head in two directions

Lever-operated manual rapid quill movement

Hand wheel for fine quill feed

Adjustable automatic feed disengagement for quill feed

Micrometer depth stop

Reversing switch for clockwise or counter clockwise operation

ISO 40 Spindle

Spindle Brake (Hand operated)

One-shot lubrication

Knee Assist on

Especificaciones

Pulgadas

Metric

Especificaciones

Año

2008

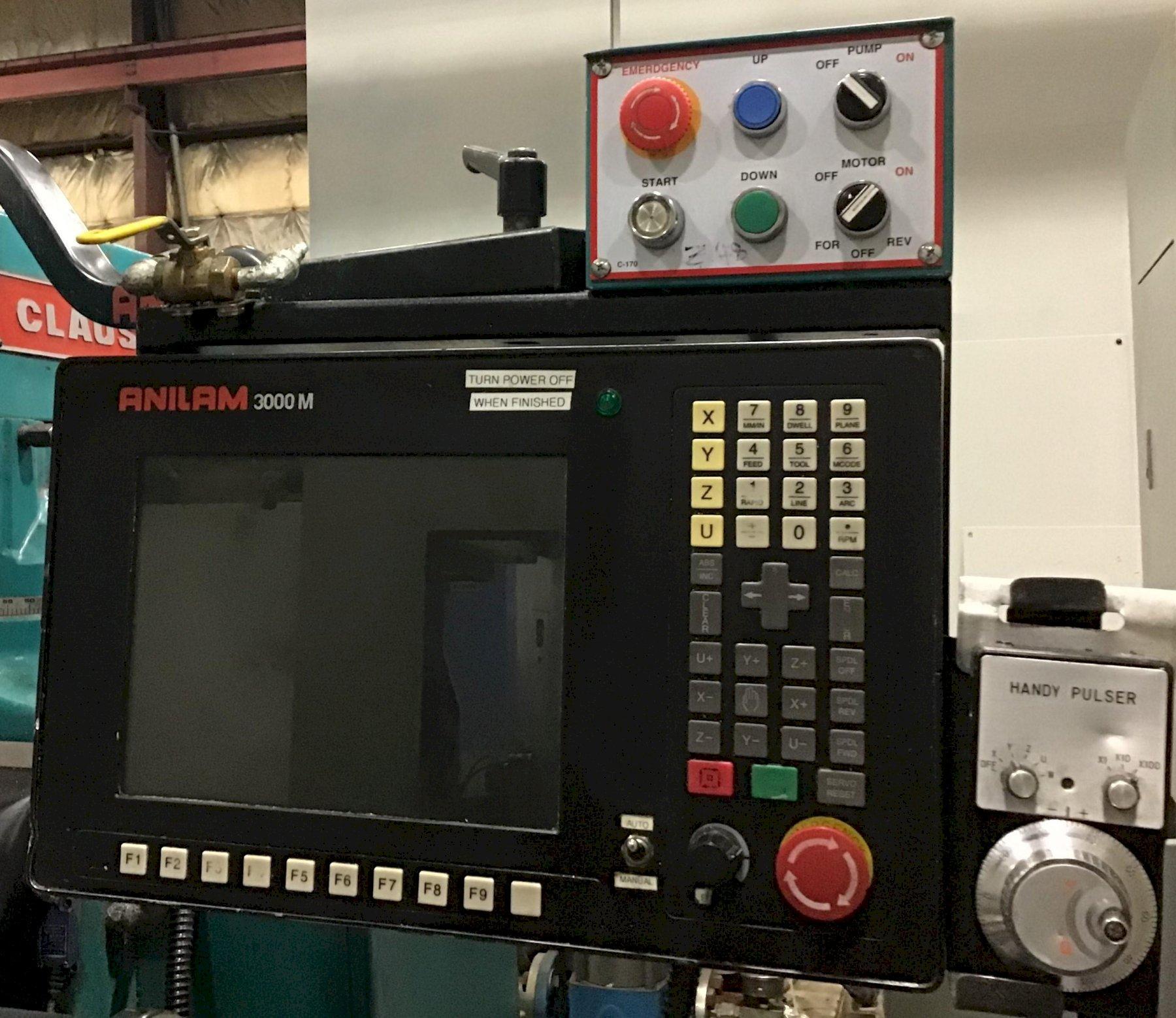

Tipo de Control CNC

ANILAM 3,000 M

Numero de Ejes

medida de la mesa

10" x 54"

Recorido (Eje X)

36"

Recorido (Eje Y)

15.74"

Cono de Husillo

ISO 40

Velocidad de Husillo

60-4,300

Motor

5 HP

Dimension de la Máquina

81" x 74" x 92"

Peso de lan Máquina

3,400 pounds

Equipado con:

Raiser Block (8")
4th Axis Rotary Table (Kitagawa TBX160BE01)
Meehanite Castings for superior rigidity and wear resistance
Hardened & Ground X,Y & Z Ways
X/Y ways coated with Turcite B
Column & Knee Way Covers
T-slots are ground to provide reference edge for positioning your workpiece
Hardened & Ground Table Surface
Hardened & Ground Spindle
Chromed & Ground Quill
Chromed X, Y & Z Leadscrews
Double Nut Leadscrew for backlash compensation
ABEC 7/CP4 Spindle Bearings
Coolant System w/Pump & Switch
Flexible Segmented Coolant Nozzle
Chromed Y Screw Covers and One-piece Wipers
M16 Metric Drawbar with lSO 40 Spindle
5 HP AC Motor
AC Rapid Vertical Drive
Variable Speed Drive
Articulating Head for Compound Angles
Worm gear angular positioning of head in two directions
Lever-operated manual rapid quill movement
Hand wheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop
Reversing switch for clockwise or counter clockwise operation
ISO 40 Spindle
Spindle Brake (Hand operated)
One-shot lubrication
Knee Assist on
