Year 2005
Control CNC B00
Number of Axis 3
Table Size 23.6" X 16.7"
Table Capacity 330 lbs Per Side
X-Axis Travel 21.7"
Y-Axis Travel 15.7"
Z-Axis Travel 16.3"
X-Axis Rapid Feedrate 2,756 ipm
Y-Axis Rapid Feedrate 2,756 ipm
Z-Axis Rapid Feedrate 2,756 ipm
Spindle Speed 16- 16,000 rpm
Spindle Taper BT30
Main Motor 13.4/10 Horsepower
Coolant Thru Spindle (Y/N) N
Tool Changer Capacity 26
Machine Hours 9,800 Cutting
Machine Dimensions 75" x 122"
Machine Weight 9,700 lbs
Equipped With:

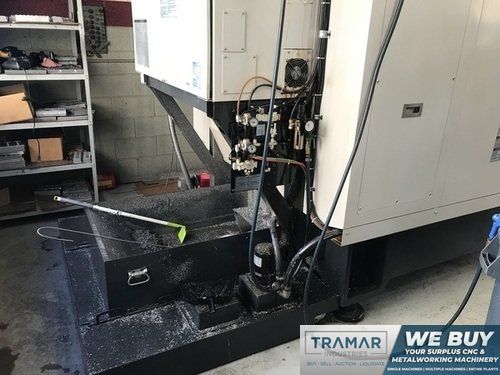

150 Liter Coolant Tank ($3,500.00 Option)
Shower Gun ($2,400 Option)

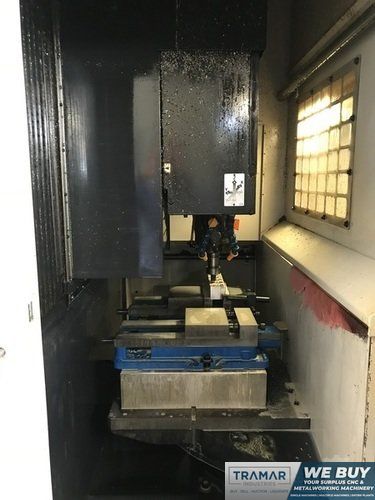

Quick Table (Rotary Pallets)
Manual Pulse Generator
Ran Aluminum Only
