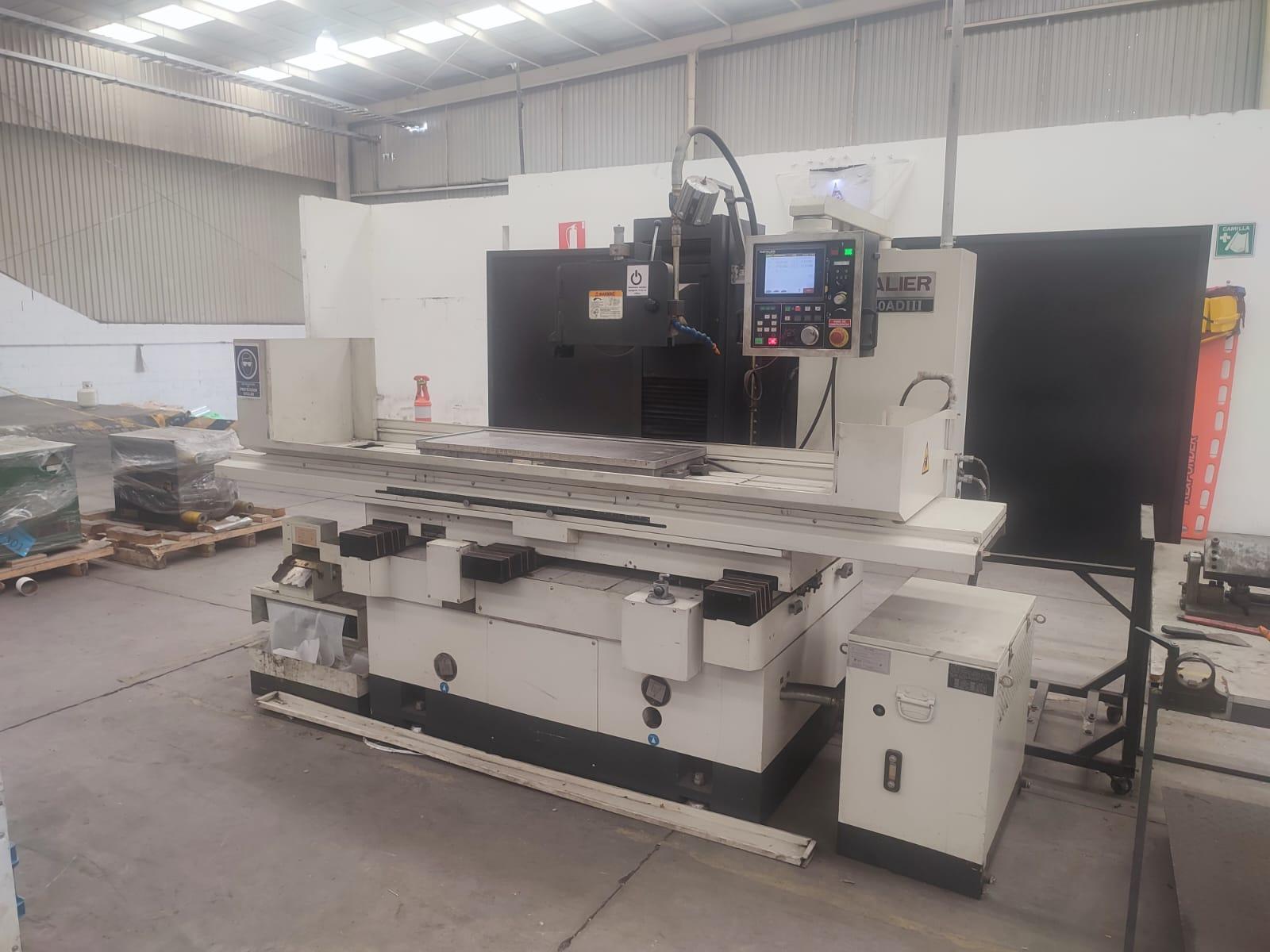

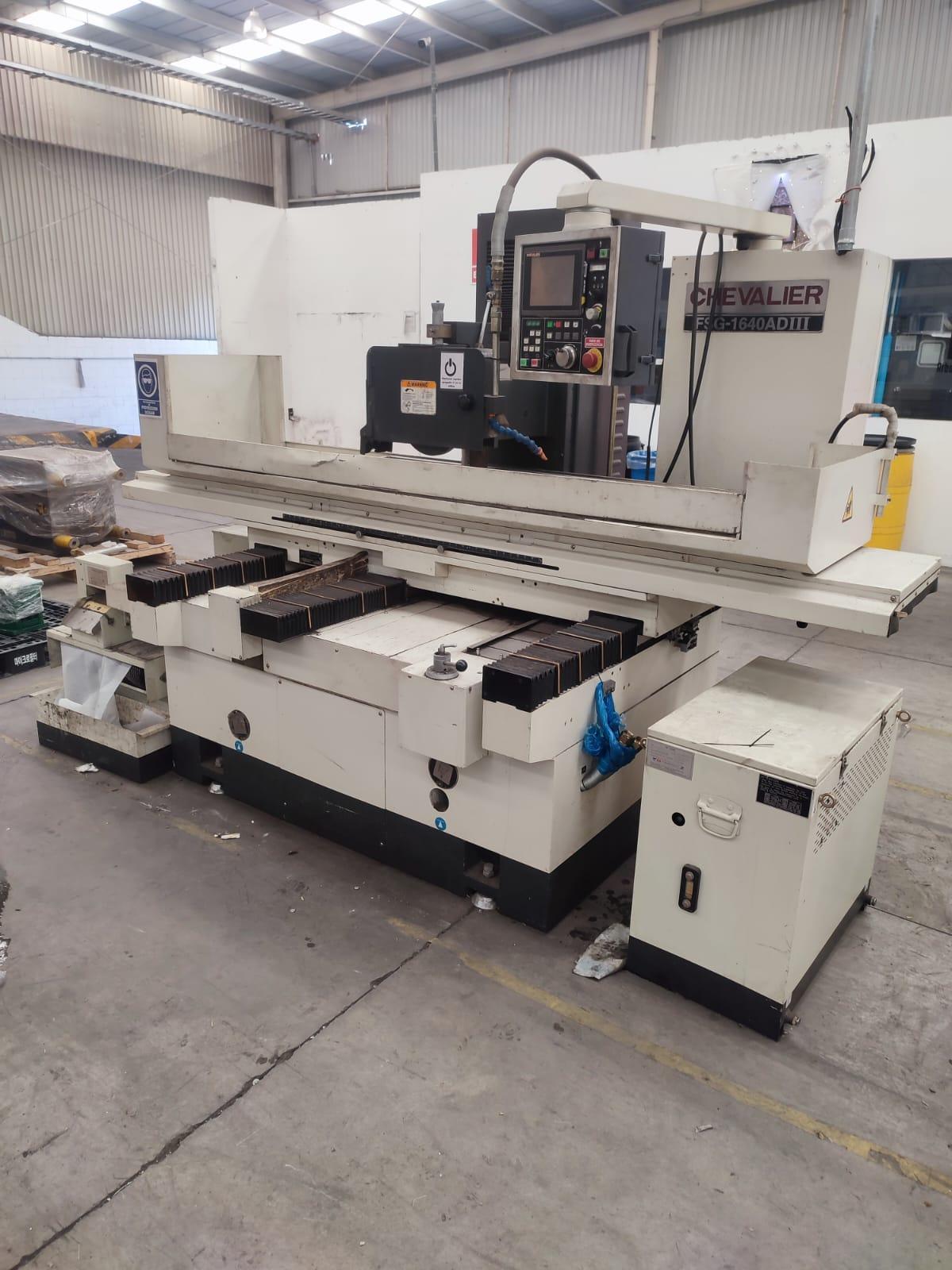

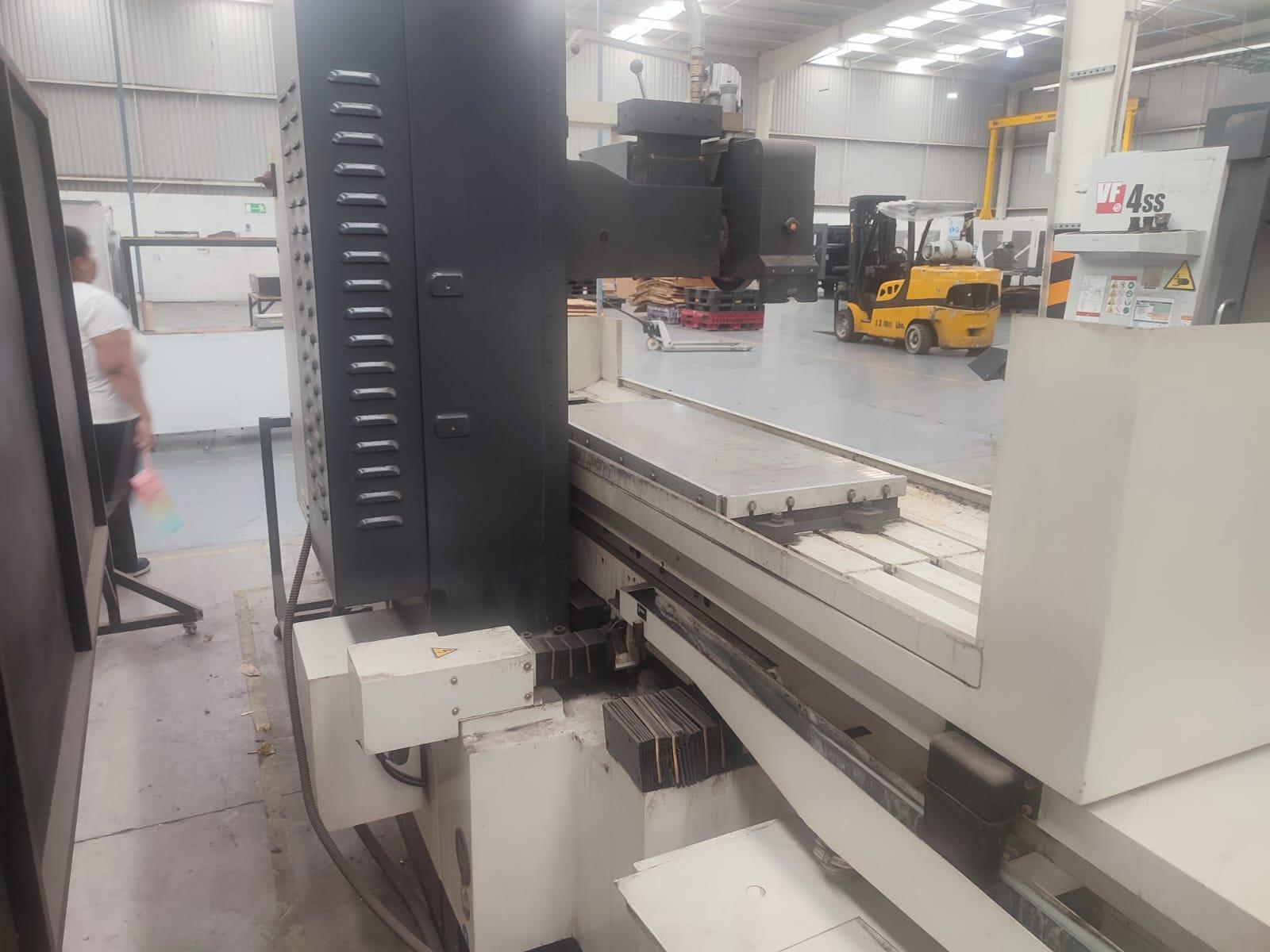

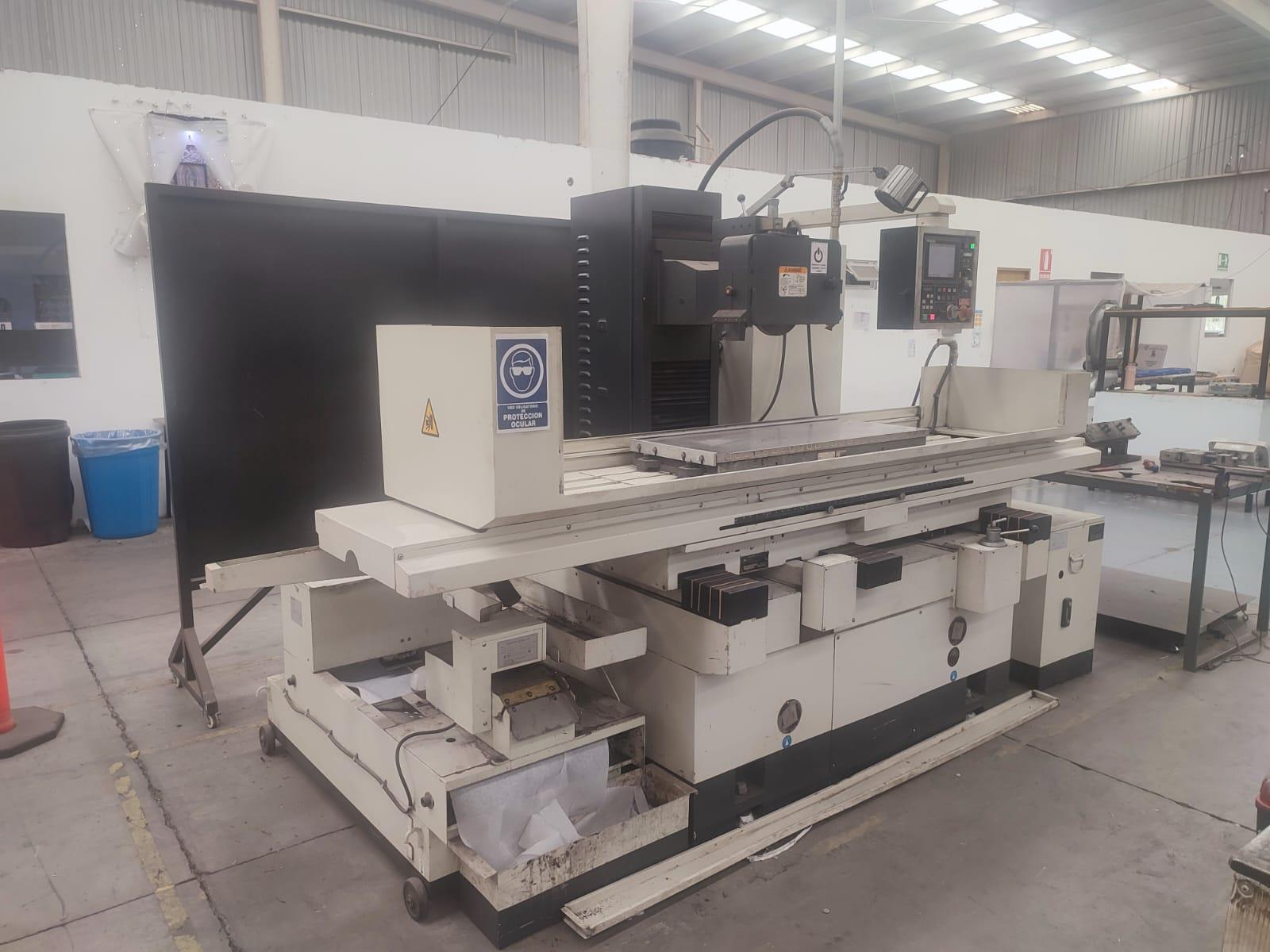

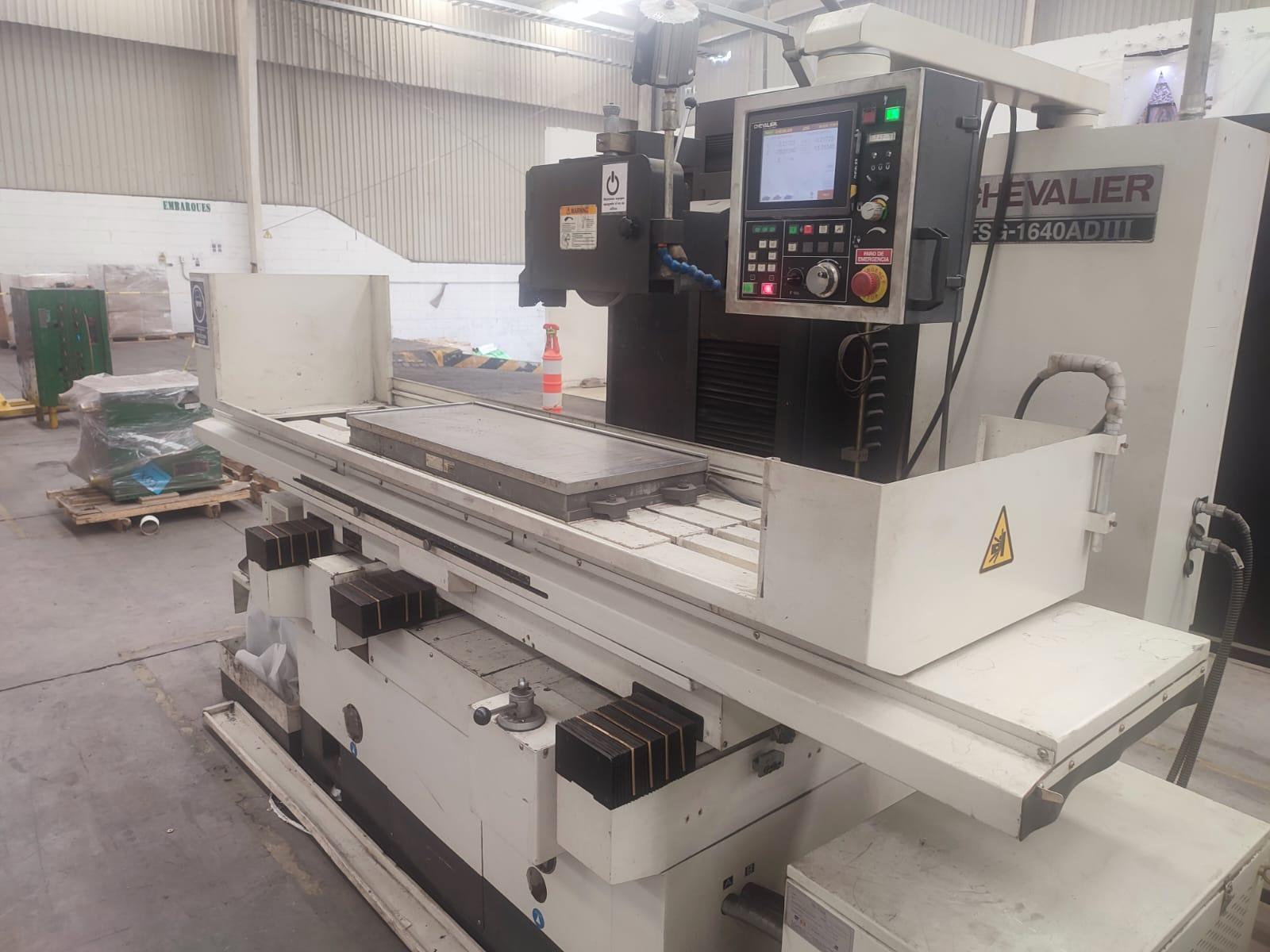

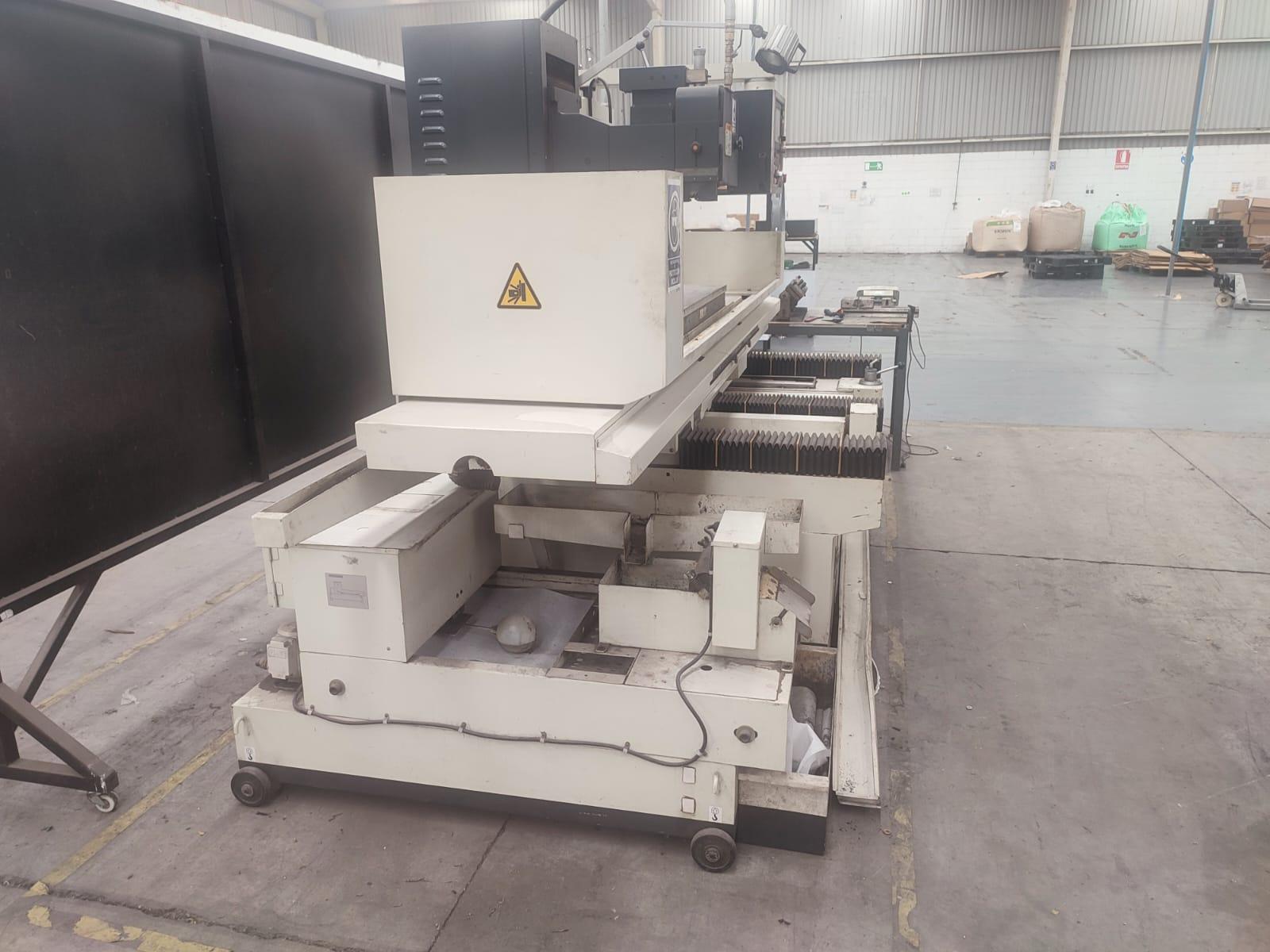

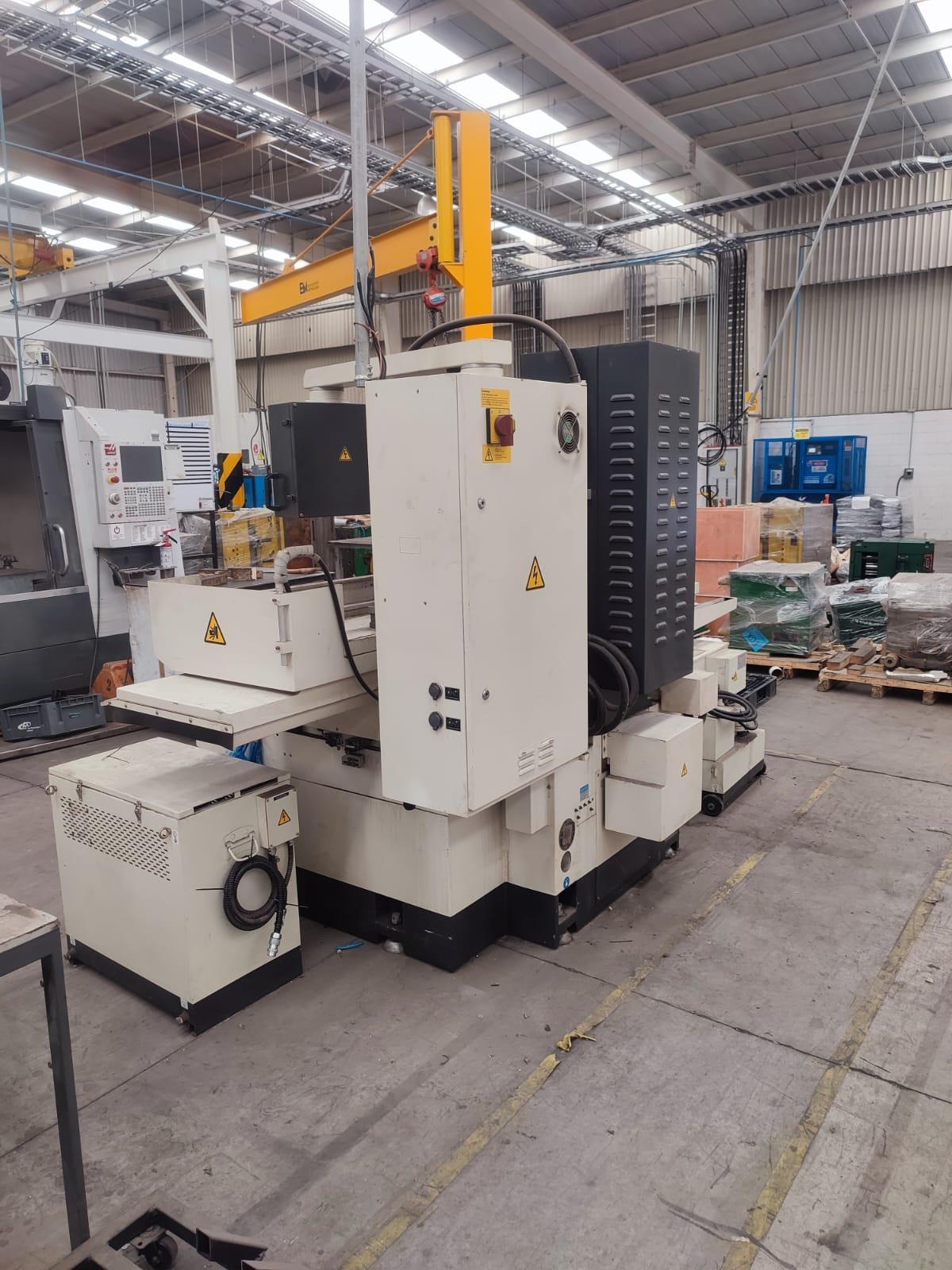

Chevalier FSG-1640ADIII - Rectificadoras de Superficies Planas

Compartir Máquina

Especificaciones Imprimir especificaciones

Modelo: FSG-1640ADIII

Año: 2018

Número de Inventario: 14370 Sold

Tipo: Rectificadoras de Superficies Planas

Fabricante: Chevalier

Características Destacadas:

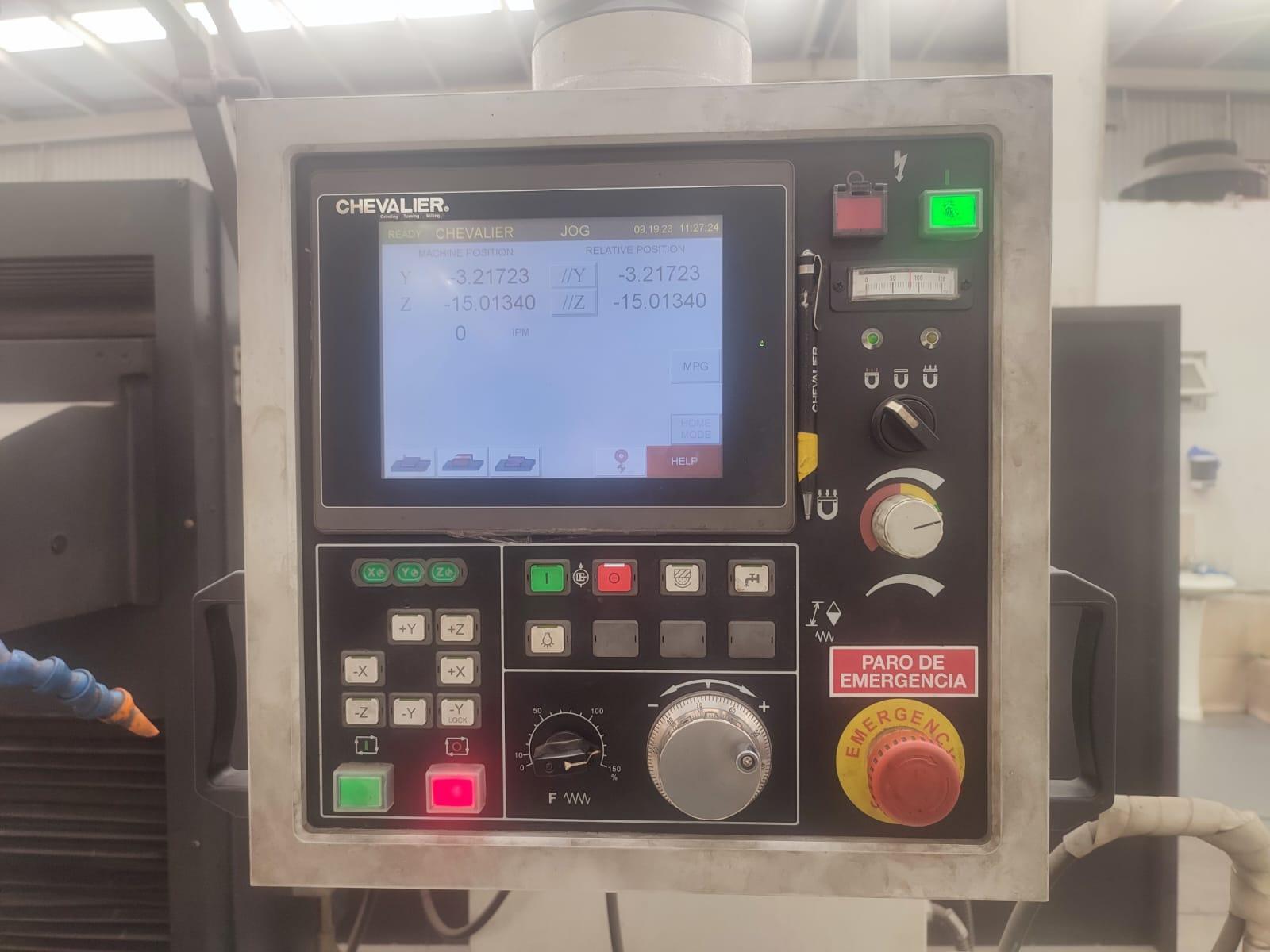

Y & Z Axis Full CNC
Single Point Above the Wheel Dresser

Chevalier FSG-1640ADIII CNC Surface Grinder For Sale - 2018

Equipado con:

Table Size: 400 x 1000mm

Maximum Grinding Length: 1015mm

Maximum Grinding Width: 405mm

Maximum Vertical Distance: 620mm (Table Surface to Spindle Center Line)

Longitudinal Travel: 1050mm (Hydraulic) / 1100mm (Manual)

Longitudinal Feed Rate: 5-25m/min

Rapid Travel Approx: 60Hz/12FPM (3.5m/min) 50Hz/10FPM (2.9m/min)

Automatic Travel Traverse Increment: 3-32mm

Automatic Travel Cross Feed: 405mm

Manual Travel Cross Feed: 460mm

Hand Wheel/Revolution: 6mm

Hand Wheel Graduation: 0.1mm

Hand Wheel Micro Feed Graduation: 0.001mm

Hand Wheel Vertical Infeed: 0.01-0.04mm

Vertical Rapid Travel Approx: 500mm/min

Standard Grinding Wheel Diameter: 355mm

Standard Grinding Wheel Width: 50mm

Hydraulic System: 2HP/6P

Cross Feed: 1/6HP/4P

Elevating Drive: AC Servo 1KW

Machine Floor Space: 4280 x 1730 x 2080mm

Machine Weight: 3500kg

Especificaciones

Pulgadas

Metric

Especificaciones

Año

2018

medida de la mesa

39.37" x 15.75

Maximum Grinding Length

40"

Maximum Grinding Width

16"

Maximum Vertical Distance

24.4"

Recorido en Rapido (X/Z)

144/120 ipm

Hand Wheel Graduation

0.1mm

Medidas de Piedra

14" x 2"

Dimensiones

168" x 68" x 81"

Peso

8,000 pounds

Equipado con:

Table Size: 400 x 1000mm
Maximum Grinding Length: 1015mm
Maximum Grinding Width: 405mm
Maximum Vertical Distance: 620mm (Table Surface to Spindle Center Line)
Longitudinal Travel: 1050mm (Hydraulic) / 1100mm (Manual)
Longitudinal Feed Rate: 5-25m/min
Rapid Travel Approx: 60Hz/12FPM (3.5m/min) 50Hz/10FPM (2.9m/min)
Automatic Travel Traverse Increment: 3-32mm
Automatic Travel Cross Feed: 405mm
Manual Travel Cross Feed: 460mm
Hand Wheel/Revolution: 6mm
Hand Wheel Graduation: 0.1mm
Hand Wheel Micro Feed Graduation: 0.001mm
Hand Wheel Vertical Infeed: 0.01-0.04mm
Vertical Rapid Travel Approx: 500mm/min
Standard Grinding Wheel Diameter: 355mm
Standard Grinding Wheel Width: 50mm
Hydraulic System: 2HP/6P
Cross Feed: 1/6HP/4P
Elevating Drive: AC Servo 1KW
Machine Floor Space: 4280 x 1730 x 2080mm
Machine Weight: 3500kg

Imprimir especificaciones

Chevalier FSG-1640ADIII - Rectificadoras de Superficies Planas

Especificaciones

Equipado con:
