Year 1977
Serial Number 2741
Control 3-Axis Digital Readout
Spindle Size 5.12"
Diameter of Milling Quill 8.86"
Type Table
Table Size 47" x 98.4"
X-Axis Travel 98.4"
Y-Axis Travel 75.1"
Z-Axis Travel 71.5"
W-Axis Travel (Quill) 35.4"
Coolant Thru Spindle (Y/N) N
Max Weight on Table 22,000 Lbs
Rapid Traverse (X/Y/Z) 126 IPM
Spindle Taper #50
Spindle Speed 1200 RPM
Main Motor 25 Horsepower
Machine Dimensions 260"FB x 248"W x 165"H
Feed Ranges High Spindle Speed Range: .0001 - .07 IPR
Medium Speed Range: .0006 - .315 IPR
Low Spindle Speed Range: .0003 - 1.73 IPR
Machine Weight 60,280 Lbs
Equipped With:
Scale Feedback

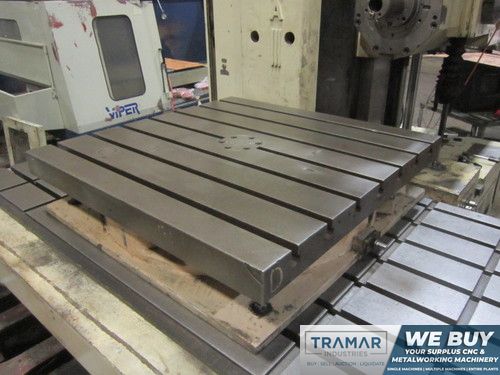

48" x 48" Power Rotary Table
T-Slotted Table
Power Draw Bar

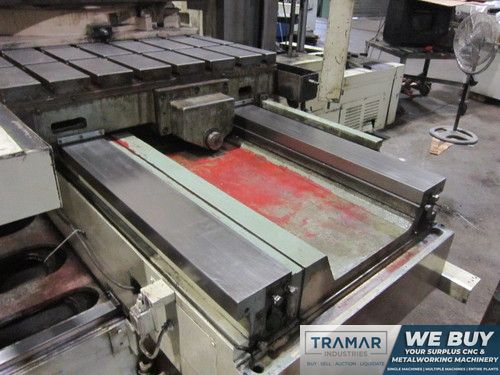

Four-Way Bed Construction
Hardened Ways
Telescopic Way Covers for Cross & Saddle Travels
