Year 1996
Serial Number 077130960181
Chuck Size 18"
Swing Over Bed 26"
Swing Over Cross Slide 16.5"
Swing in Gap 40"
Center Distance 120"
Spindle Speed 1,000 RPM
Main Motor 10 HP
Longitudinal Feeds .001 - .251 IPR
Cross Feeds .009 - 125 IPR
Threads Per Inch (38) 1-80 TPI
Threads Per Millimeter (29) .5 - 40 mm
Equipped With:
15" 3 Jaw Chuck
15" 4 Jaw Chuck

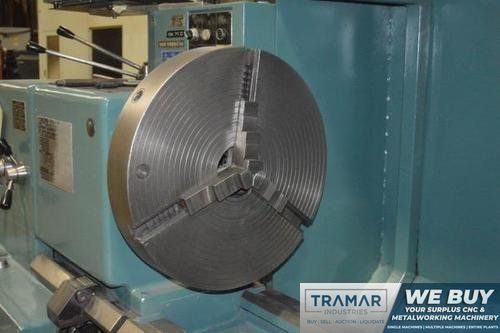

21" 3 Jaw Chuck
(2) Steady Rests
Follow Rest
Faceplate
Tool Post with Holders

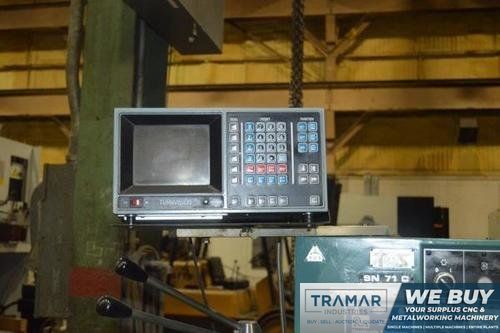

Acu-rite Turnvision DRO
Inch/Metric Threading
Carriage Rapid Traverse
