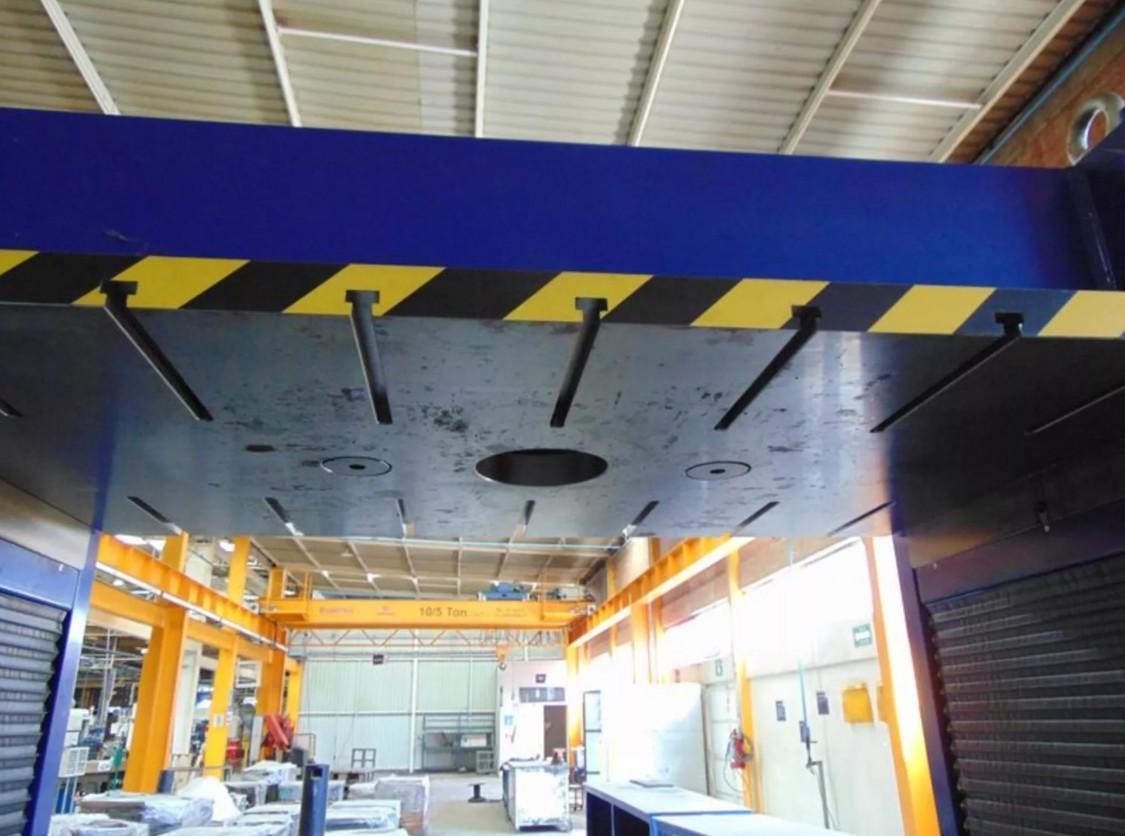

- Hydraulic Ejector Pin
- The ejection unit initiates the movement of the ejection pins die and moulds for plastic materials or die casting.
- Hydraulic Auxiliary Cylinder Controls 2+2 Connection

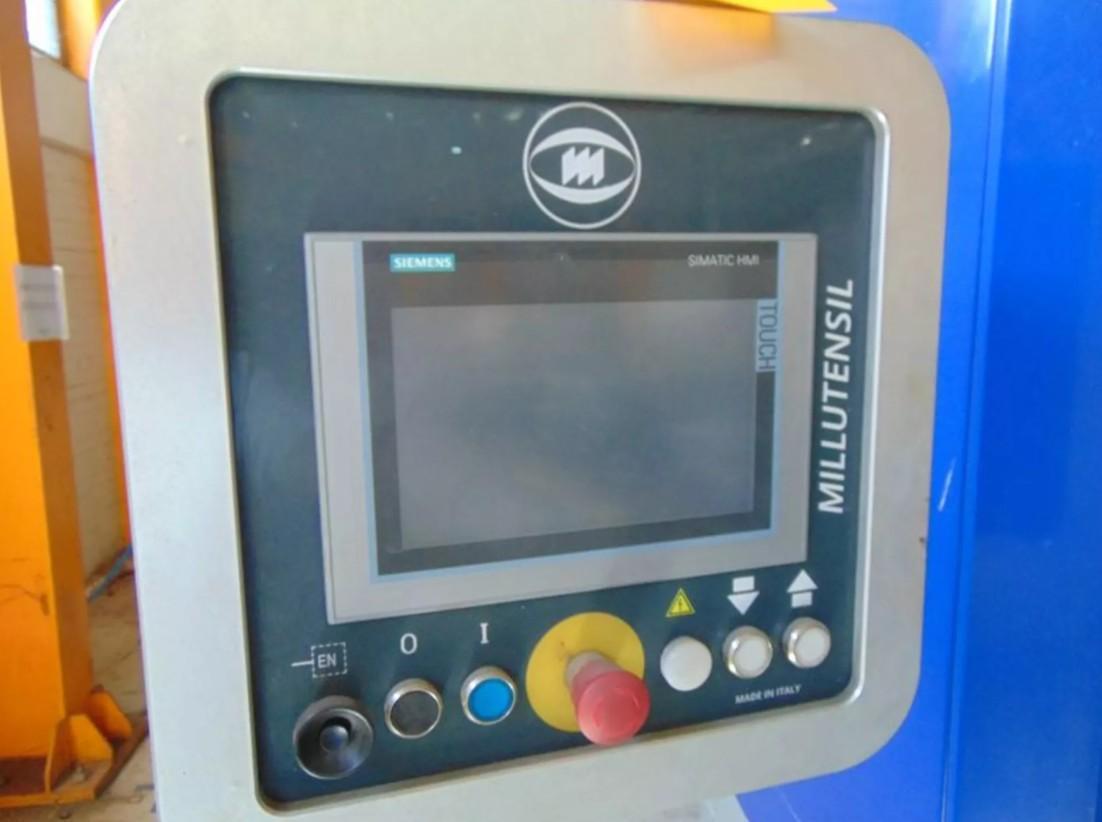

- The trial on slide’ and hydraulic cylinders’ movement is wholly integrated in the press. Through the touch panel it is possible to manage up to Max. 2 pairs of hydraulic cylinders (2 inputs and 2 outputs), either individually or synchronously.

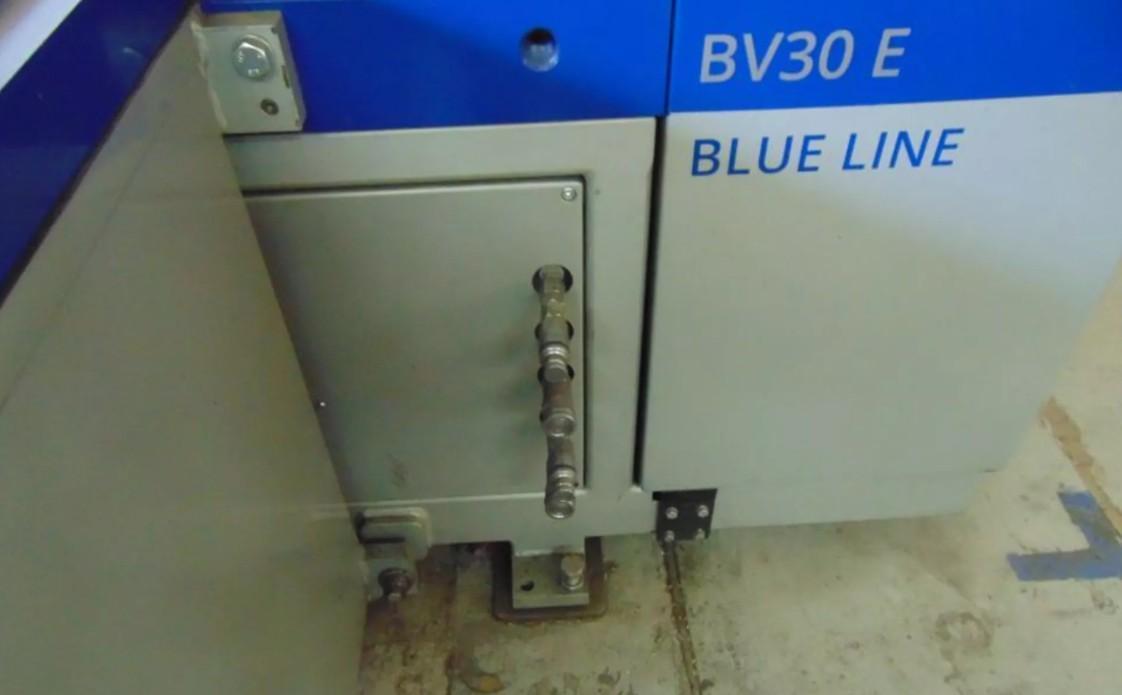

- The operating pressure is variable, and it is always set on the touch panel. The hydraulic line connection is made using quick couplers and flexible hoses.
- Single Shot Energy Accumulators
- This operation sets up dies and moulds for plastic materials, rubber and die casting. It is a hydraulic device that that is be fixed to the press’s upper plate. It functions to strike a shot on the closed mould, in order to better gauge the adjustment between the two mould halves (matrix and punch).
- The dynamic action of this device is independent from the press clamping movement. As a result, the dynamic action of the energy accumulator will be coupled with the press clamping force.
