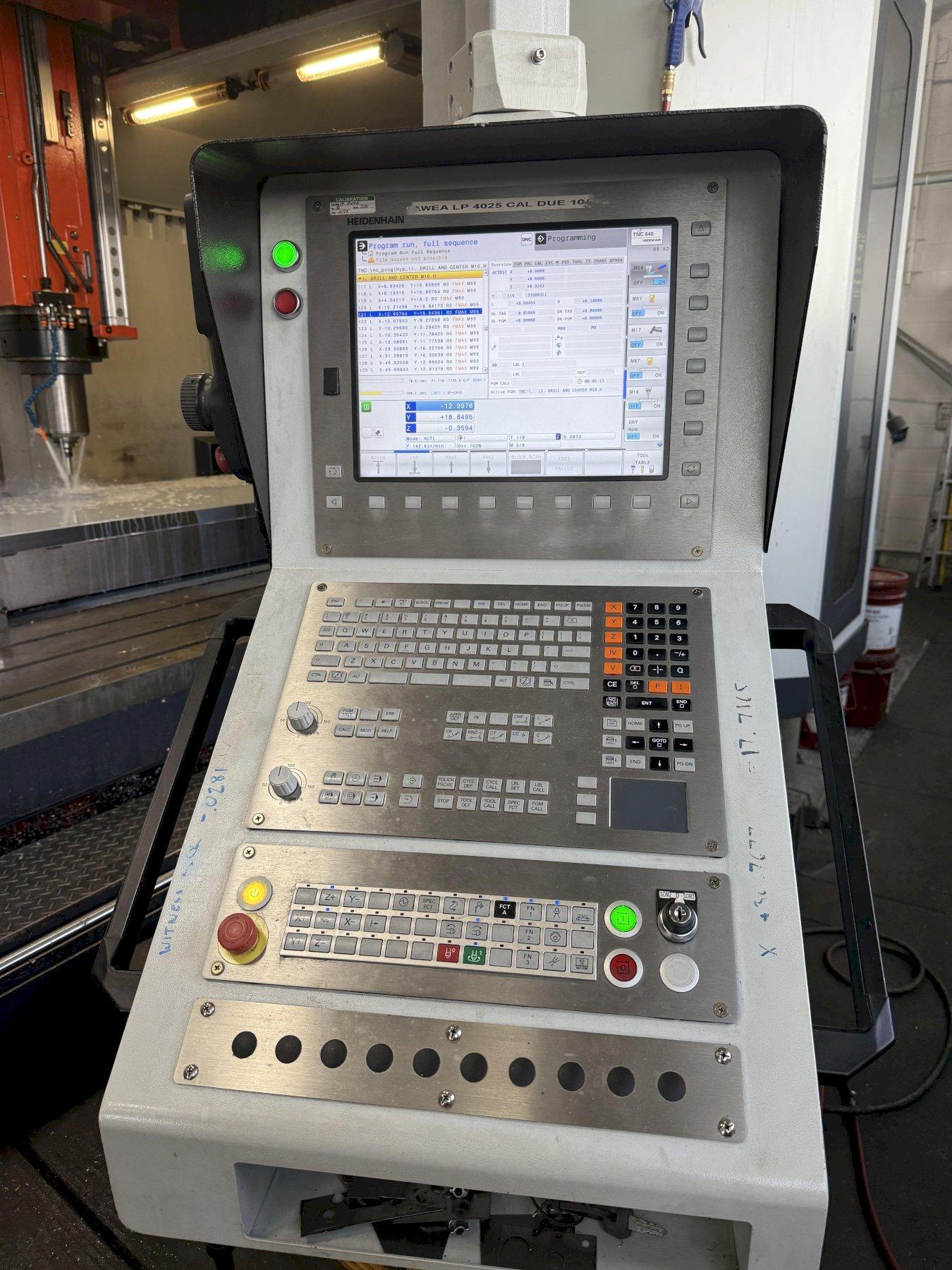

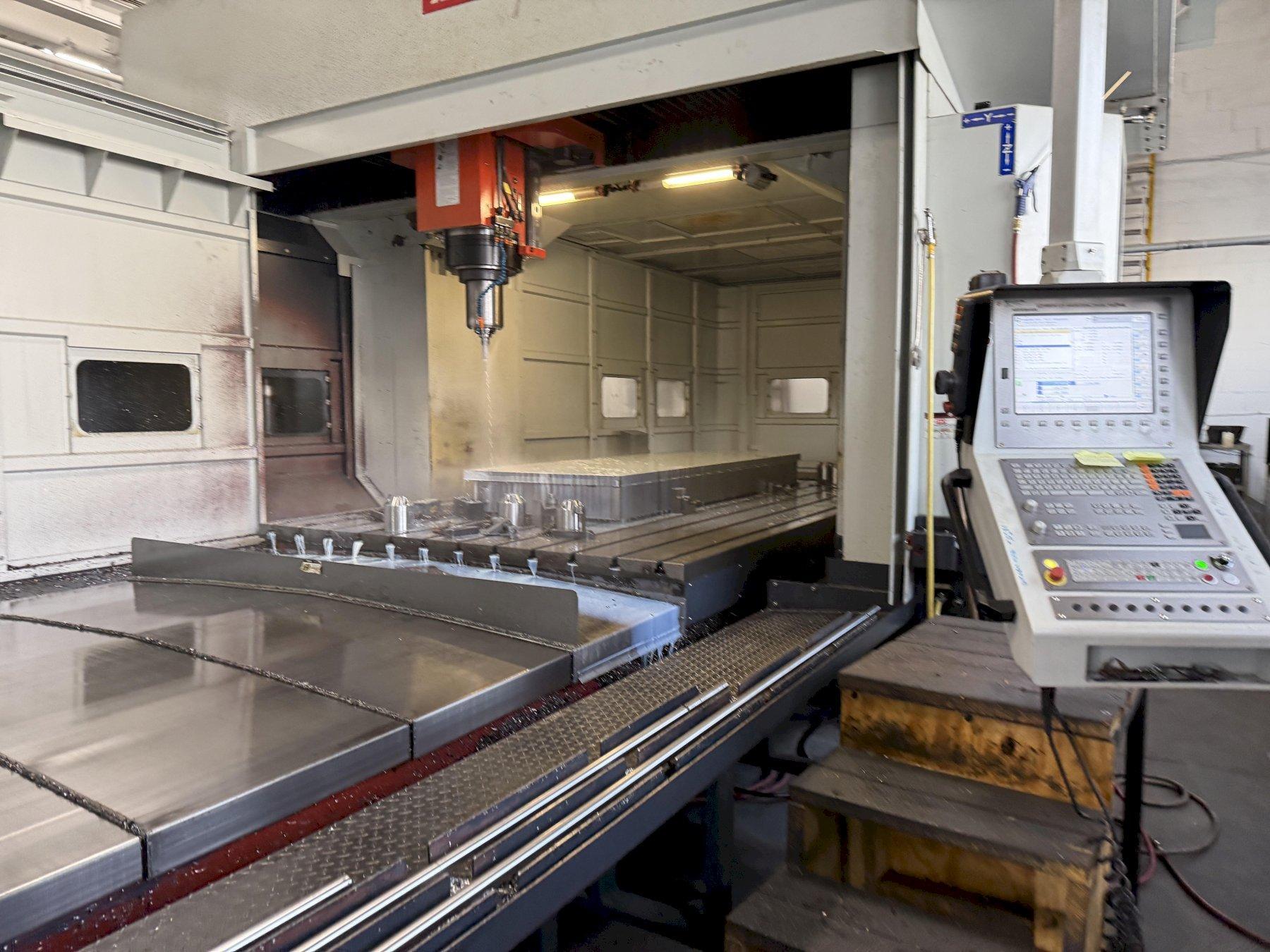

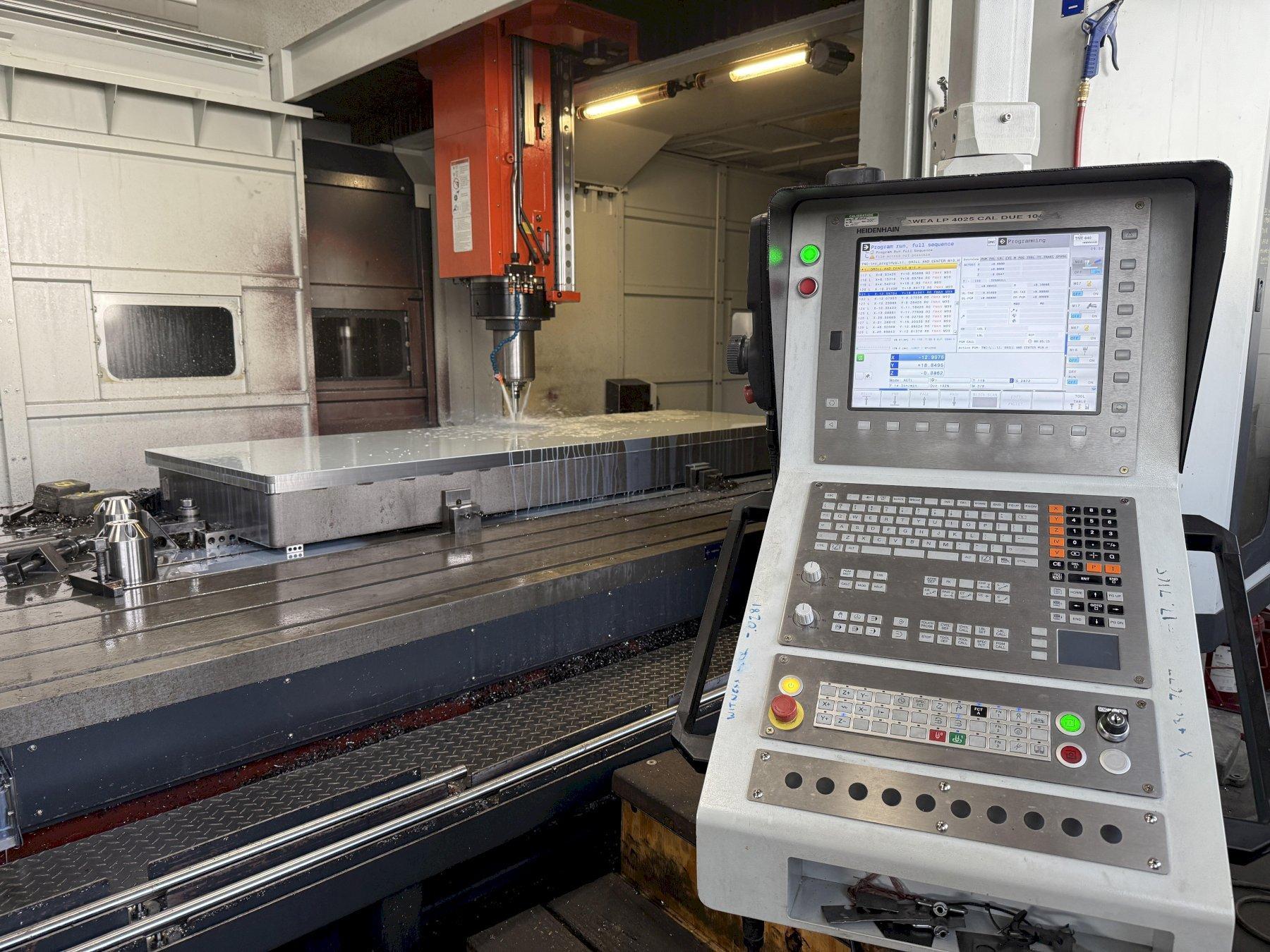

1) Heidenhain iTNC 630 CNC Control w/15” Color LCD

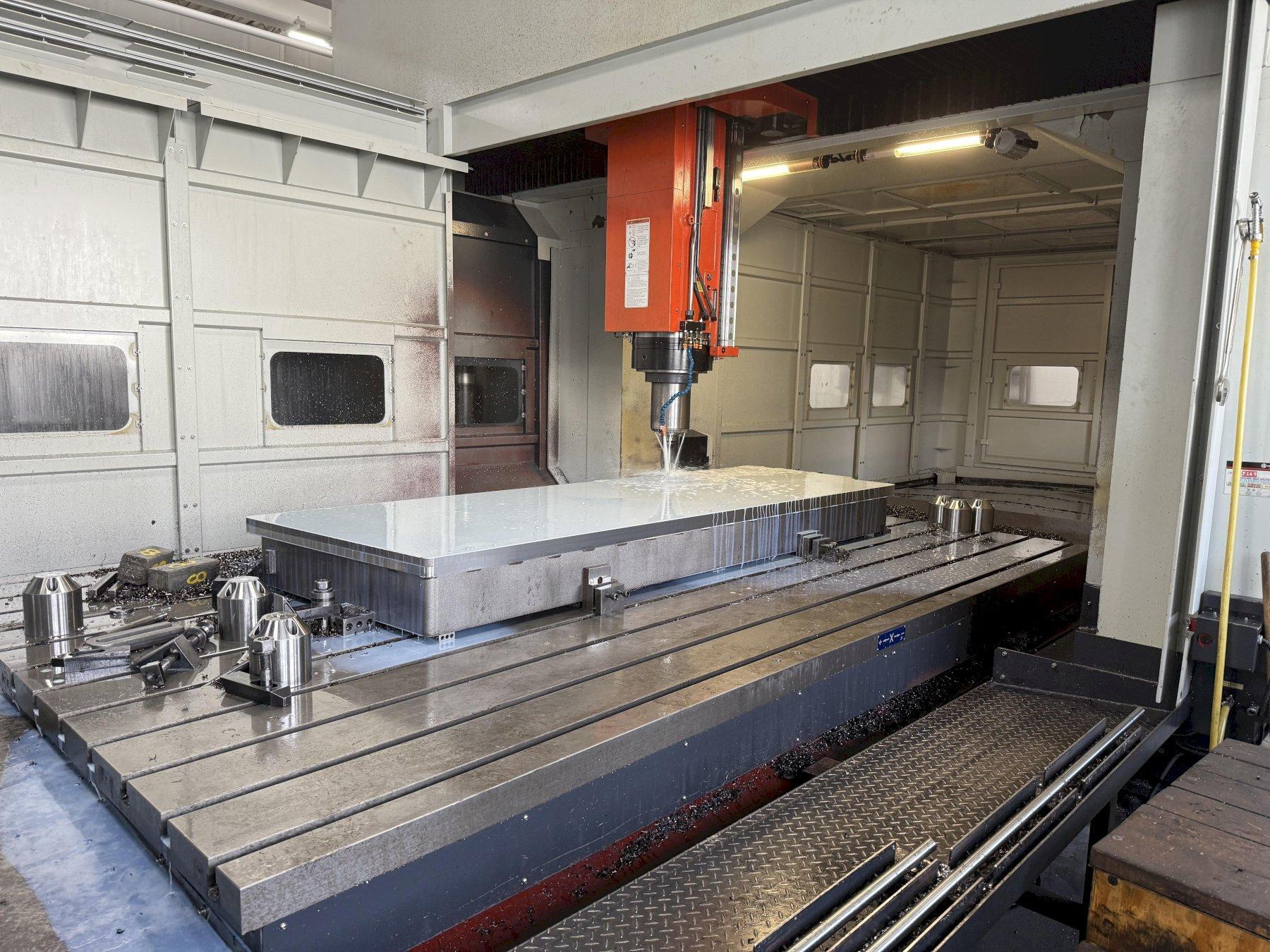

2) Travels: X=157.48” x Y=129.92” x Z=55.11”
a. 98.43” (Universal Head Travel)

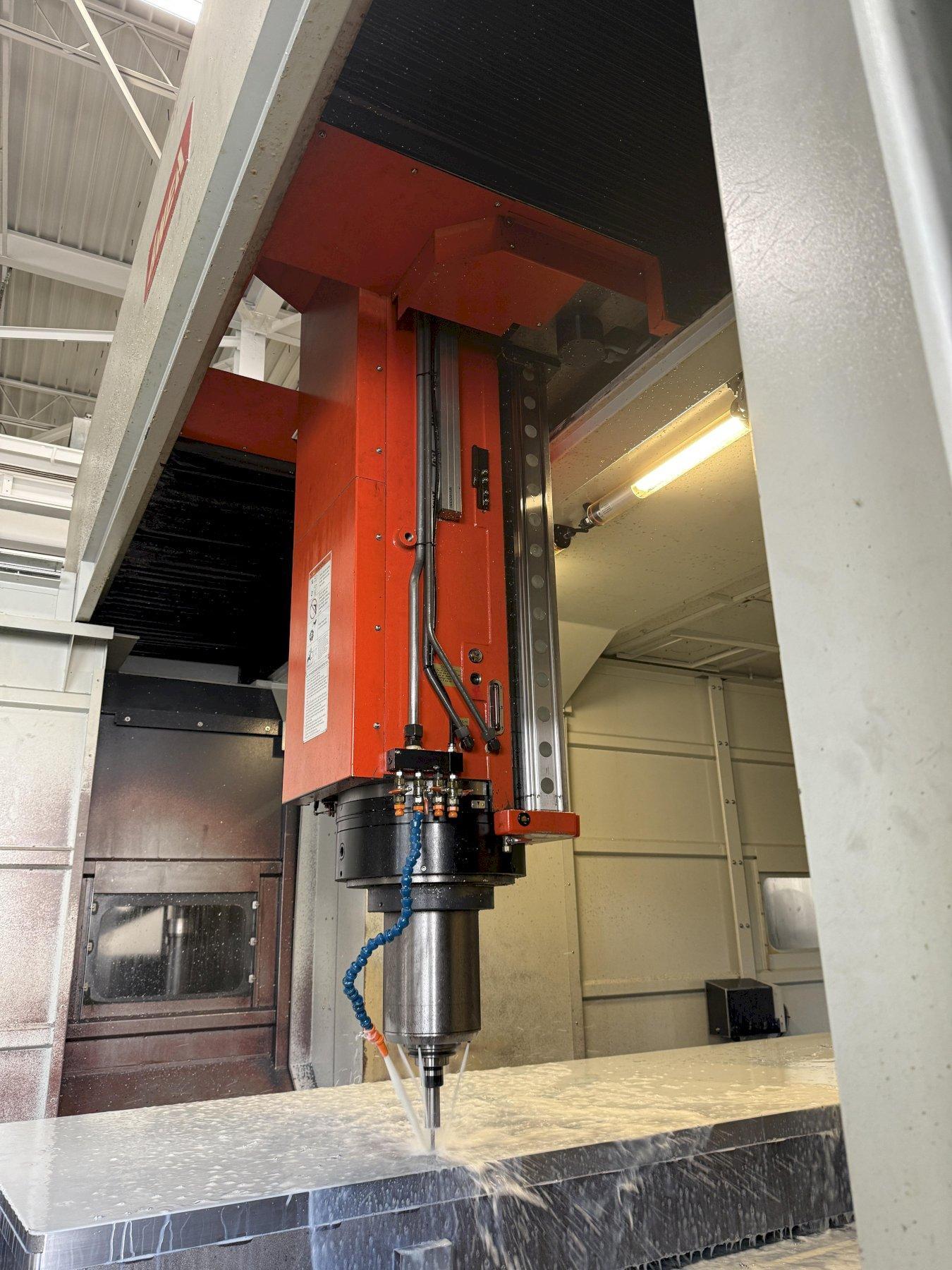

3) CAT50 Big Plus – 6,000 RPM Geared Spindle
a. Upgraded Spindle Motor to Heidenhain
b. 1390 Nm Torque
c. 50 HP (30 min.)

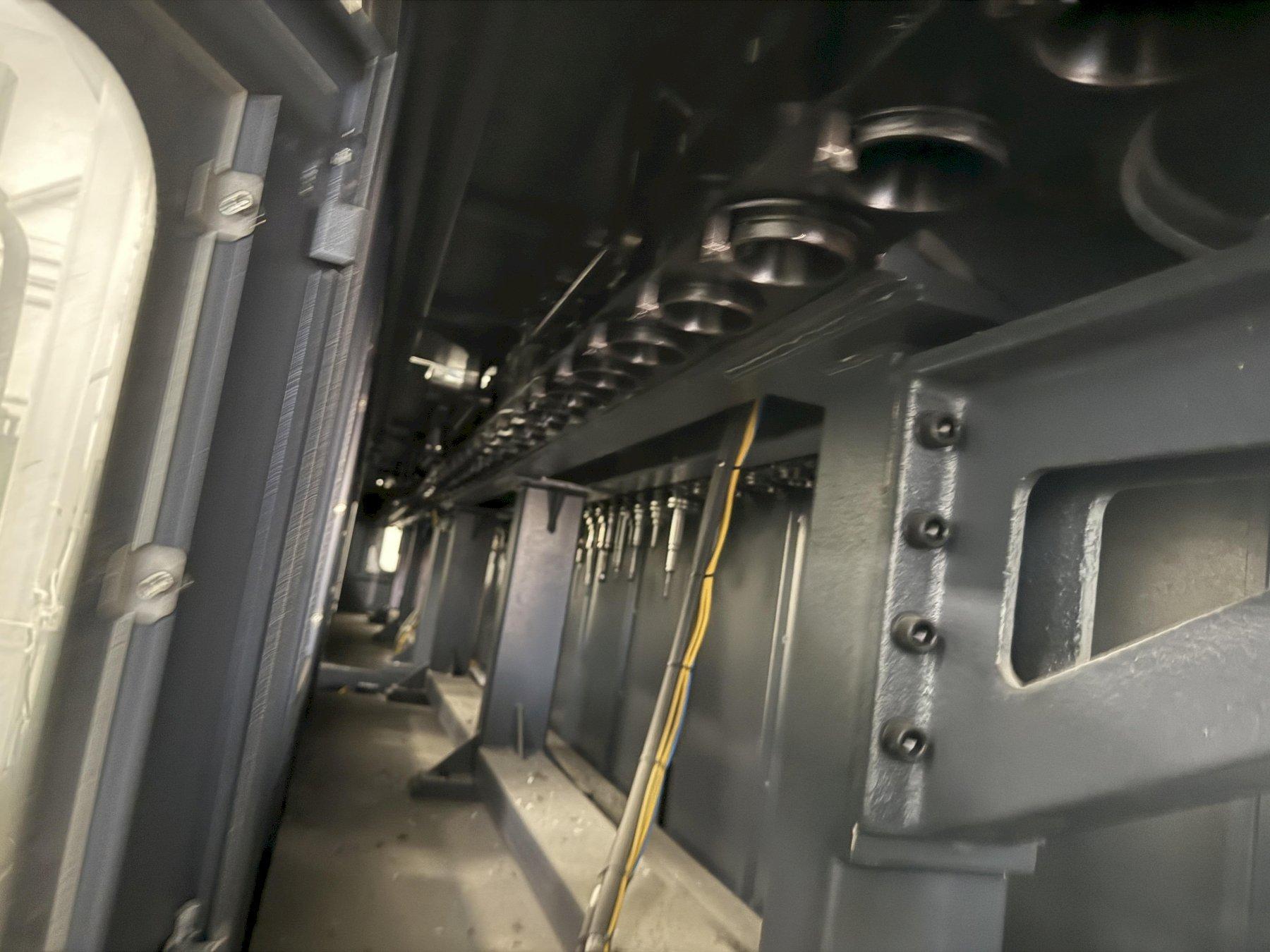

4) 120 Position Tool Changer
5) Spindle Cooling System
6) Centralized Automatic Lubrication System
7) Coolant System w/Pump & Tank
8) 200 mm Column Riser
9) X/Y/Z Linear Scales

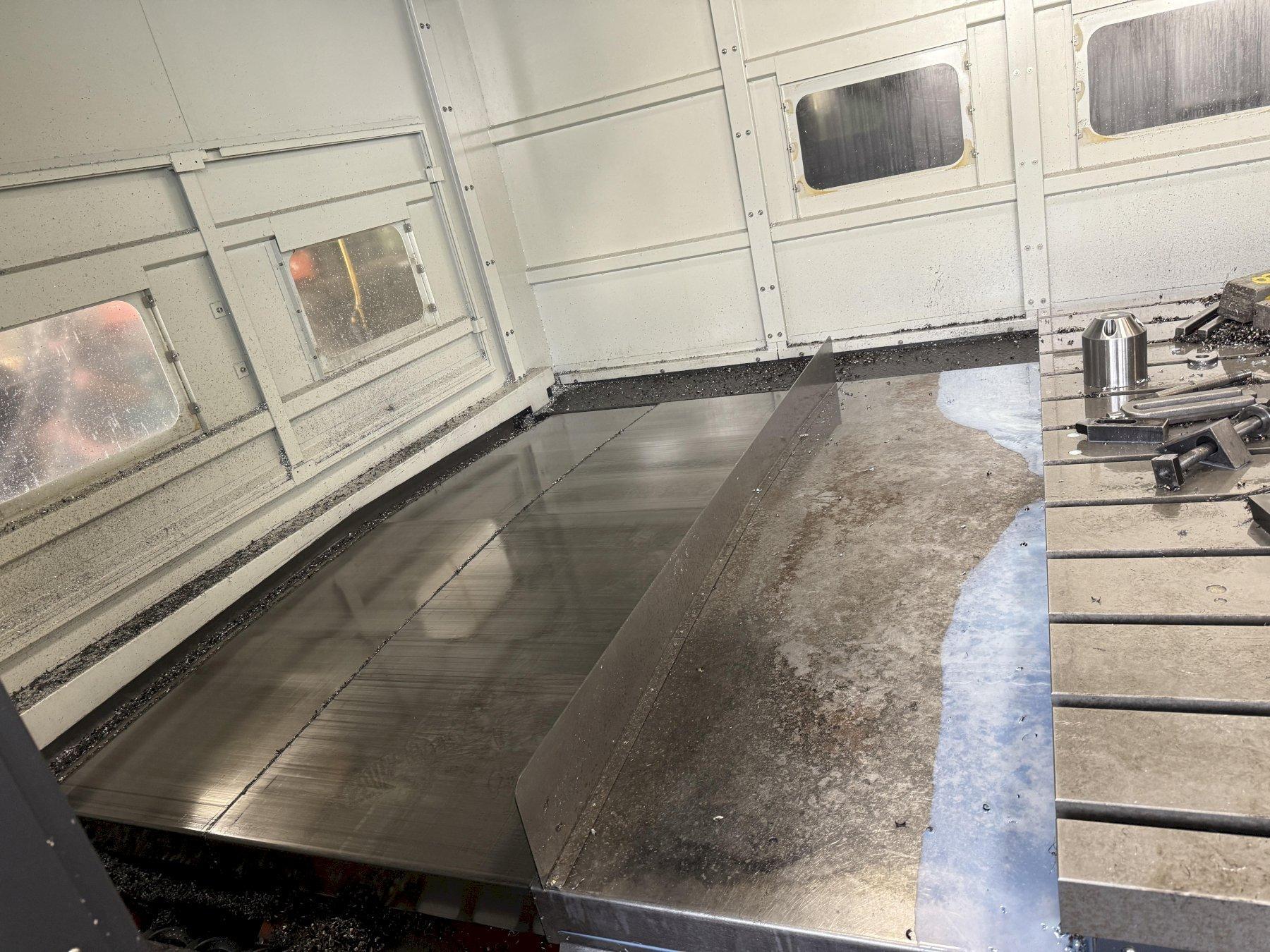

10) Roof Enclosure
11) Oil Skimmer

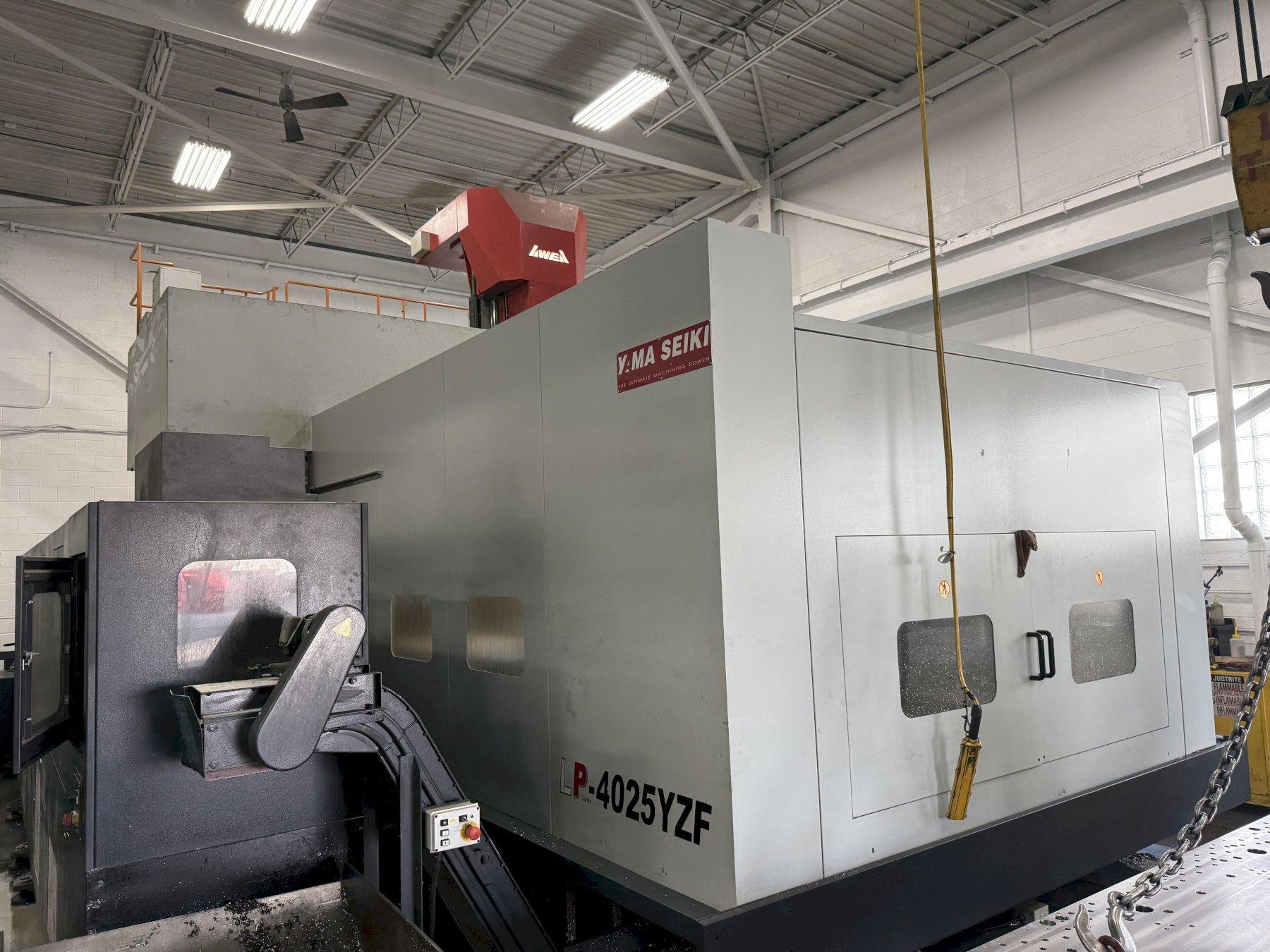

12) Chip Conveyor, Discharge at 1200mm
13) Door Interlocks for Front Door & ATC
14) Coil Type Chip Auger
15) 1000 PSI CTS-Prep on Vertical Spindle
16) Upgrade to 500 PSI CTS Prep on Universal Head

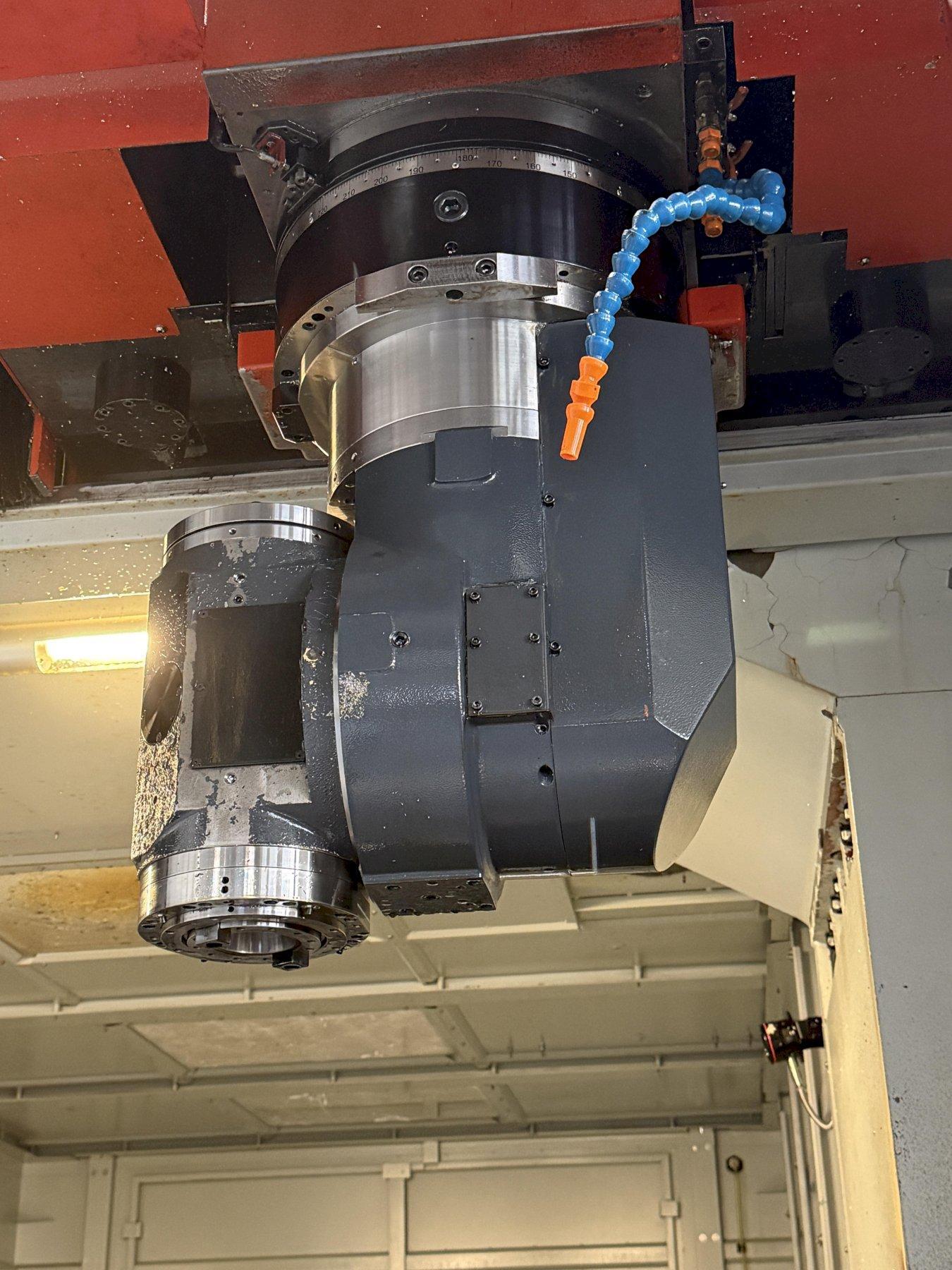

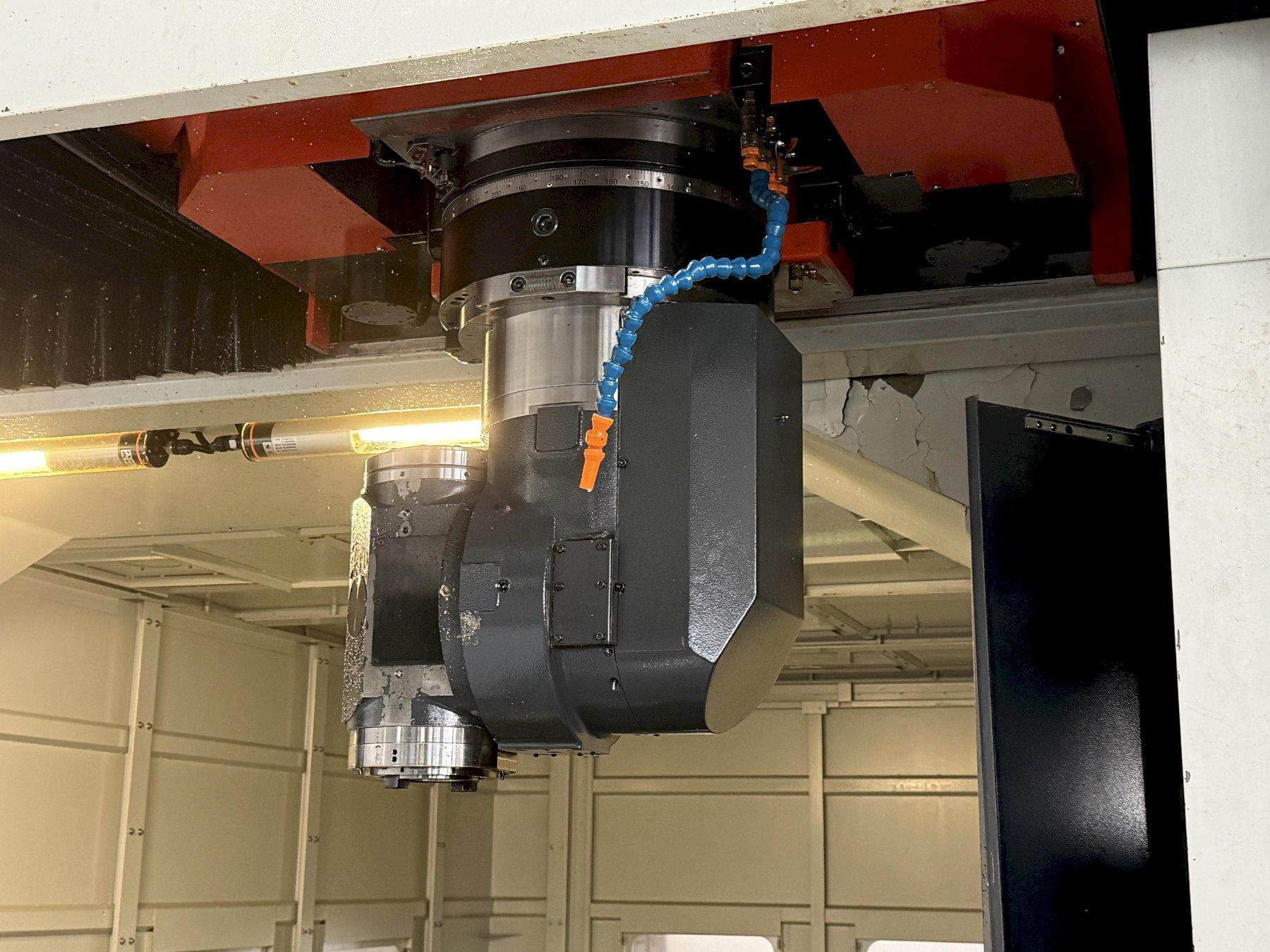

17) Universal Head – Automatic Head & Tool Change
a. 4500 RPM
b. Programmable Index 1.0 degree
18) Extension Head – Automatic Head & Tool Change
a. 6000 RPM
19) Deublin Rotary Union “Spindle Shield” System
20) 1,000 PSI Through Spindle Coolant – Programmable Variable Pressure Unit
21) Keller Mist Collect Unit – ENA/S
22) Marposs MIDA Laser 75 295 mm kit
23) Marposs WRP60P/SP/CAT 50 kit

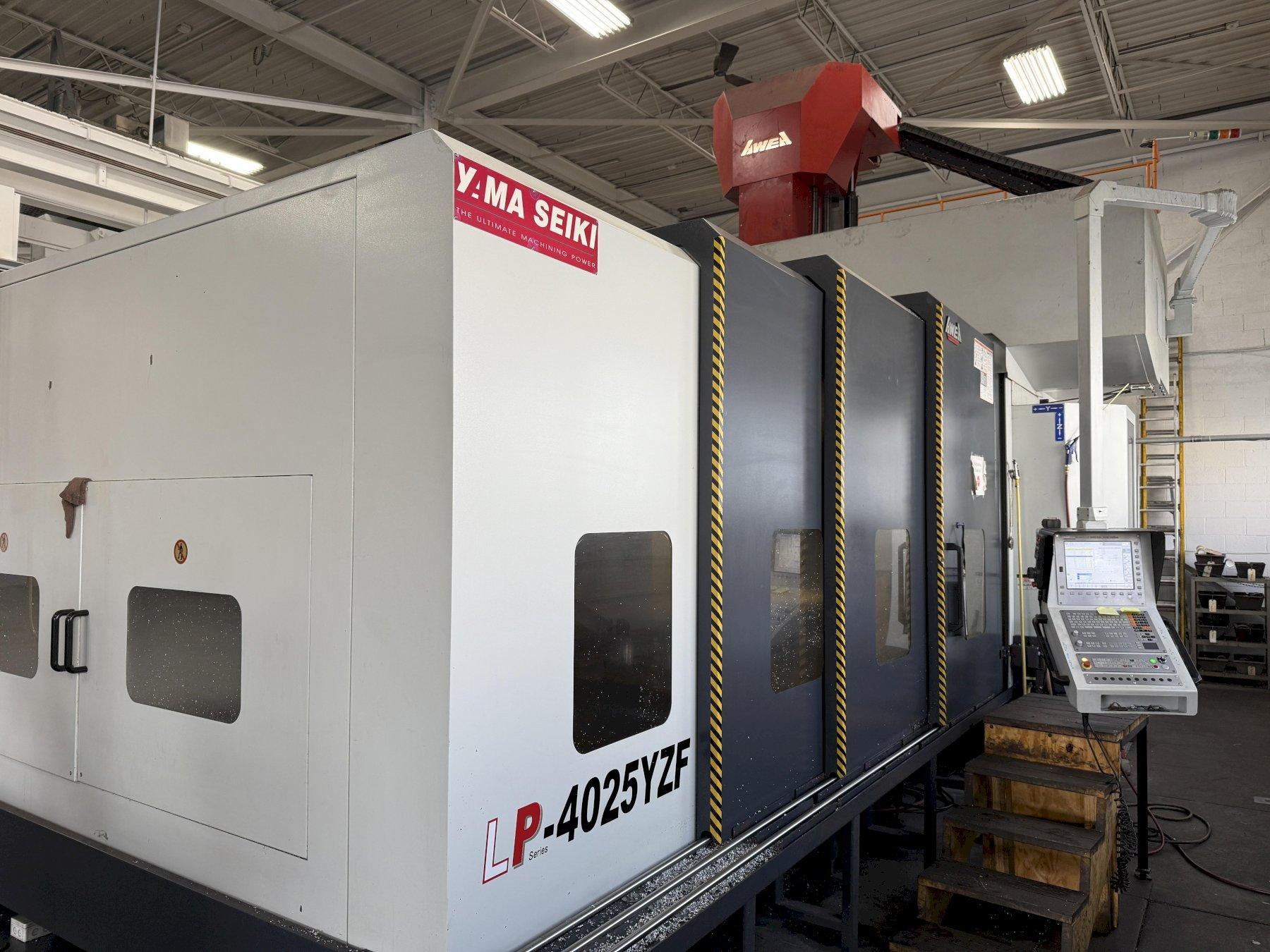

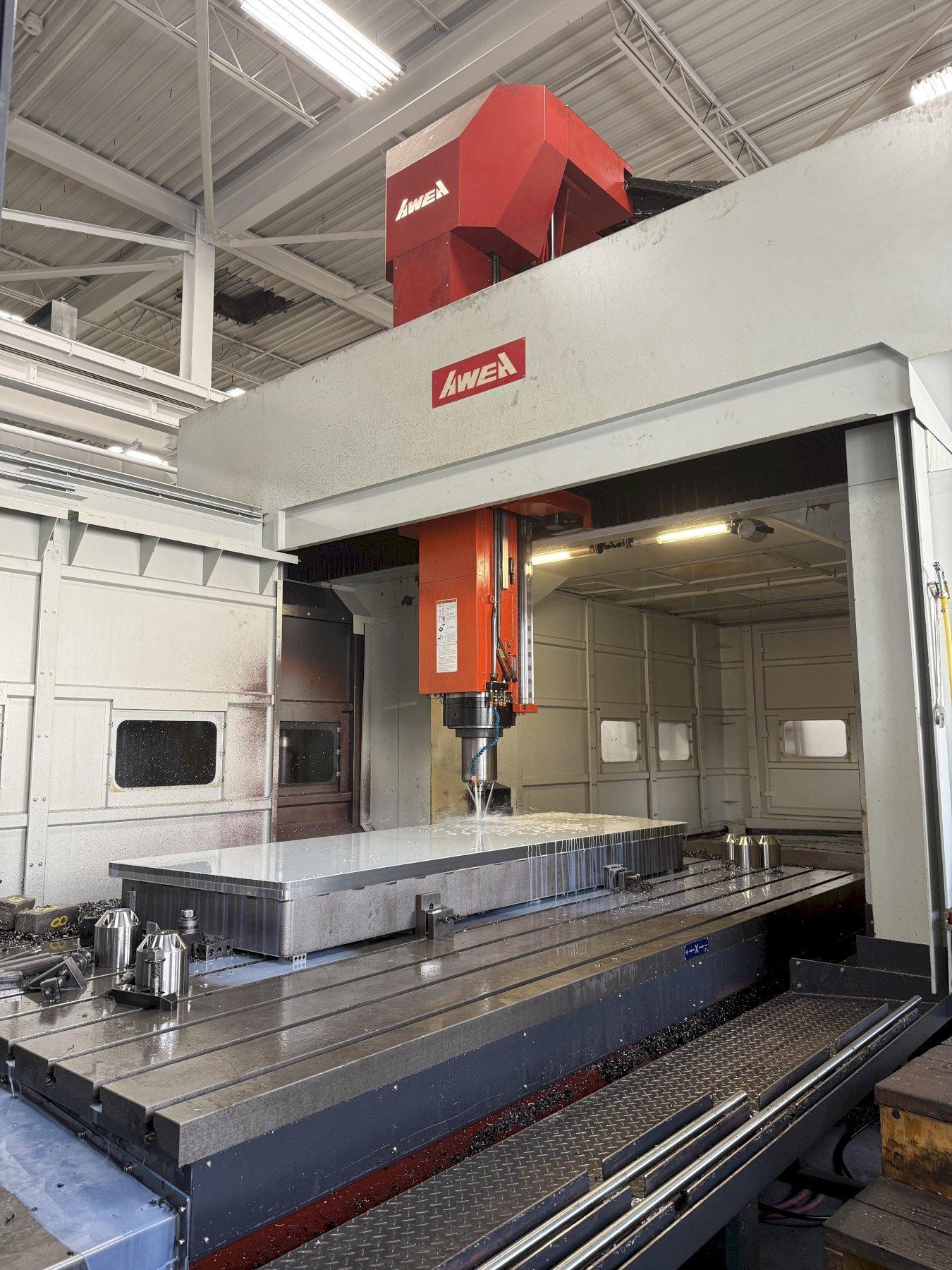

* The Awea LP series equipped with a high flexibility automatic head changer and a vertical / horizontal ATC system to provide full automation 5-face machining capability.

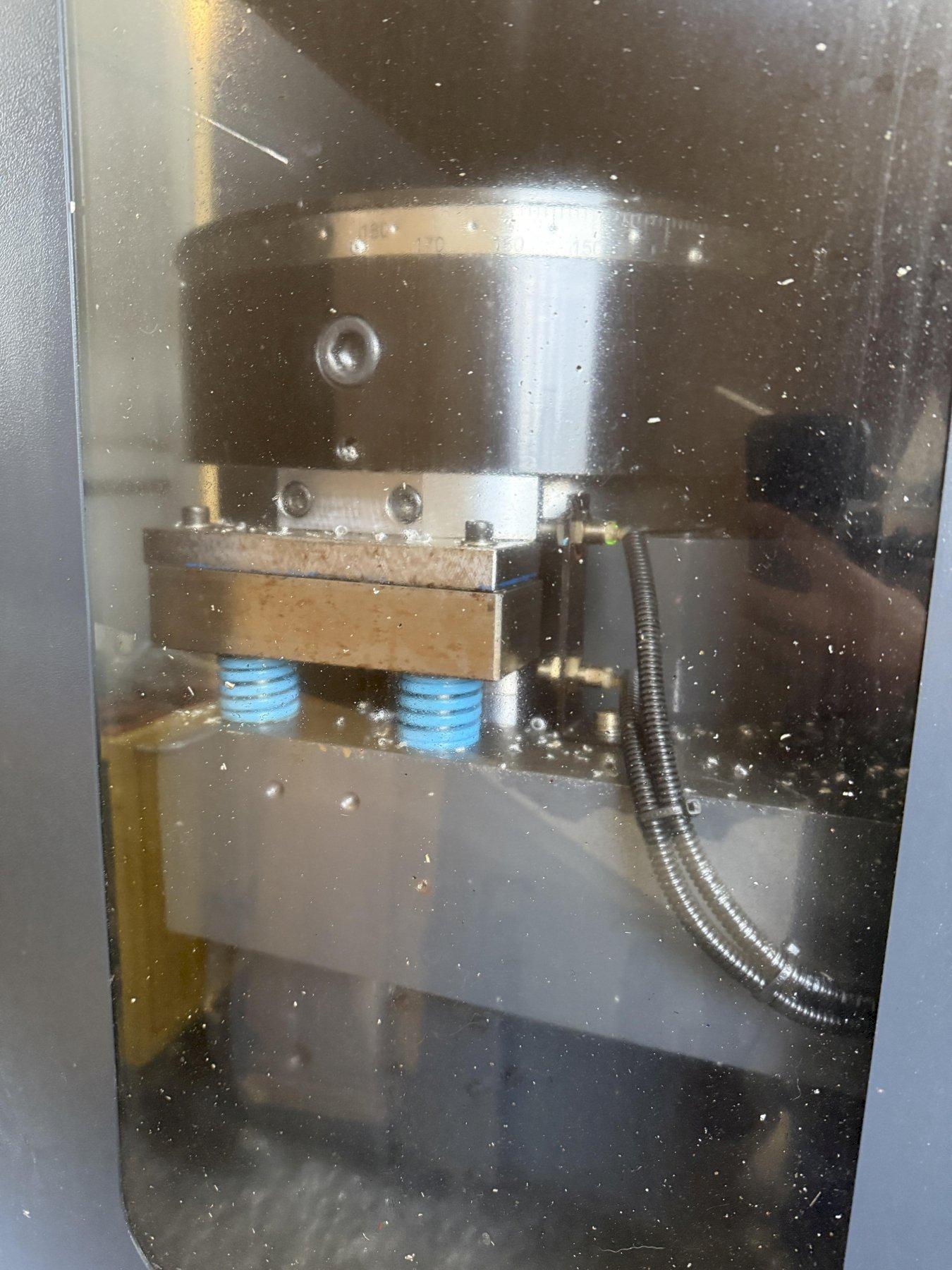

* The optional automatic head storage magazine provides two cabinets with independent swing doors for each cabinet to avoid contamination during head changes. Linear guide ways enable quick head changes to reduce non-cutting time.
* The vertical / horizontal ATC system provides quick tool change with sensors and sequence scanning to ensure safety and reliability
