Marvel 800A PC3S 60 - Saws, Band, Vertical

Solicitar presupuesto
Compartir Máquina
Especificaciones Imprimir especificaciones
Modelo: 800A PC3S 60
Año: 2013
Número de Inventario: MD0513
Yes
Tipo: Saws, Band, Vertical
Fabricante: Marvel
Características Destacadas:
Tilting Column
Automatic Bar Feed with 72" Stroke Length
Work Rest Rollers on infeed and outfeed sides of Table
Hydraulic Vice (Servo Driven, Encoder Feedback, Double Ball Screws)
Marvel PC# Programmable Control (PLC)

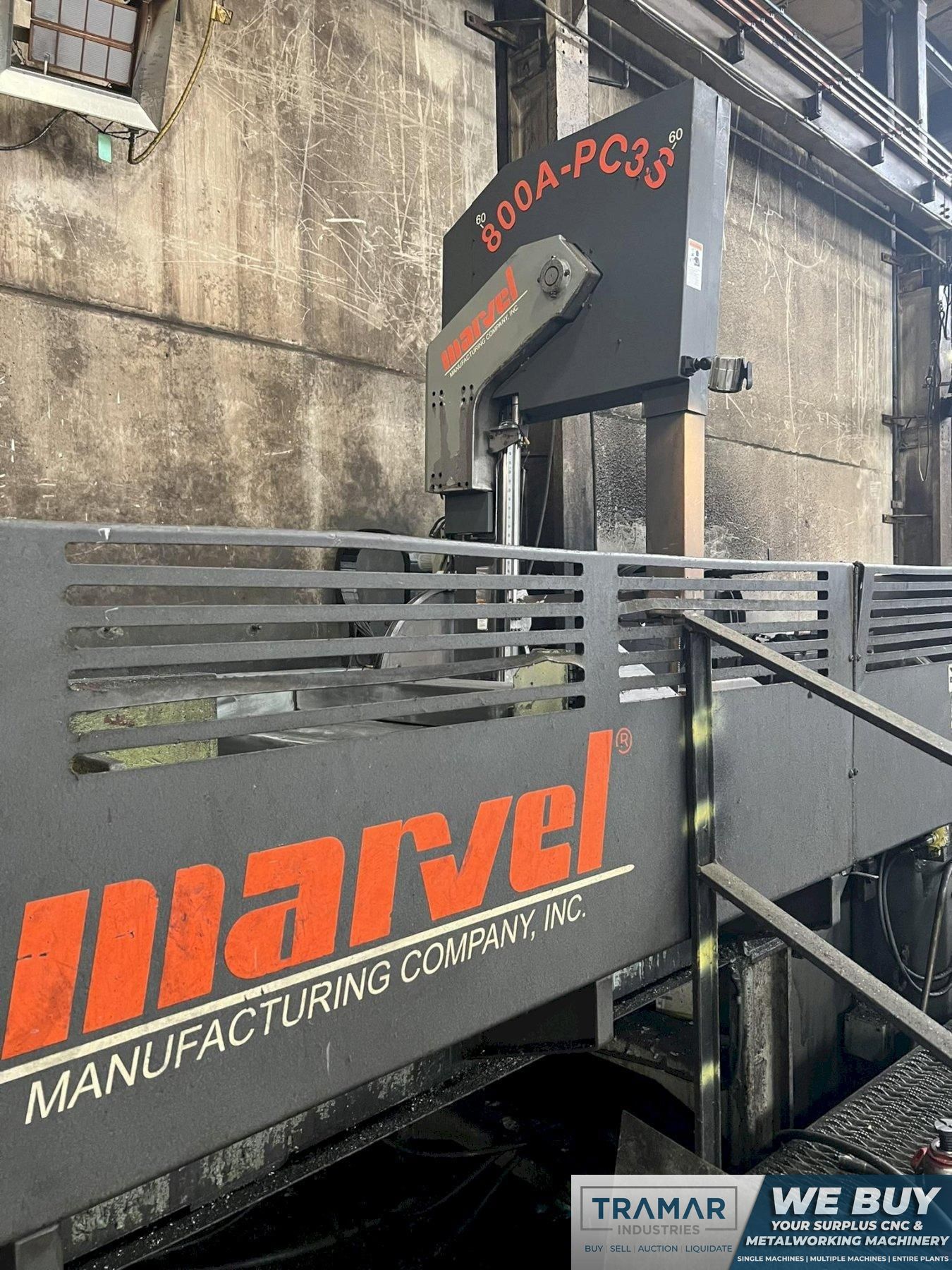

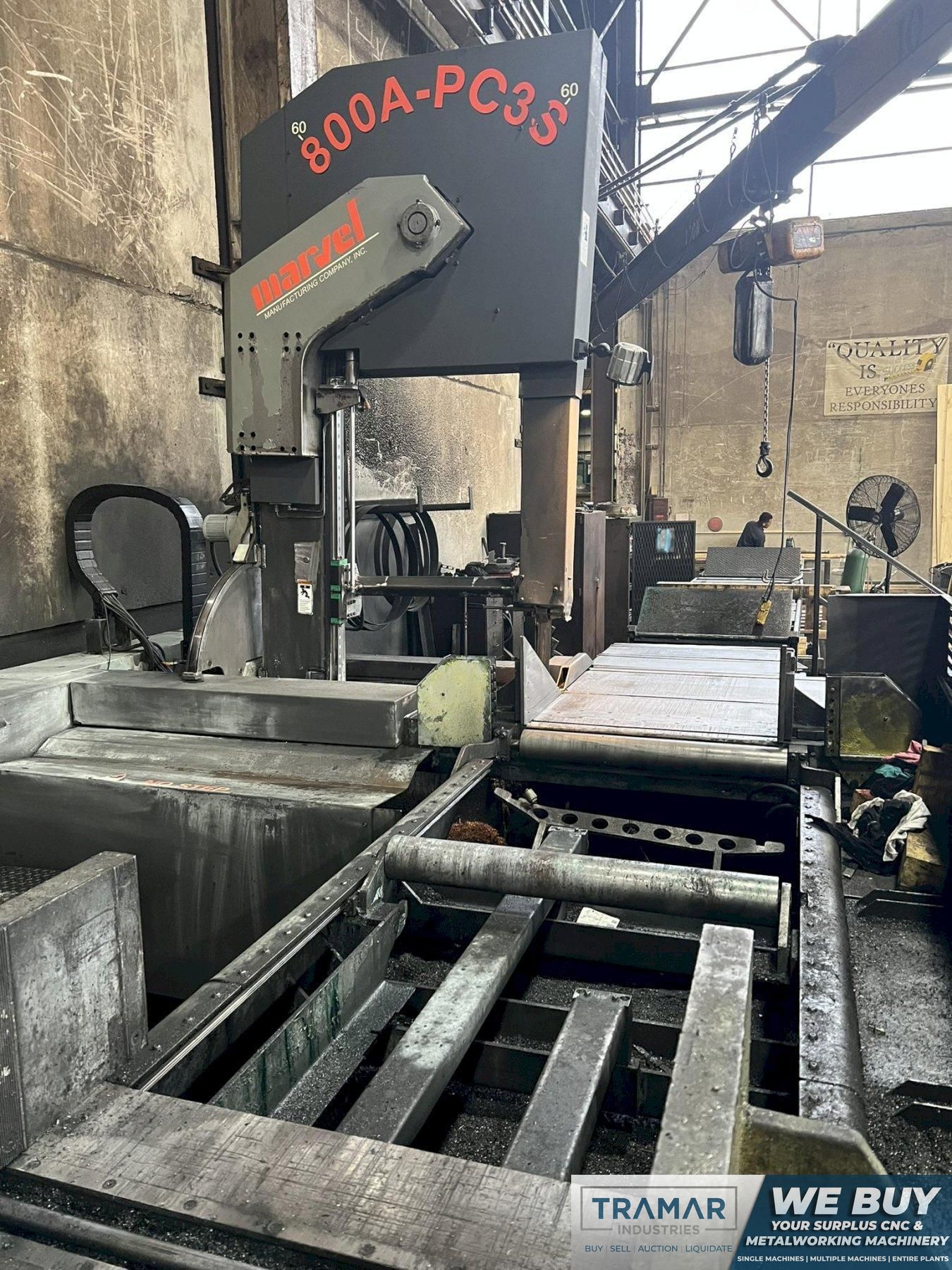

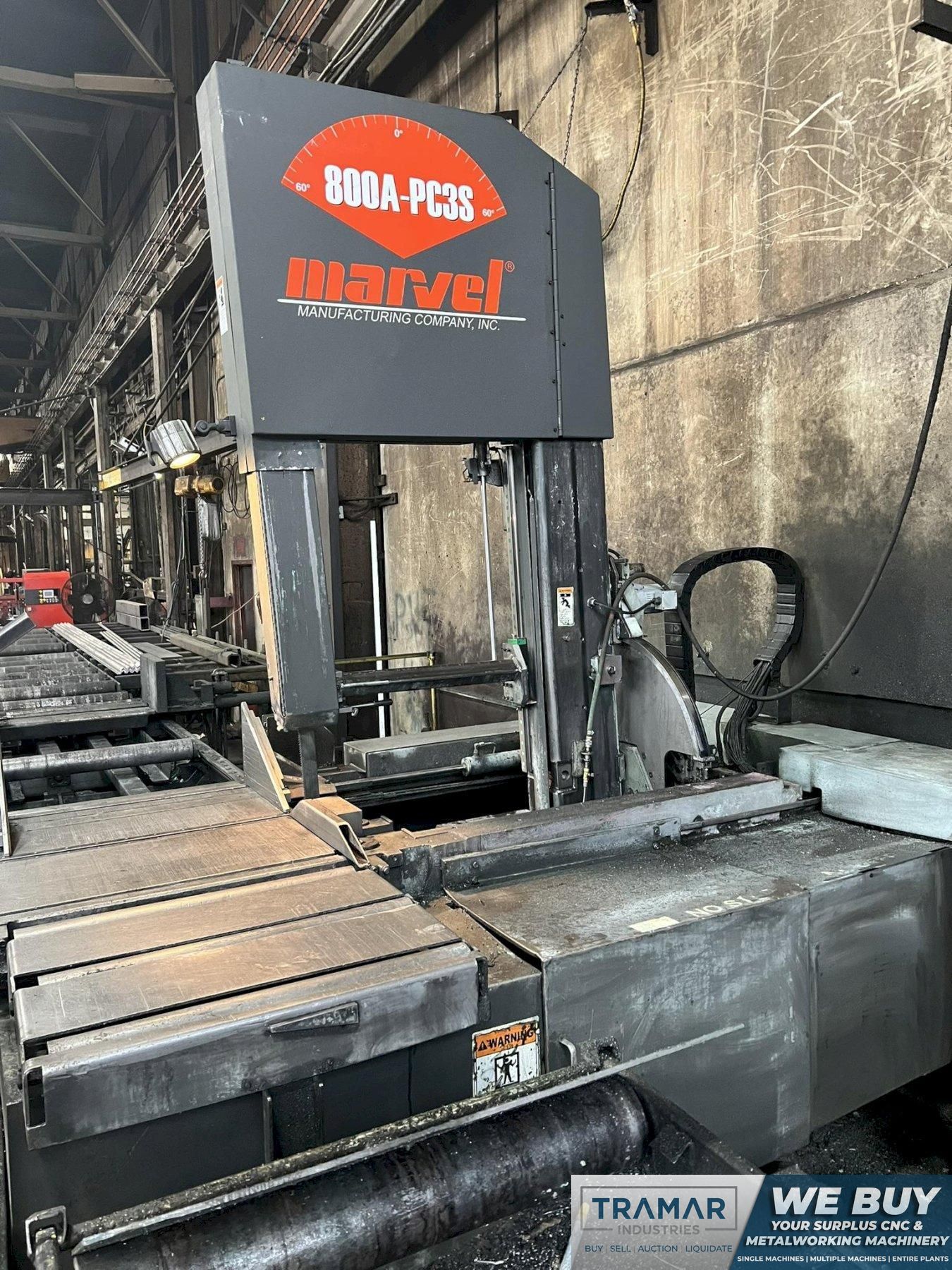

2013 Marvel Model 800A PC3S 60 Vertical Tilt Frame Saw For Sale
Especificaciones
Año
2013
Tipo ( Automatico, Manual o semi automatico)
automatic
potencia
15 horsepower
Ancho de la hoja
2"
Blade Length
25 feet
Max Cutting Capacity (90° Round)
31.25" x 31.25"
Max Cutting Capacity (45°)
31.25" x 25.5"
Max Cutting (60 Deg)
31.25" x 16"
Blade Speed
60-400 FPM

Equipado con:

Tilting Column
Automatic Bar feed with 72" Stroke Length
Work Rest Rollers on infeed and outfeed sides of Table
Hydraulic Vice (Servo Driven, Encoder Feedback, Double Ball Screws)
Marvel PC# Programmable Control (PLC)
Graphic Part Programming
8" Color Touchscreen Display
Coolant System
Combination Carbide and Ball Bearing Roller Blade Guides
Hydraulically Controlled Blade Tension
Power Chip Conveyor
