Equipped with:
- Fanuc control
- Automatic tool changer (24 stations)
- Coolant tank and pump
- Dual speed gearbox
- Remote manual pulse generator (MPG)
2013 - Quick Load Servo S3L
Bar Diameter: 1/4” to 4-3/4” (5 mm to 120 mm)
Bar Length: 5” to 63”

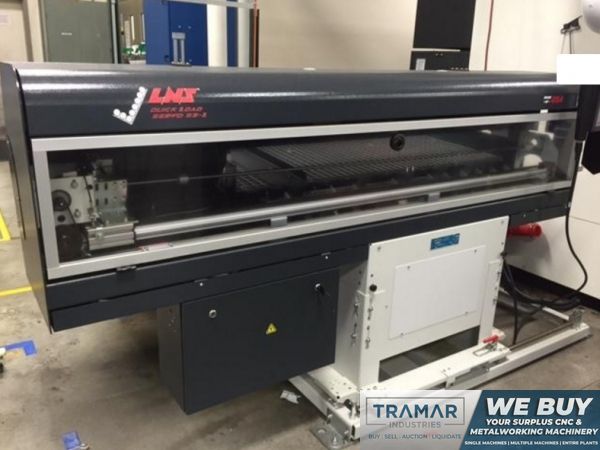

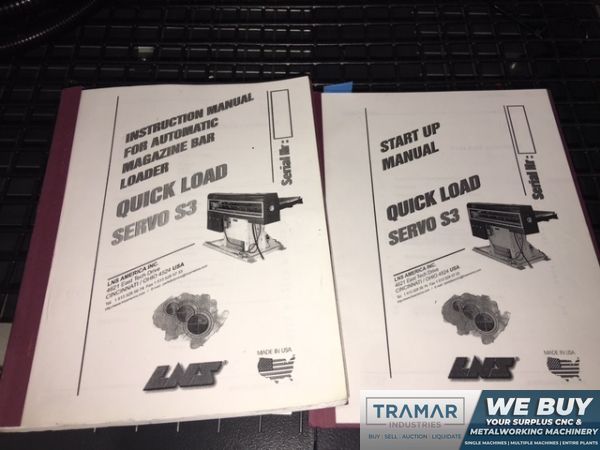

Quick Load Servo S3-L
For long headstock or deep recessed spindle
Bar Diameter: 3/8” to 4-3/4” (9 mm to 120 mm)
Not to exceed overall length of spindle
Features:
• Patented loading mechanism
• “V” roller supports for friction free bar stock loading
• Linear ways permit feed rates up to 4,000 IPM

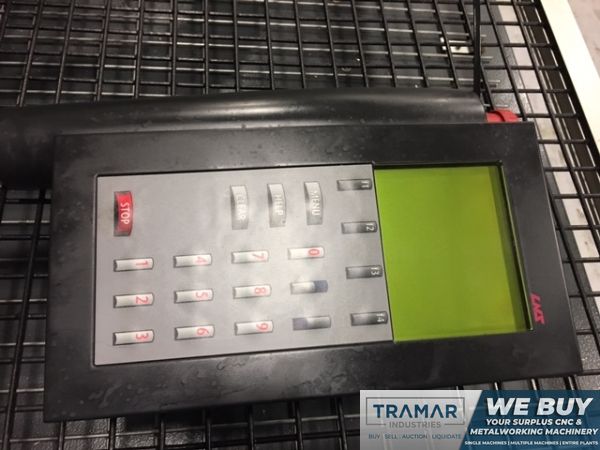

• Prompting remote control, menu driven, guides you through
setup
• 15 seconds for partial changeover within the pusher range
• 1 minute or less for complete changeover

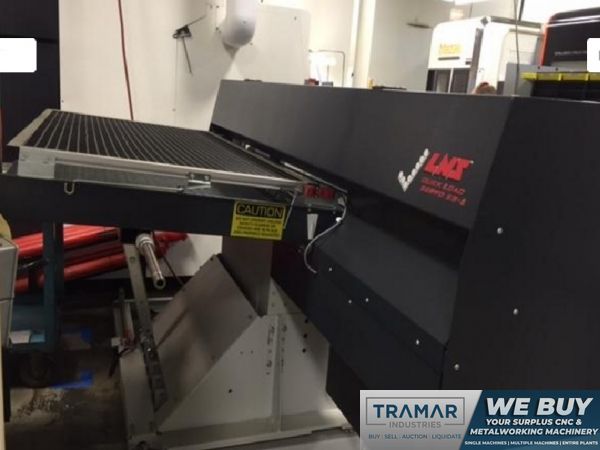

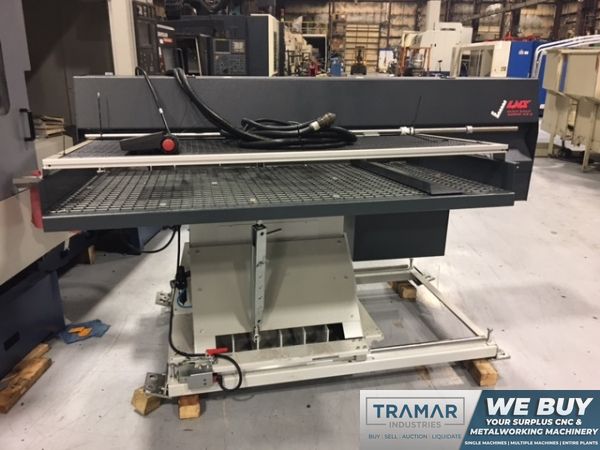

• 39” (1000 mm) wide magazine tray capacity
• Servo drive with absolute encoder
• Automatic torque and speed adjustment
• Automatic bar diameter adjustment for bar selection fingers and
centerline alignment
• Feed to part length with or without turret assistance
• Sub-spindle and traveling spindle applications
• 15 seconds bar reload time preloads while machining the last
part
• Optional one-shot shaft loading 4 seconds loading time
• 23” (580 mm) X- or Z- axis retract
• Three pushers to cover entire range of the barfeed
• Front or rear load
• 1,750 lbs
Machine Dimensions 108 x 60 x 58
Travel (Y) #
