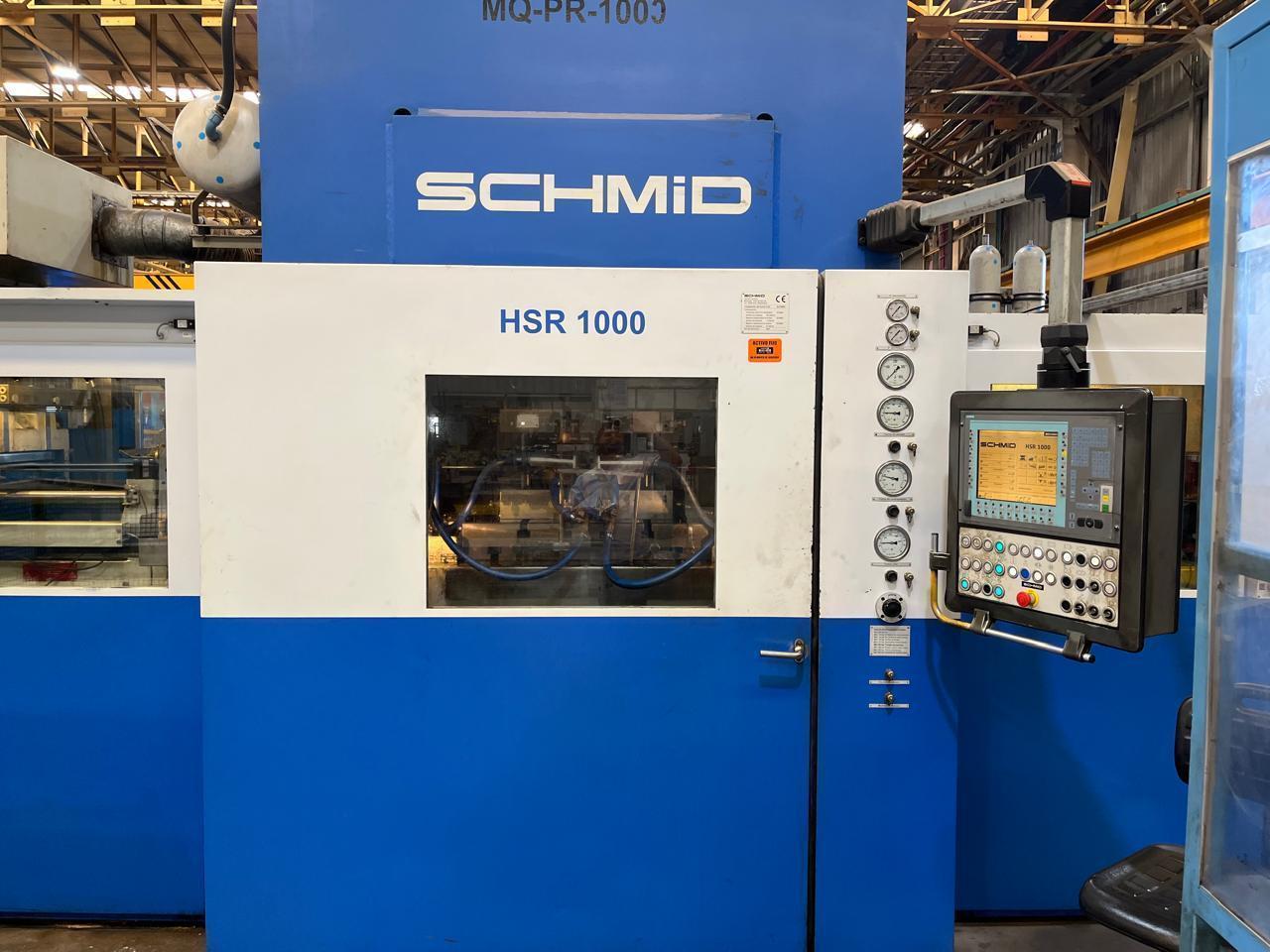

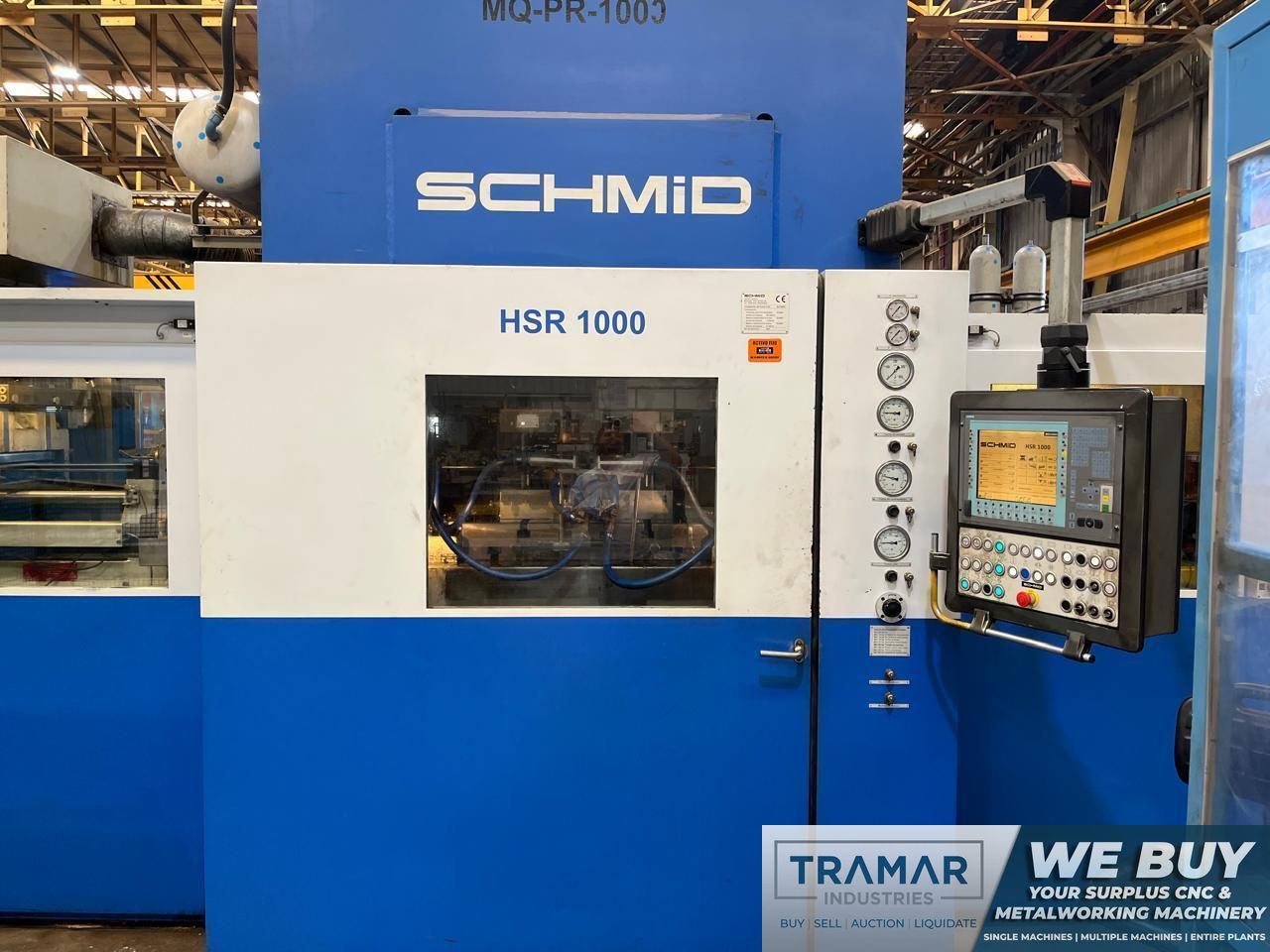

Schmid HSR 1000 Ecoline - Presses, Fine Blanking

Solicitar presupuesto

Compartir Máquina

Especificaciones Imprimir especificaciones

Modelo: HSR 1000 Ecoline

Año: 2007

Número de Inventario: MD1000E

Tipo: Presses, Fine Blanking

Fabricante: Schmid

Características Destacadas:
Equipped With:
Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection (By Pressure Editable in Operator Panel)
Tool Protection Inside the Cut
External Tool Protection
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls

2007 Schmid 1000 Ton Fine Blanking Press Line For Sale

Equipado con:

Equipped With:

Piston Stop: CNC Type Automatic Hydraulic Positioning

Automatic Hydraulic Tool Clamping

V-Ring: Hydraulic Regulation

Tool Verification Protection (By Pressure Editable in Operator Panel)

Tool Protection Inside the Cut

External Tool Protection

Automatic Loop with Ultrasonic Sensor

Siemens PLC and Controls

Especificaciones

Pulgadas

Metric

Especificaciones

Año

2007

Tonelaje

1,000 tons

Tipo de Control CNC

Siemens

Table Dimensions

35.43 in x 35.43 in

Maximum Tool Height

16.54 in

Minimum Tool Height

12.60 in

Total Force

100-10,000KN

Stamping Force

50-4,000KN

Counter Force

50-1,600KN

Cut Speed

0.3937–1.5748 in/sec

Pieces a Minute

8-18 Pieces

Cut Stroke

0–1.18 in

Total Stroke

0.079–8.071 in

Thickness Range

0.079–0.472 in

Width Range:

3.15–20.47 in

Coil OD Range

31.50–68.90 in

Coil ID

19.69 in

Max Coil Weight

13,228 lbs

Equipado con:

Equipped With:

Piston Stop: CNC Type Automatic Hydraulic Positioning
Automatic Hydraulic Tool Clamping
V-Ring: Hydraulic Regulation
Tool Verification Protection (By Pressure Editable in Operator Panel)
Tool Protection Inside the Cut
External Tool Protection
Automatic Loop with Ultrasonic Sensor
Siemens PLC and Controls
