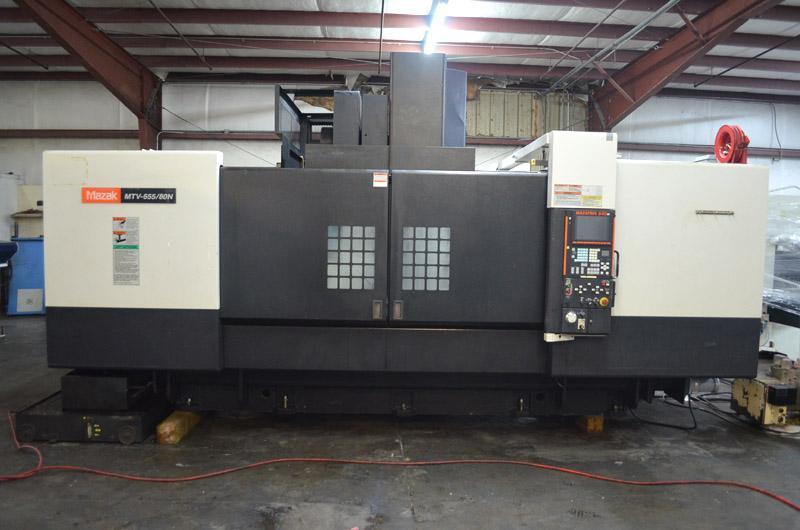

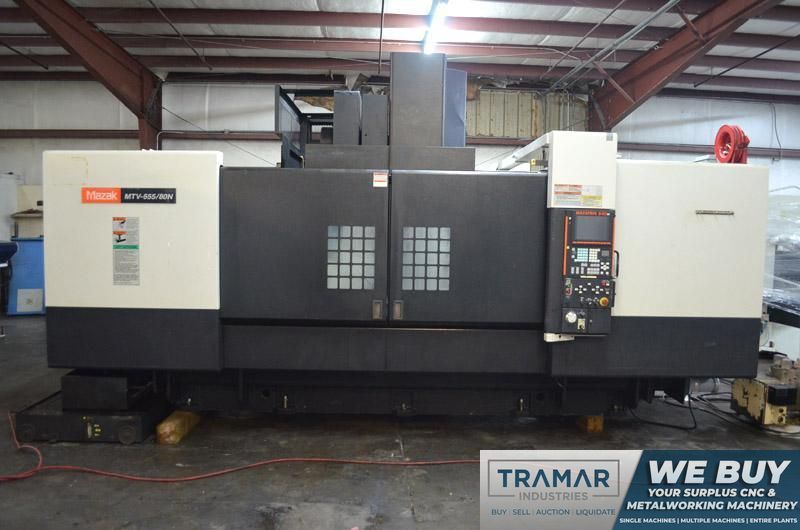

Mazak MTV-655/80N - Centros de Máquinado Verticales

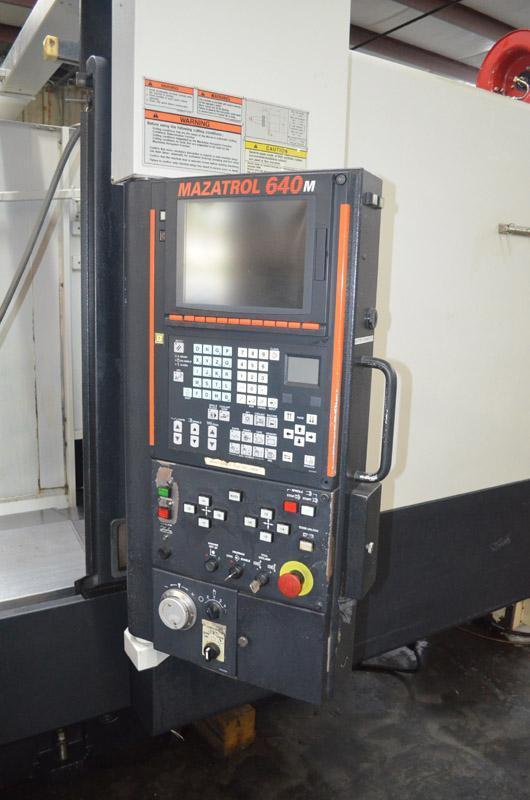

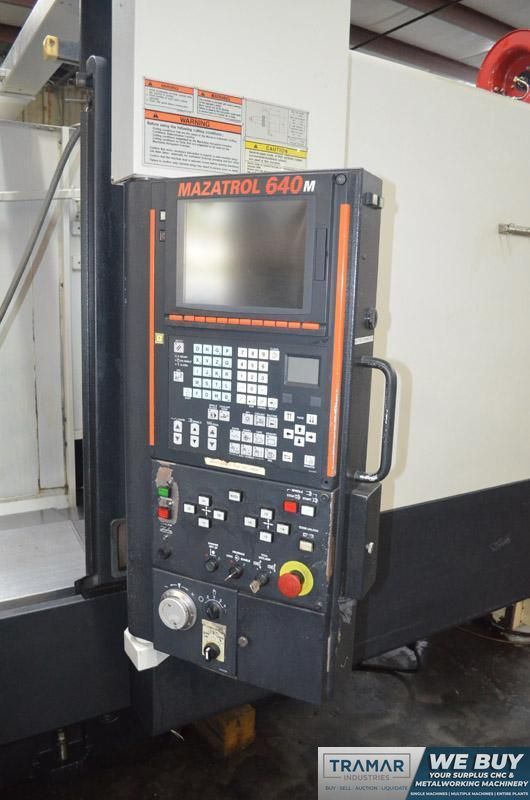

• Fusion 640M CNC Control


• Mazatrol and EIA/ISO Programming Language


• 10.4 inch color TFT


• I C Memory Card Interface(Download/Save Only)


• Adaptive Feed Rate Control


• Tool Life Monitoring


• Tool Breakage Recovery


• Synchronized Tapping


• Background Tool Path Check


• 4^th / 5^th Axis Ready


• Auto Tool Length Measurement


• Cybertec CNC Optional Package


• Network Interface (For LAN & Modem)


• Inch/Metric Conversion


• 30 Tool Chain Magazine


• Prep for MMS-B Inductive Type MP3


• 25HP / 6000 RPM #50


• Windows 2000 Operating System for Mazak Machine Control


• Workpiece Air Blast


• Hi-Press. Coolant Thru Sys @ 213 PSI


• Raised Column by 7.81” (200mm) 15.7”-41.2”


• Chip Conveyor Rear Disp (Hinge/For Iron)

  TSUDAKOMA Model TN-320 5-Axis Trunnion Table:

S/N# : 060230
Table Dia. - 12.6”
Table Height -- 14” @ 0 deg.
Max. Table RPM – 16.6
Working Weight on Table – 220 lbs
Approx Table Weight – 968 lbs
