Additional Specifications
Turning Diameter Lower Turret: 11.6"
Swing Over Cross Slide: 20.1"
Travel (X) Lower Turret: 9.3"
Travel (Z) Lower Turret: 19.3"
Travel (B): 21.9"
C Axis Index: 0.001o
Spindle Nose: A2-6
Sub Spindle Chuck: Collet
Sub Spindle Speed: 6,000 RPM
ATC Capacity: 12 (Upper) / 8 (Lower)
Live Tooling Speed: 3,500 RPM
Equipped With

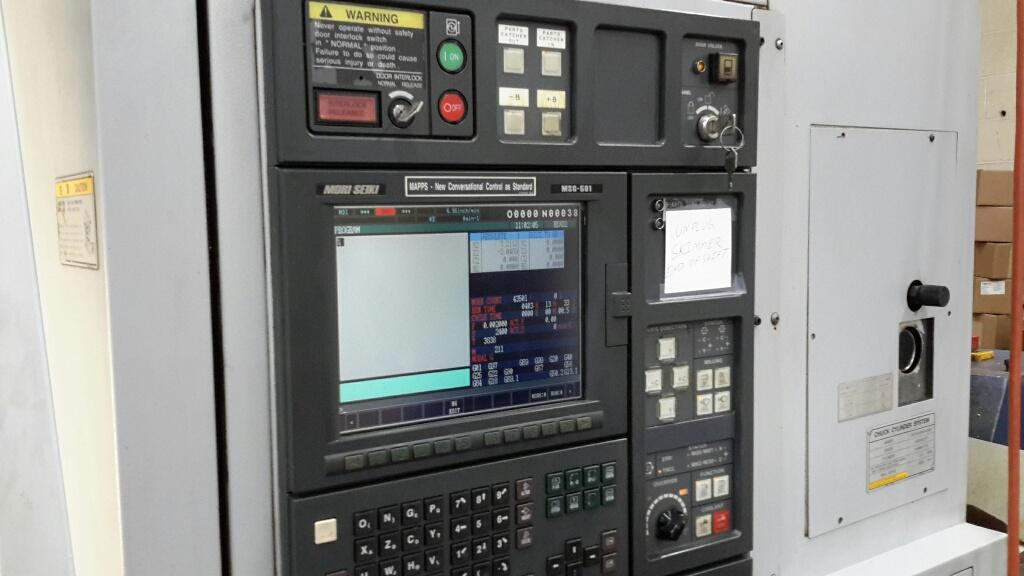

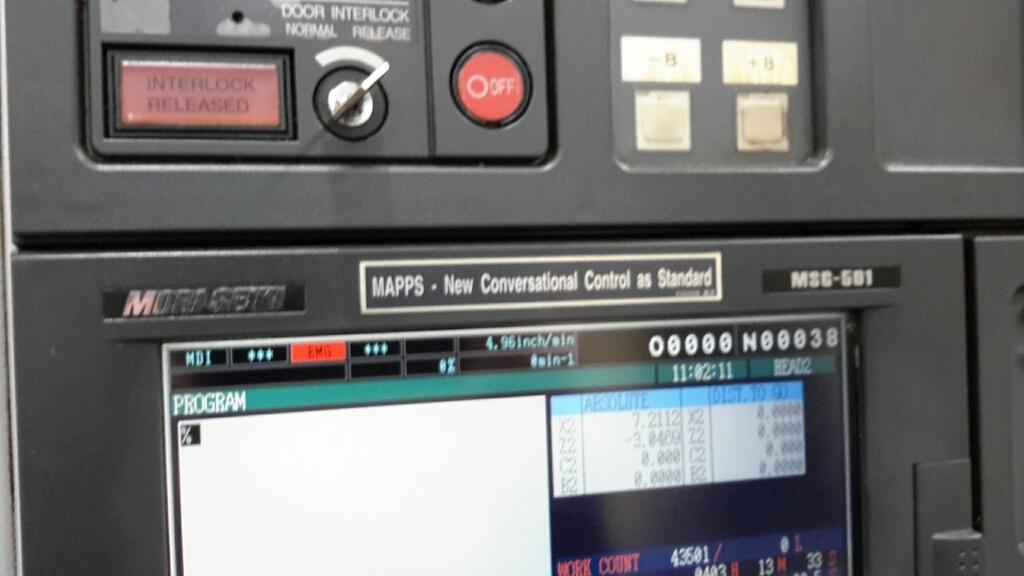

- MSG 501 CNC control
- Live Tooling
- Full C Axis on Main and Sub Spindle

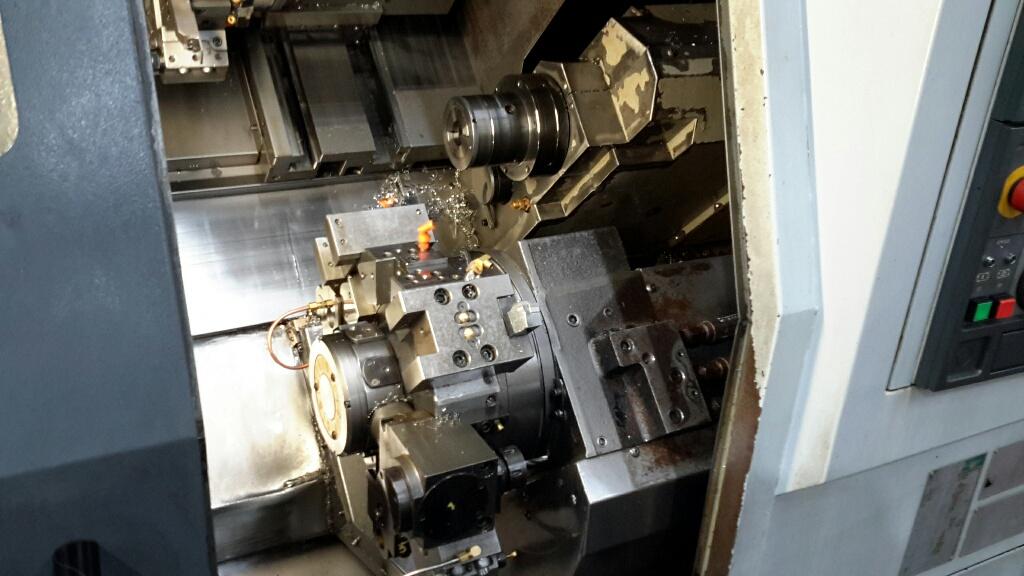

- Upper and Lower Turret

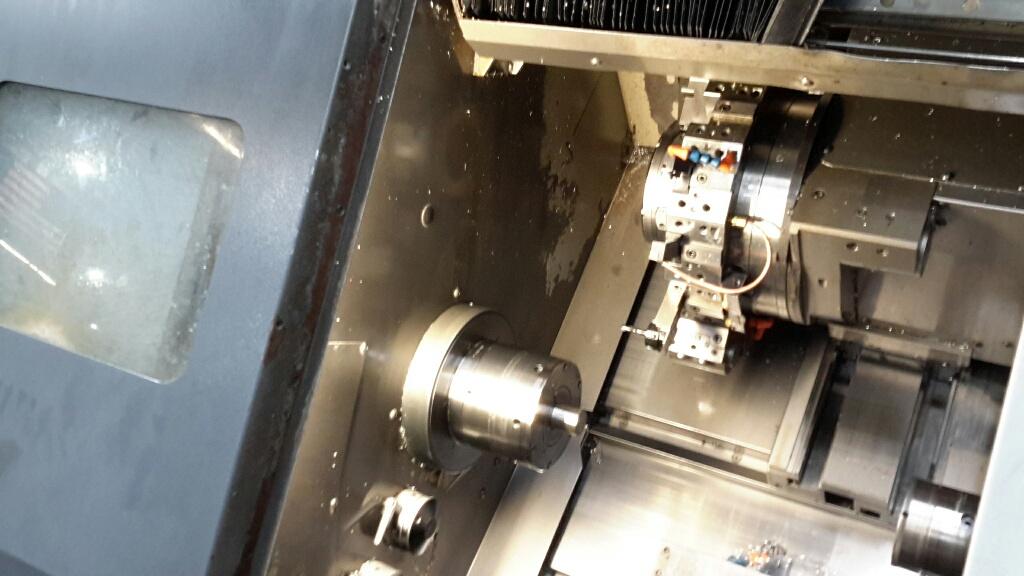

- Collet Chuck on Main and Sub Spindle

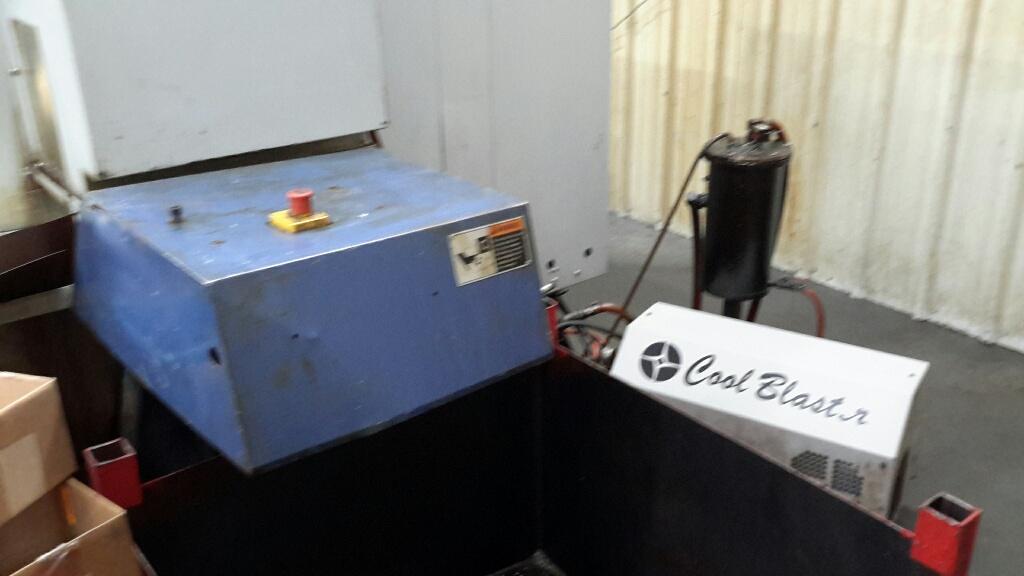

- Coolant Tank
- Chip Conveyor
- Bar Feeder (LNS)
